B0110

DTC B0110/43 Short in Side Squib RH Circuit

DESCRIPTION

DTC Detection Condition:

The side squib RH circuit consists of the center airbag sensor and the side airbag RH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0110/43 is recorded when a short is detected in the side squib RH circuit.

Wiring Diagram:

INSPECTION PROCEDURE

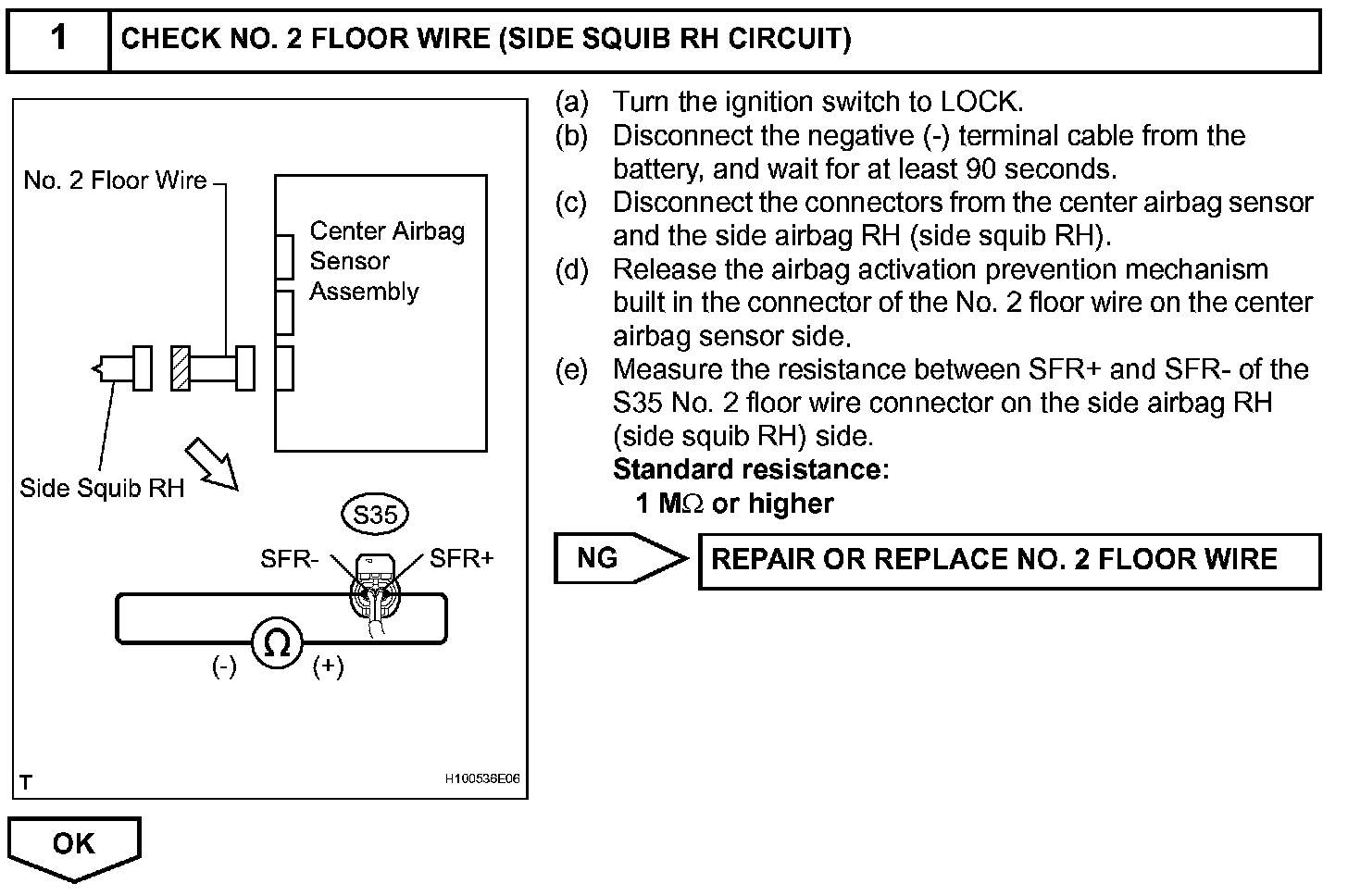

Step 1:

Step 2:

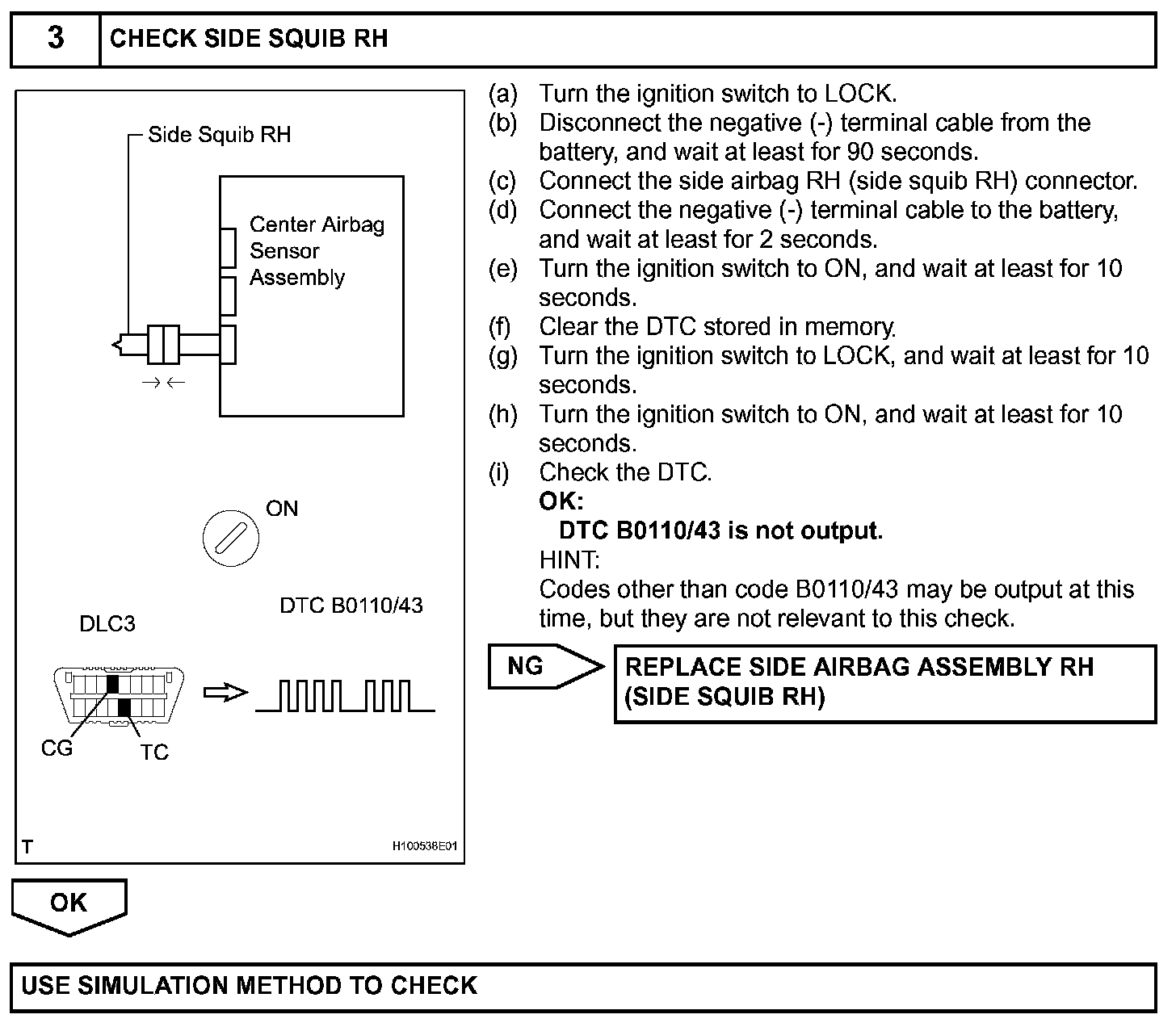

Step 3:
