B0111

DTC B0111/44 Open in Side Squib RH Circuit

DESCRIPTION

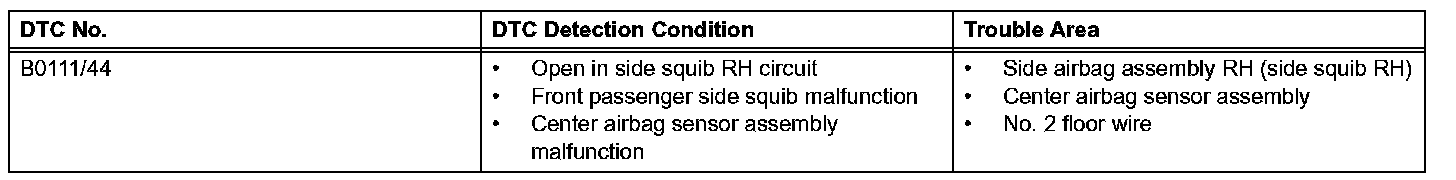

DTC Detection Condition:

The side squib RH circuit consists of the center airbag sensor and the side airbag RH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0111/44 is recorded when an open is detected in the side squib RH circuit.

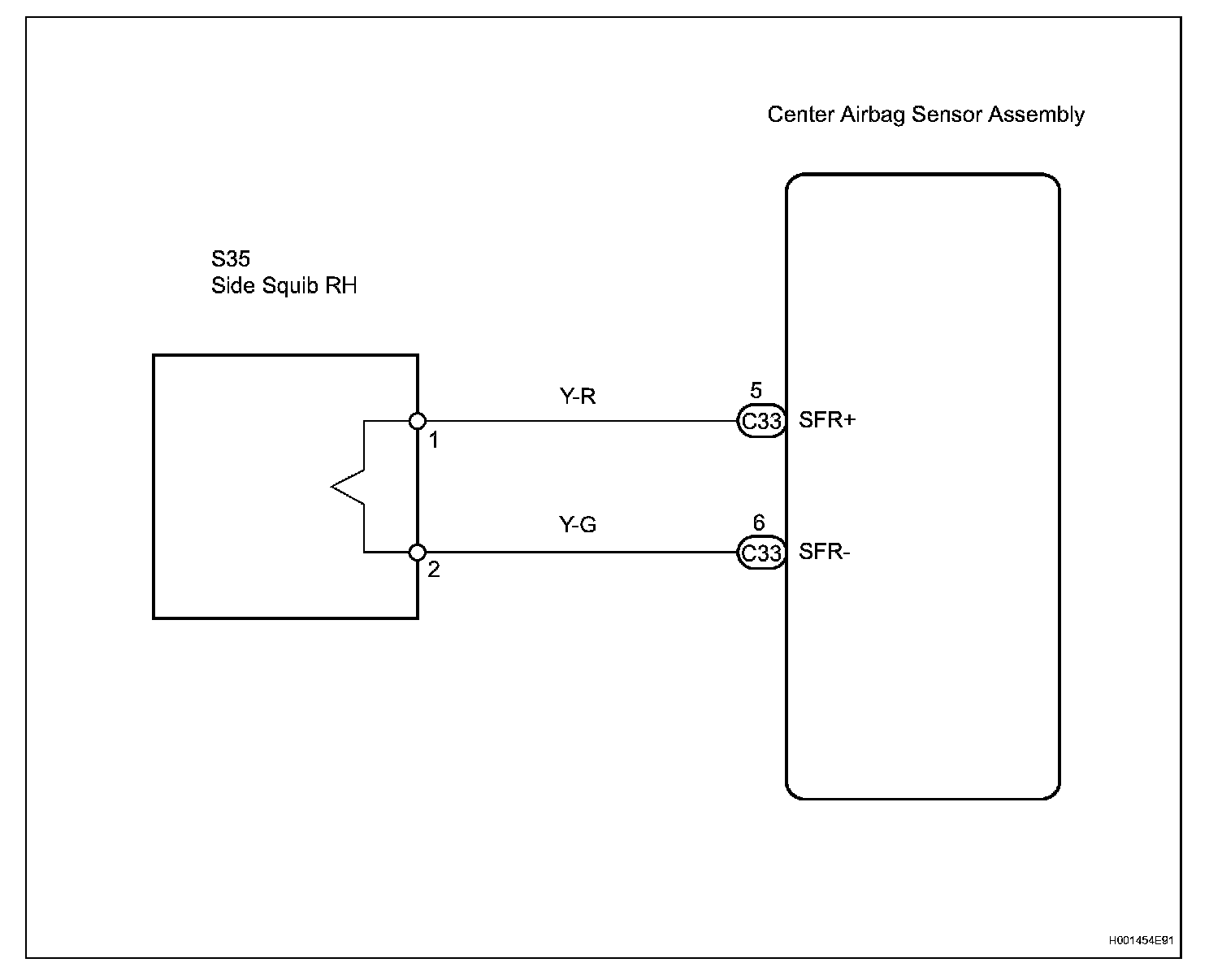

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:

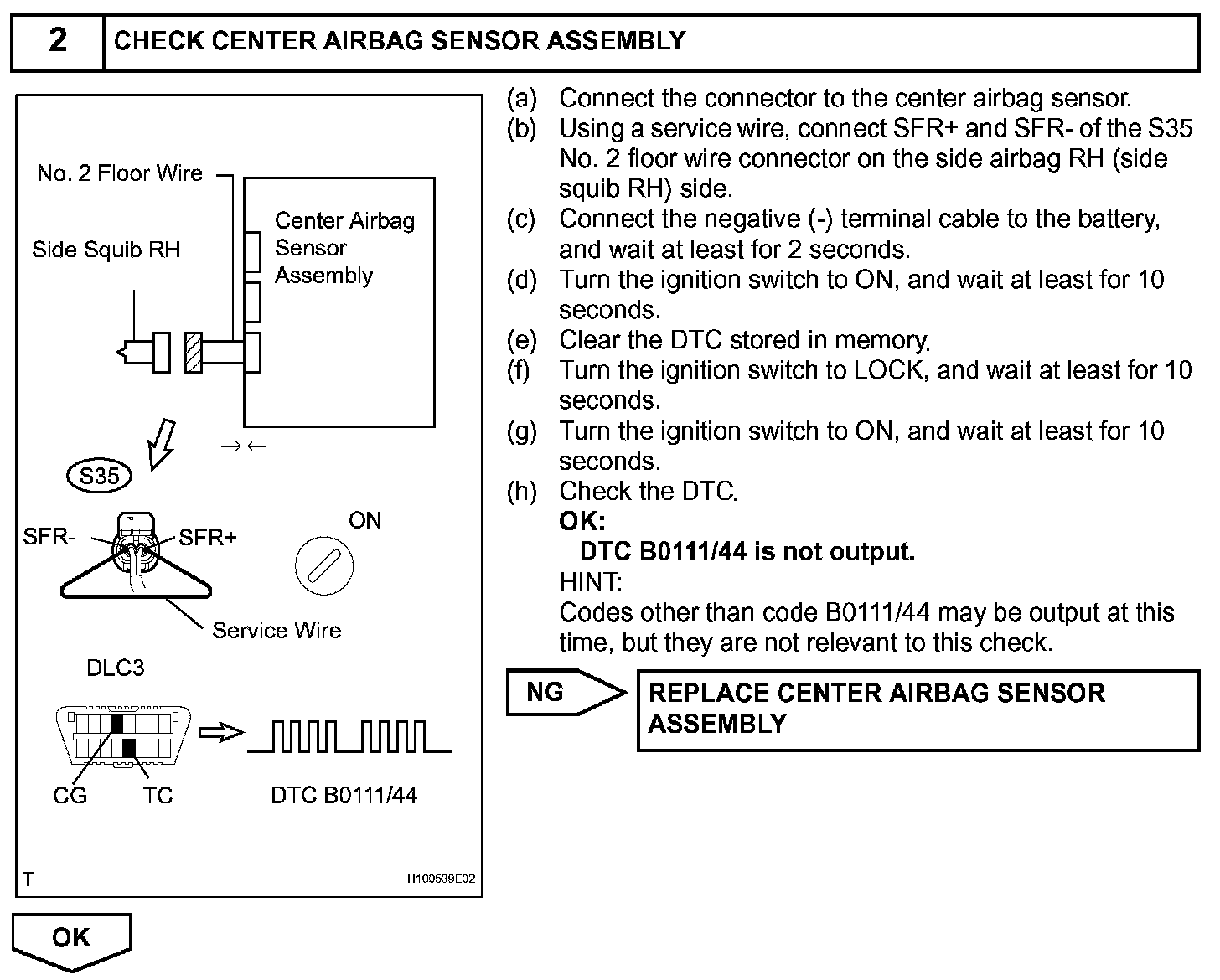

Step 2:

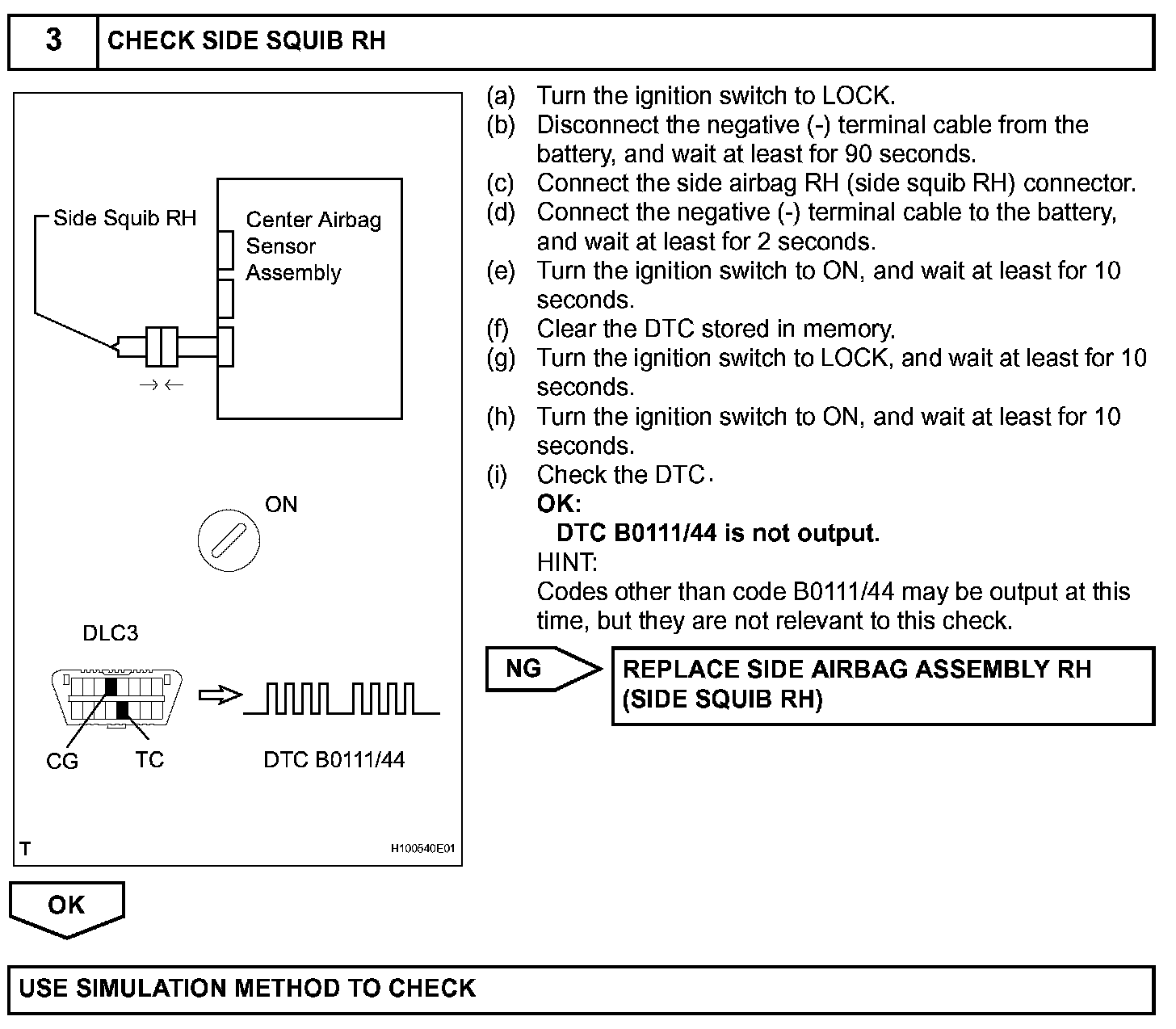

Step 3:
