B0112

DTC B0112/41 Short to GND in Side Squib RH Circuit

DESCRIPTION

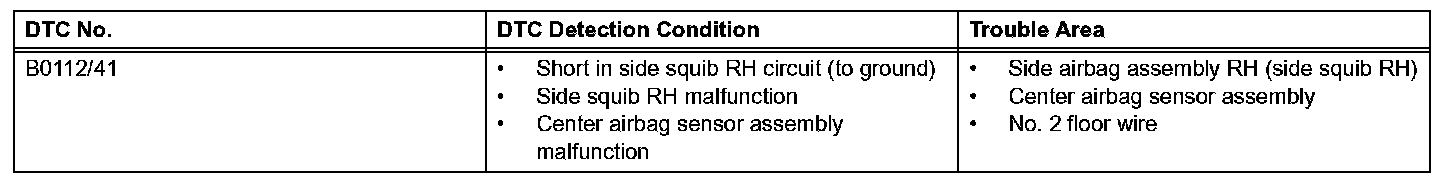

DTC Detection Condition:

The side squib RH circuit consists of the center airbag sensor and the side airbag RH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0112/41 is recorded when ground short is detected in the side squib RH circuit.

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:

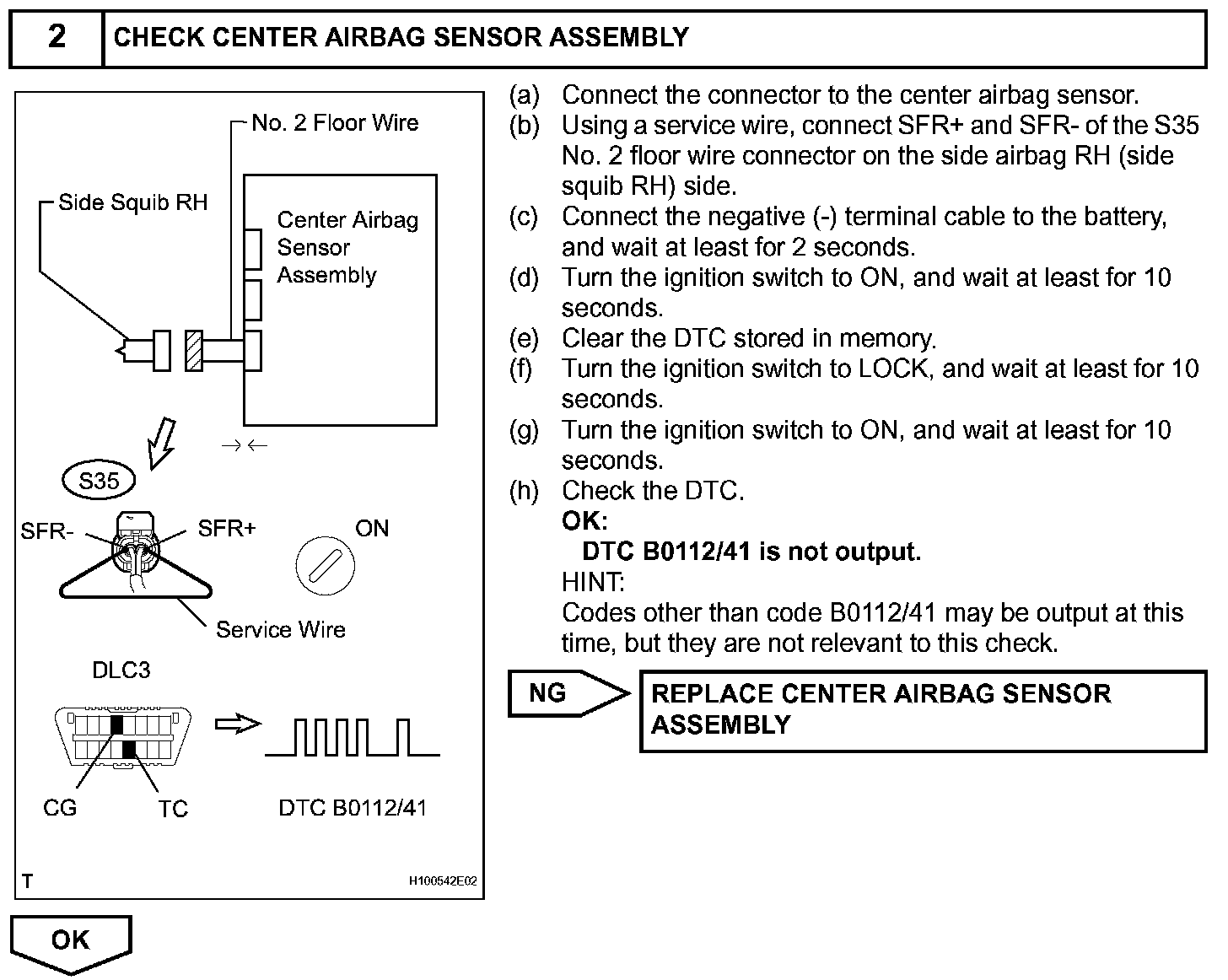

Step 2:

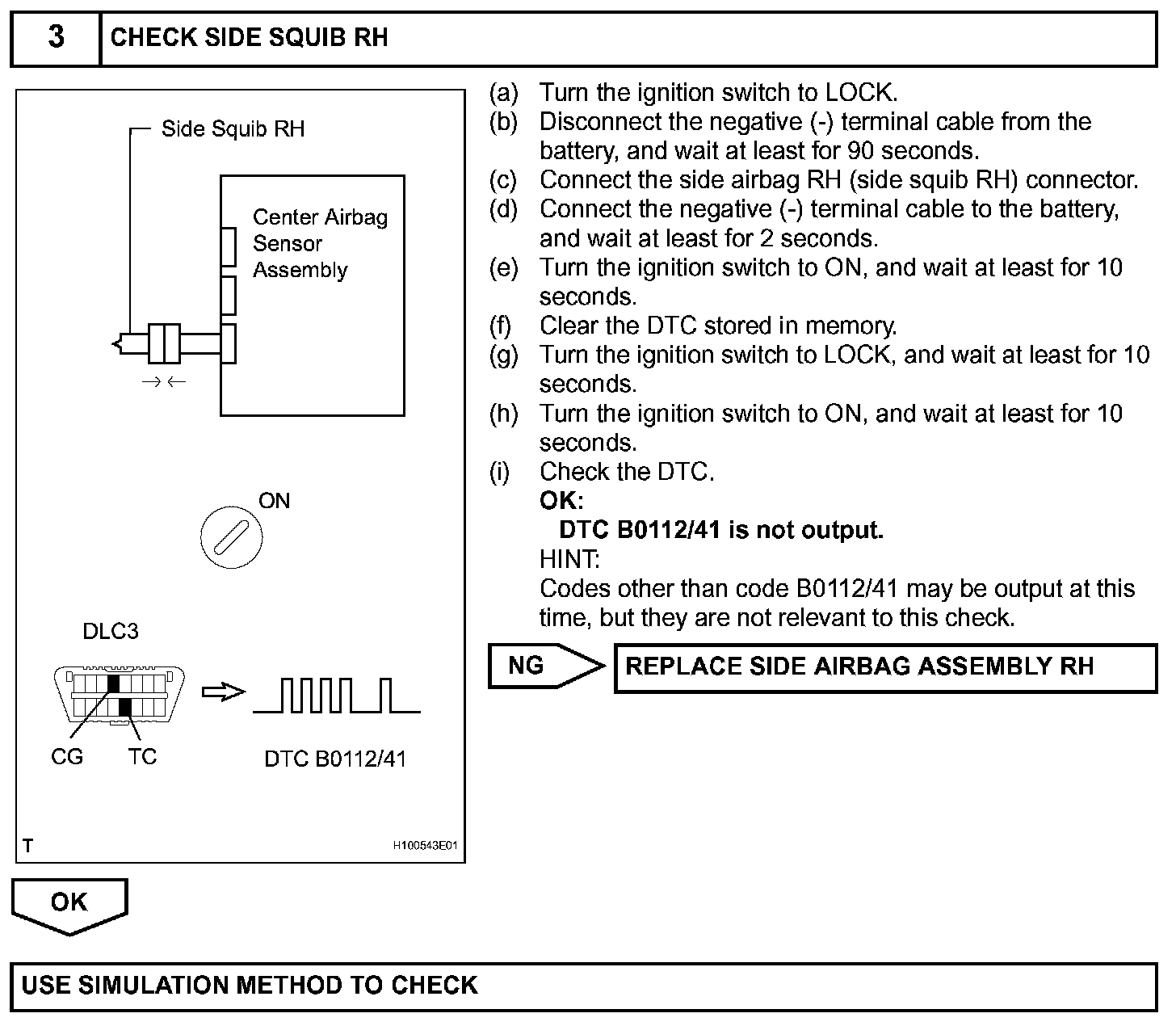

Step 3:
