B0113

DTC B0113/42 Short to B+ in Side Squib RH Circuit

DESCRIPTION

DTC Detection Condition:

The side squib RH circuit consists of the center airbag sensor and the side airbag RH.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0113/42 is recorded when a B+ short is detected in the side squib RH circuit.

Wiring Diagram:

INSPECTION PROCEDURE

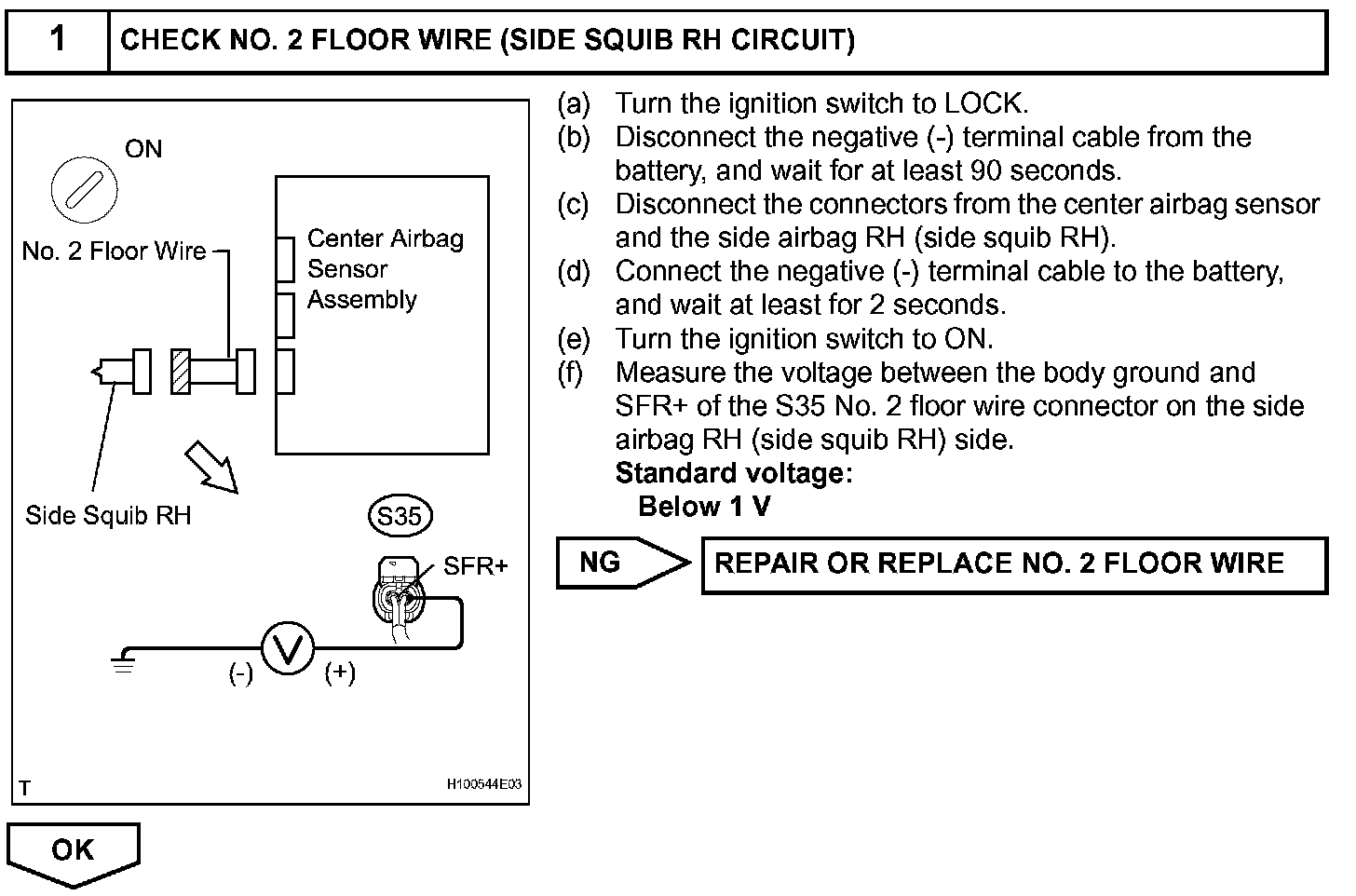

Step 1:

Step 2:

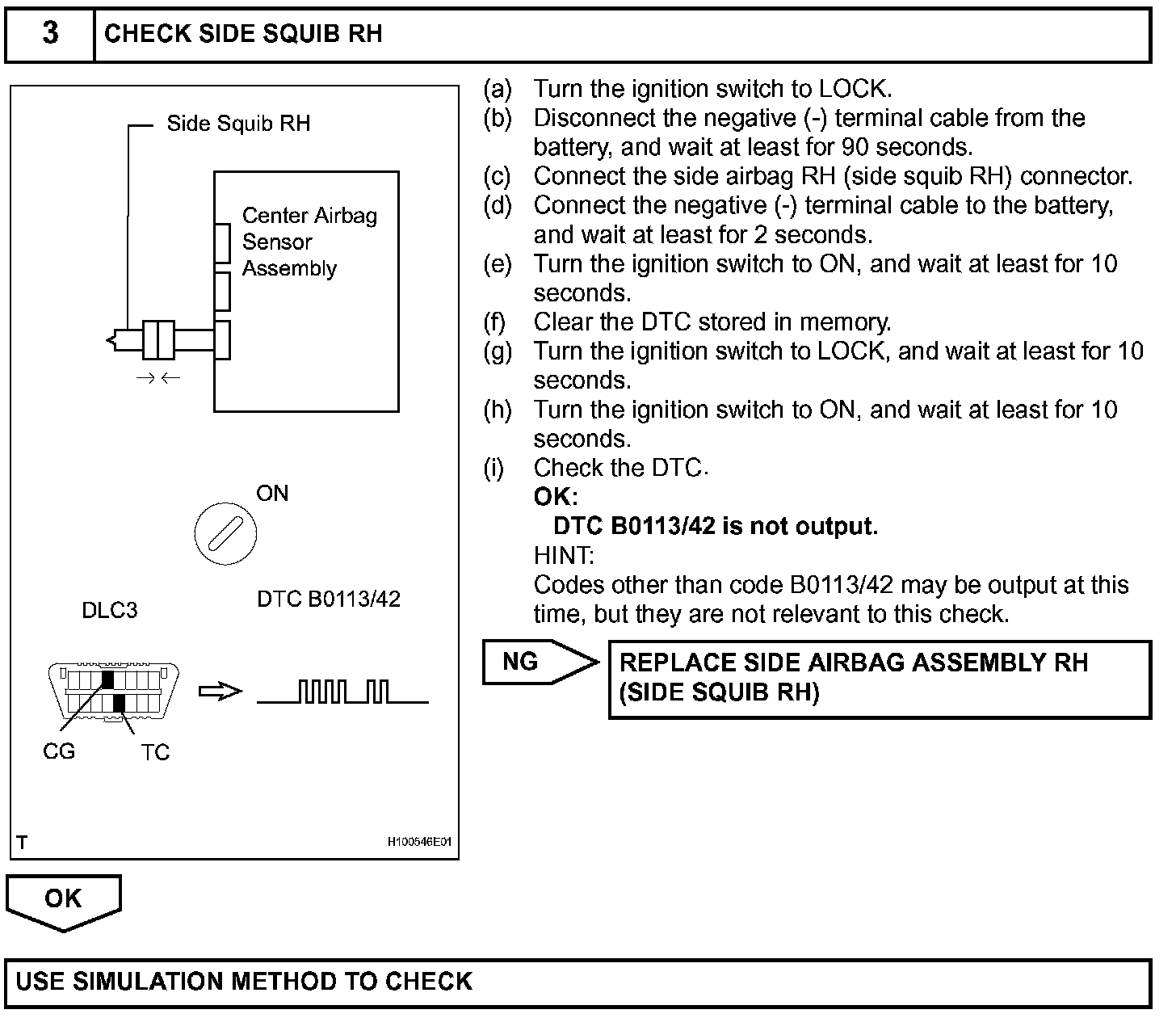

Step 3:
