B0115

DTC B0115/47 Short in Side Squib LH Circuit

DESCRIPTION

DTC Detection Condition:

The side squib LH circuit consists of the center airbag sensor and the side airbag LH.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0115/47 is recorded when a short is detected in the side squib LH circuit.

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:

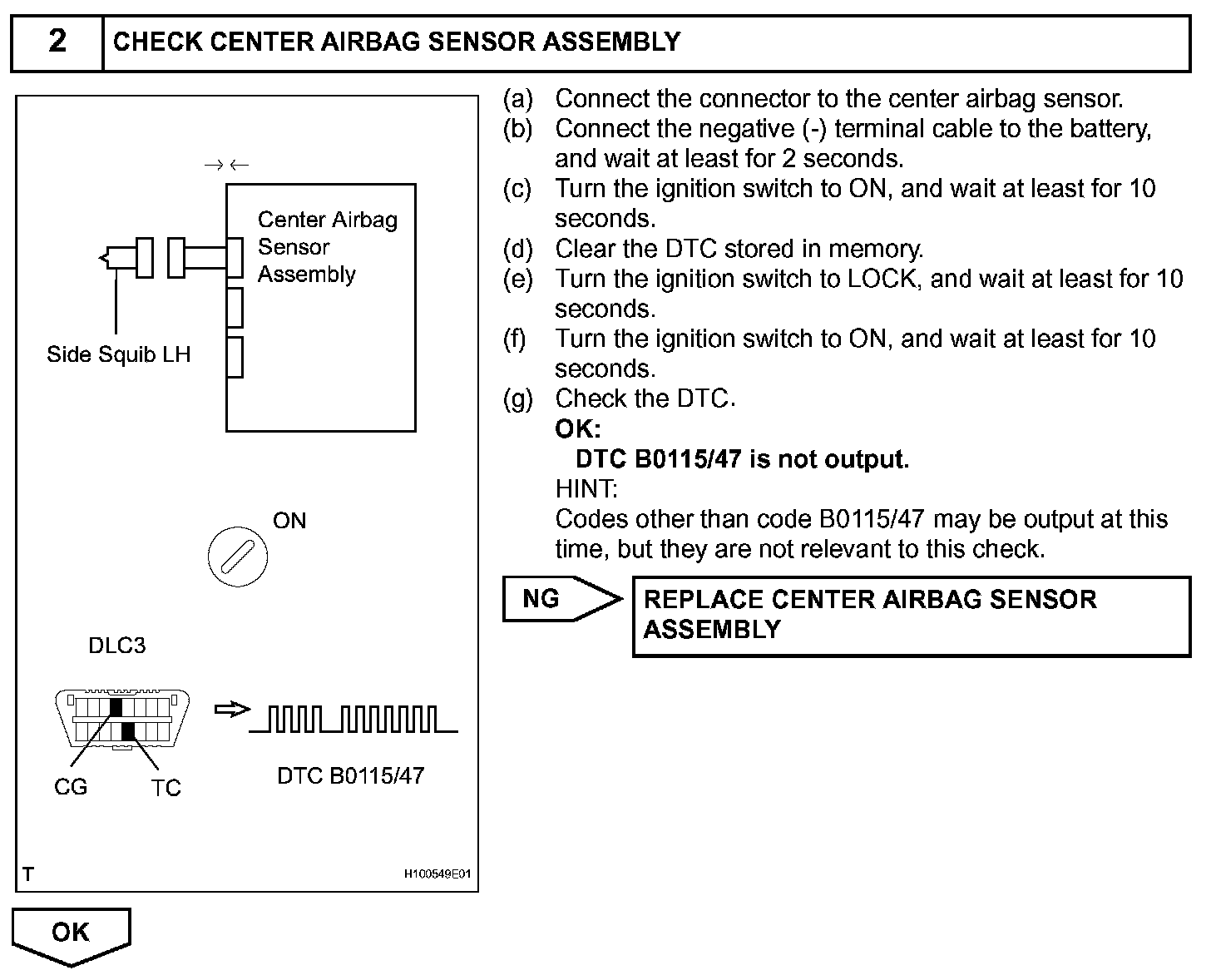

Step 2:

Step 3:
