B0116

DTC B0116/48 Open in Side Squib LH Circuit

DESCRIPTION

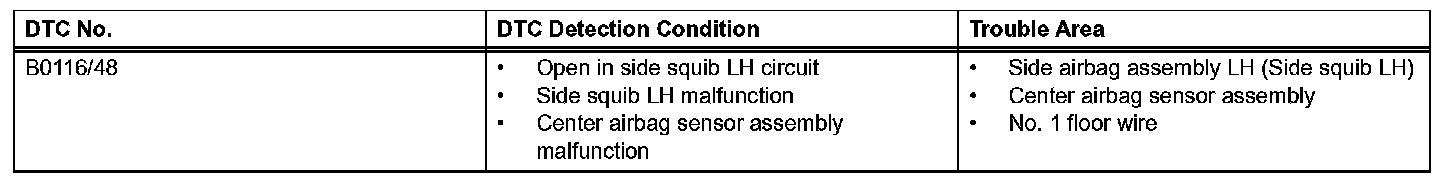

DTC Detection Condition:

The side squib LH circuit consists of the center airbag sensor and the side airbag LH.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0116/48 is recorded when an open is detected in the side squib LH circuit.

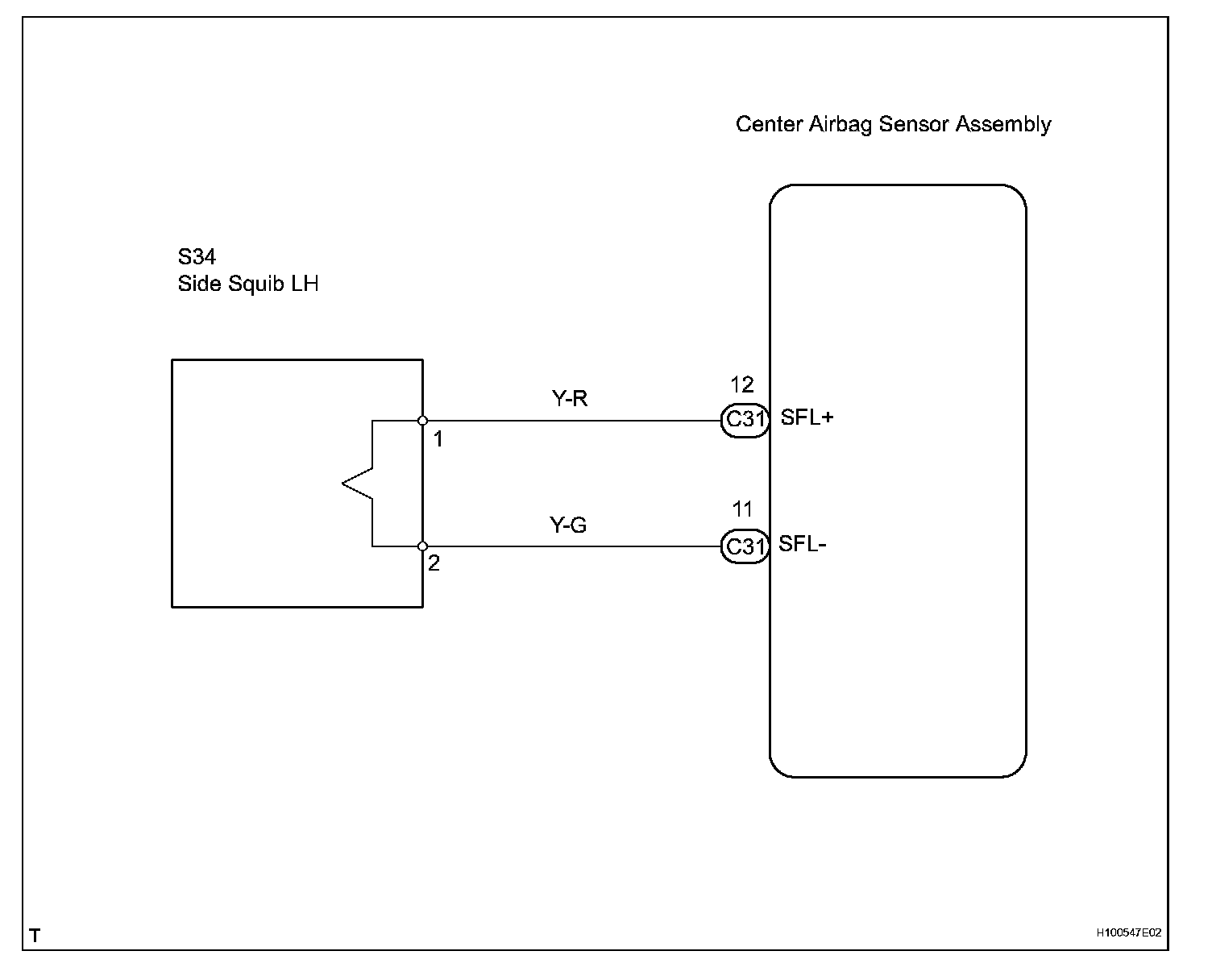

Wiring Diagram:

INSPECTION PROCEDURE

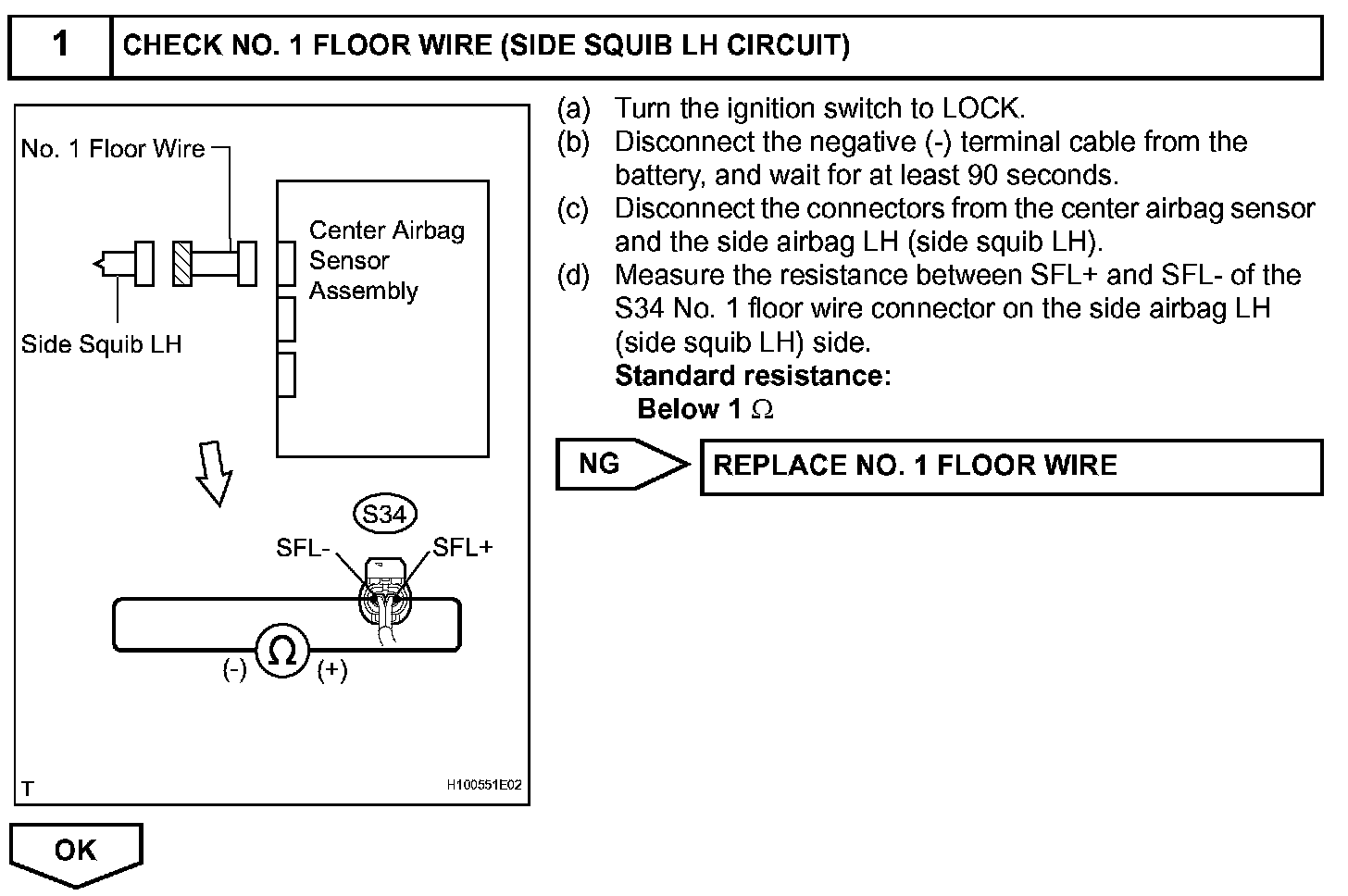

Step 1:

Step 2:

Step 3:
