B0118

DTC B0118/46 Short to B+ in Side Squib LH Circuit

DESCRIPTION

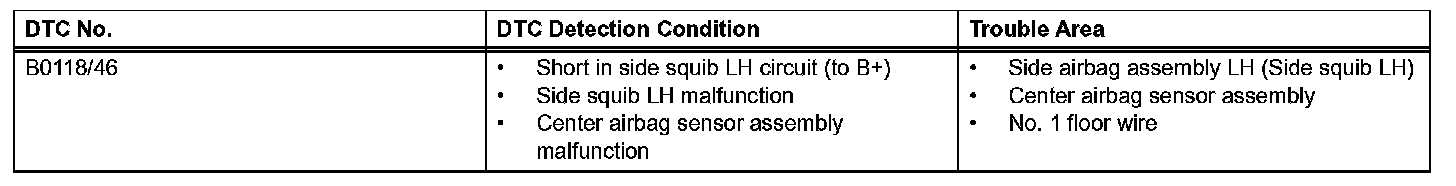

DTC Detection Condition:

The side squib LH circuit consists of the center airbag sensor and the side airbag LH.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0118/46 is recorded when a B+ short is detected in the side squib LH circuit.

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:

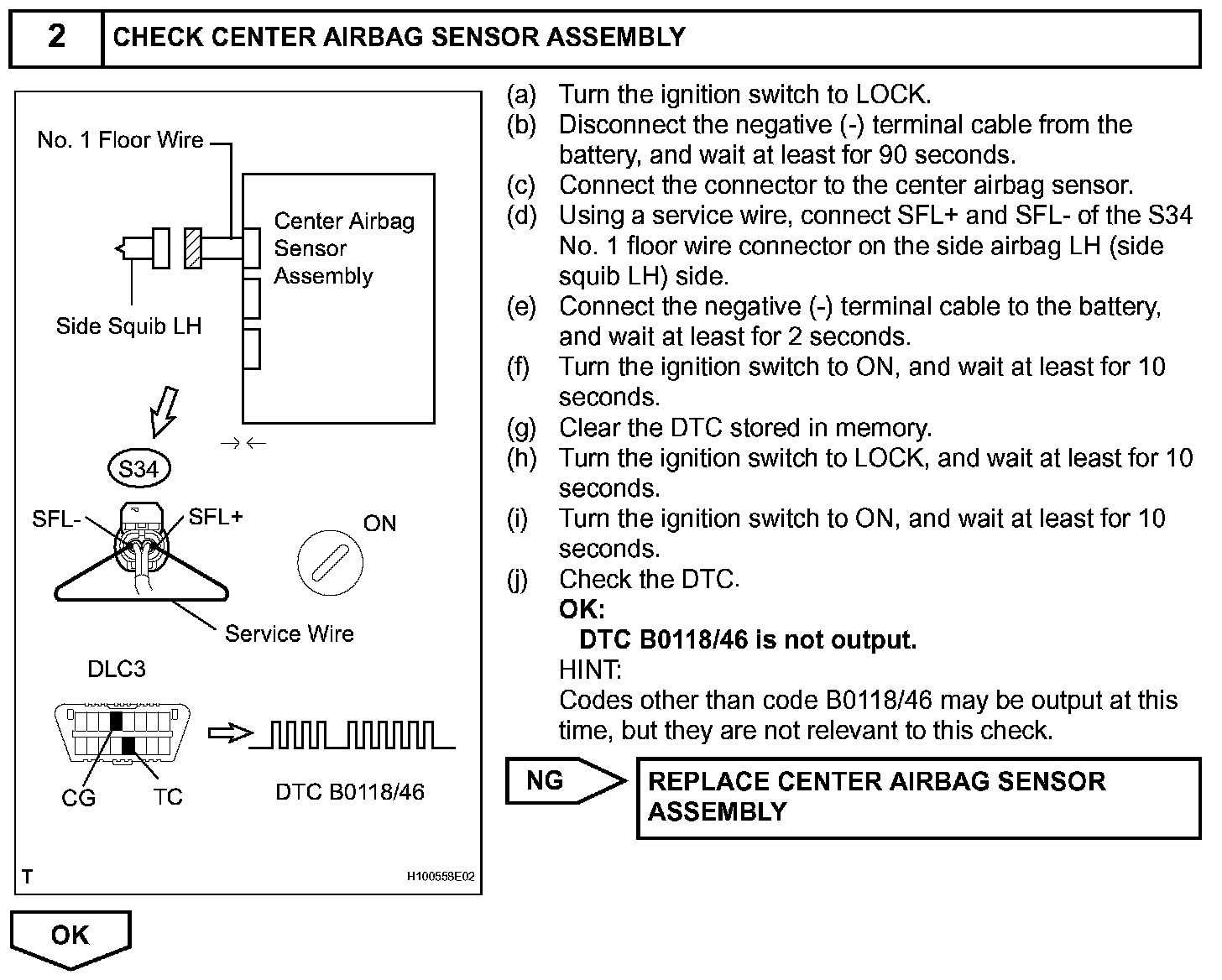

Step 2:

Step 3:
