B0131

DTC B0131/64 Open in Front Pretensioner Squib RH Circuit

DESCRIPTION

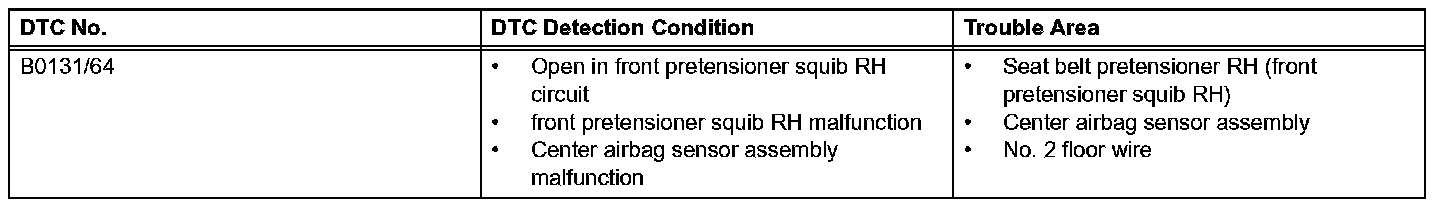

DTC Detection Condition:

The front pretensioner squib RH circuit consists of the center airbag sensor and the seat belt pretensioner RH.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0131/64 is recorded when an open is detected in the front pretensioner squib RH circuit.

Wiring Diagram:

INSPECTION PROCEDURE

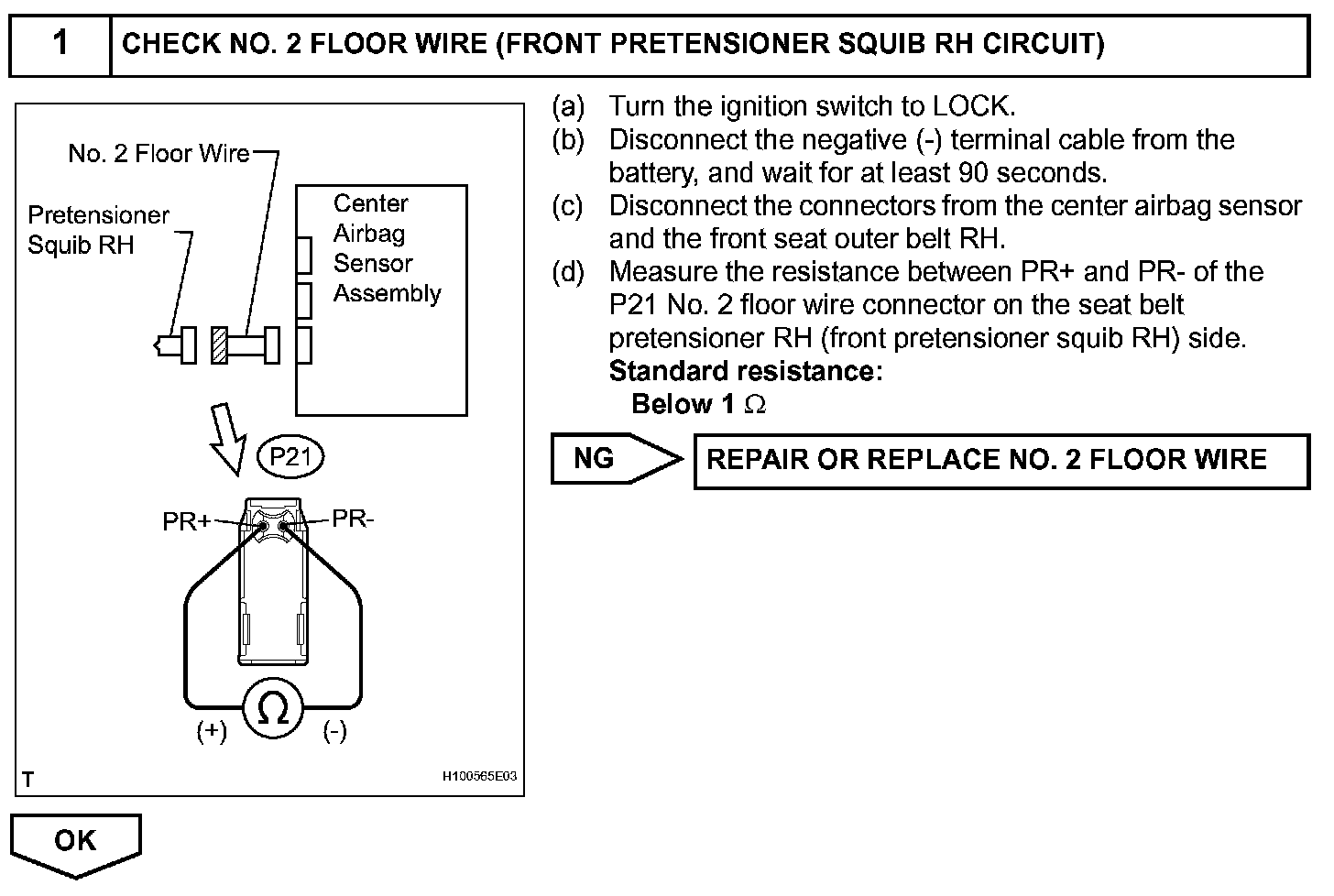

Step 1:

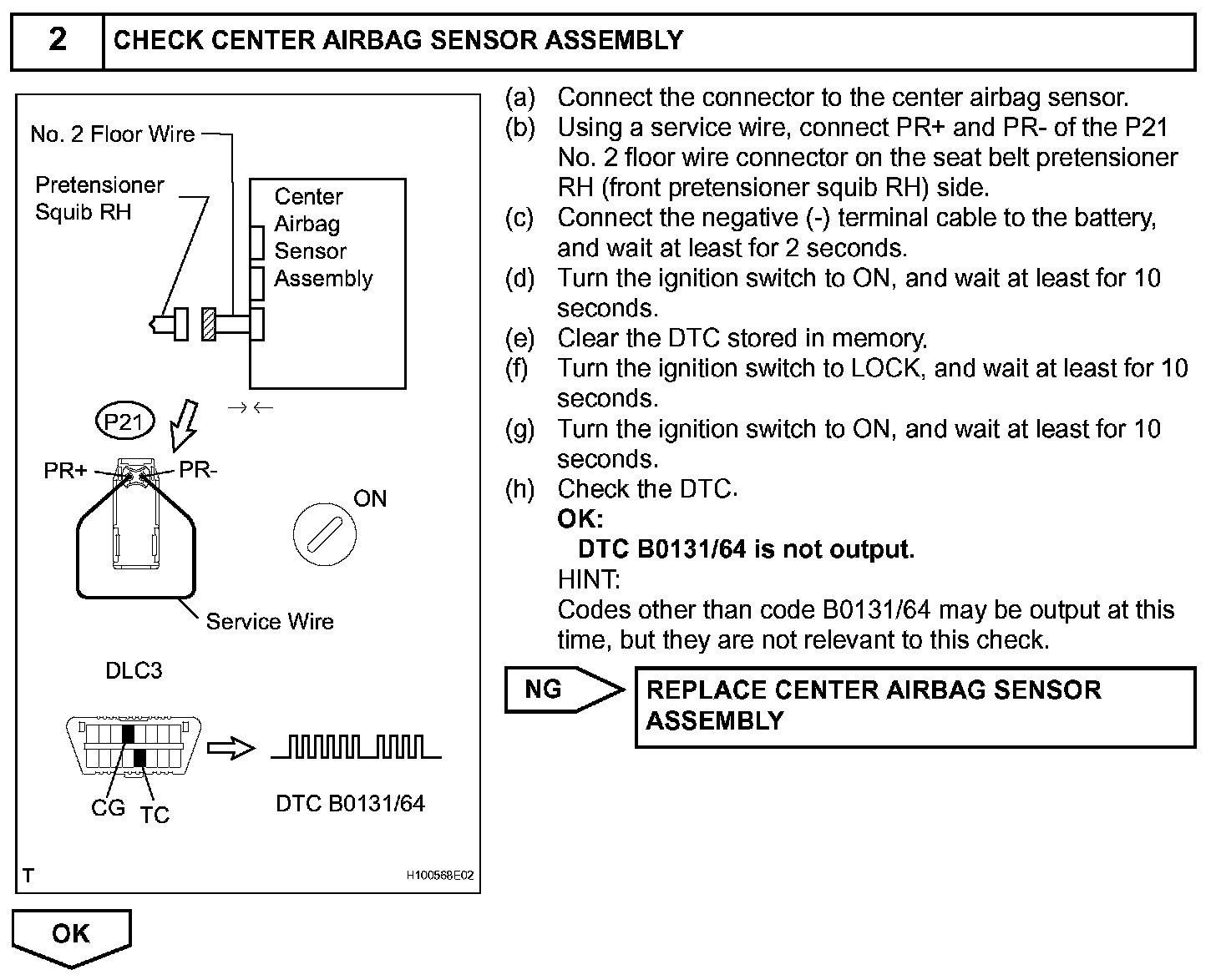

Step 2:

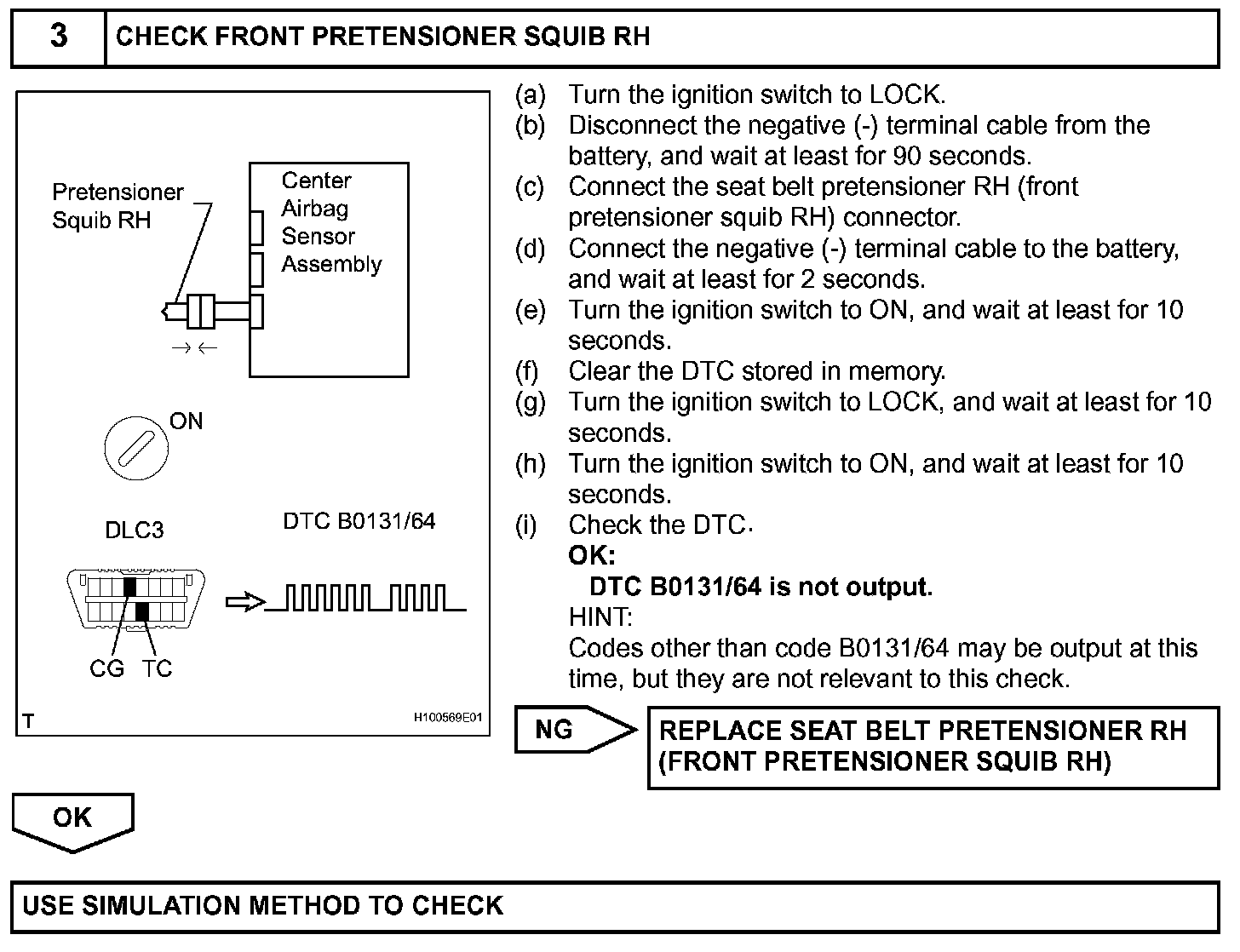

Step 3:
