B1135
DTC B1135/24 Half Connection in Center Airbag Sensor Assembly ConnectorsDESCRIPTION

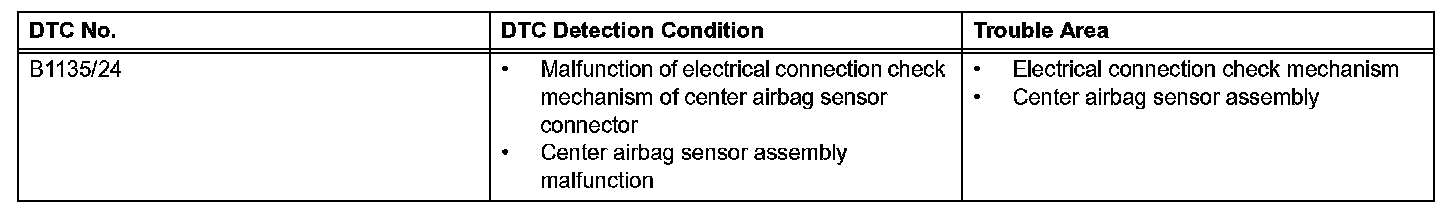

DTC Detection Condition:
The center airbag sensor connector has a mechanism that electrically detects half-connection.
Supervising voltage in the center airbag sensor circuit detects half-connection.
DTC B1135/24 is recorded when the center airbag sensor detects an open in the electrical connection check mechanism of the airbag sensor connector or in the airbag sensor circuit.
INSPECTION PROCEDURE
Step 1:

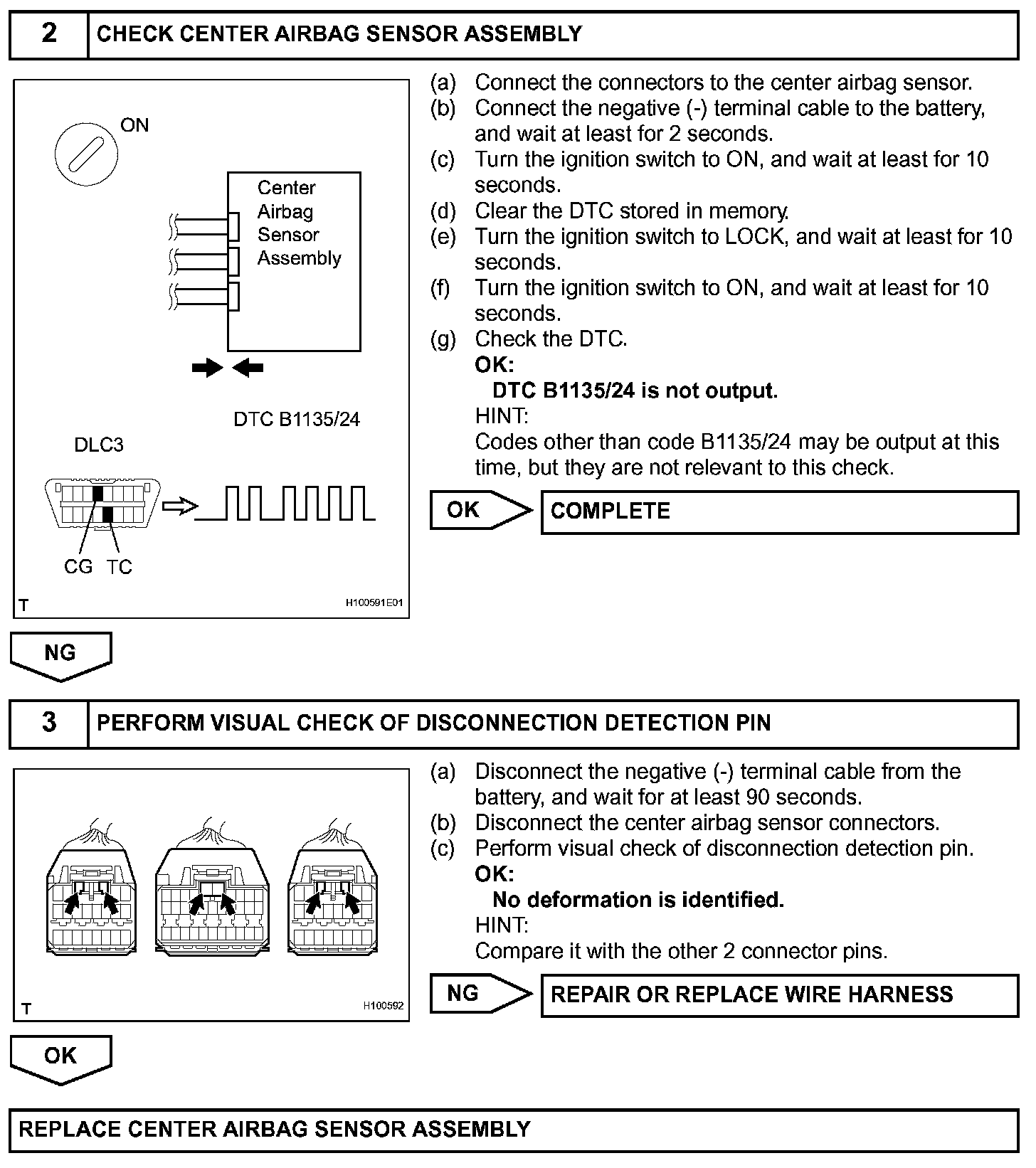

Step 2-3:
