B1155
DTC B1155/39 Curtain Shield Airbag Sensor Assembly LH MalfunctionDESCRIPTION
DTC Detection Condition:
The curtain shield airbag sensor LH consists of the safing sensor, diagnosis circuit and lateral deceleration sensor, etc.
It receives signals from the lateral deceleration sensor, judges whether or not the SRS must be activated, and detects diagnosis system malfunction.
DTC B1155/39 is recorded when occurrence of a malfunction in the curtain shield airbag sensor LH is detected.

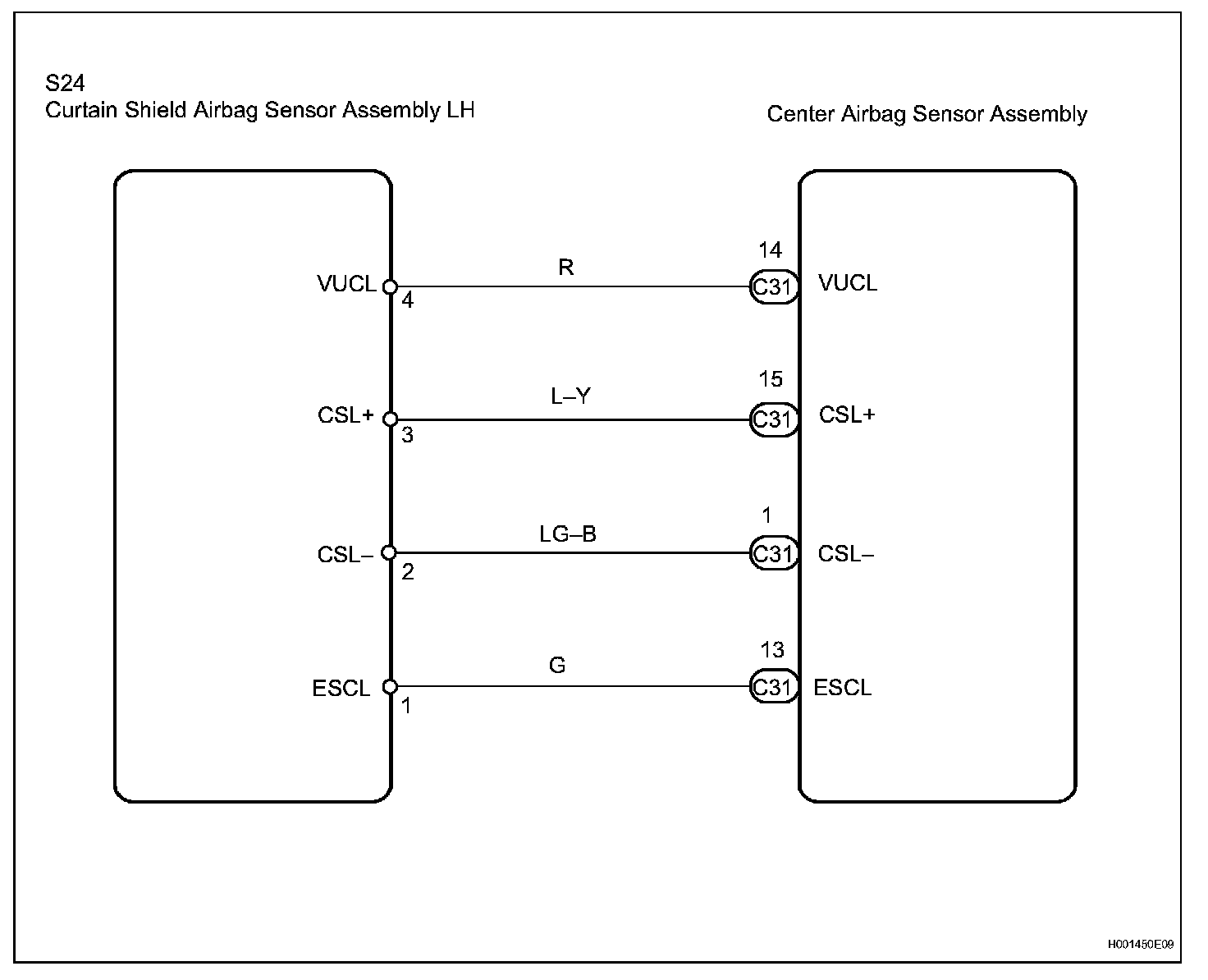

Wiring Diagram:
INSPECTION PROCEDURE
Step 1-2:
Step 3:
Step 4:
Step 5-6:
Step 7:
