B1163

DTC B1163/82 Short to B+ in Curtain Shield Squib RH Circuit

DESCRIPTION

DTC Detection Condition:

The curtain shield squib RH circuit consists of the center airbag sensor and the curtain shield airbag RH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1163/82 is recorded when a B+ short is detected in the curtain shield squib RH circuit.

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:

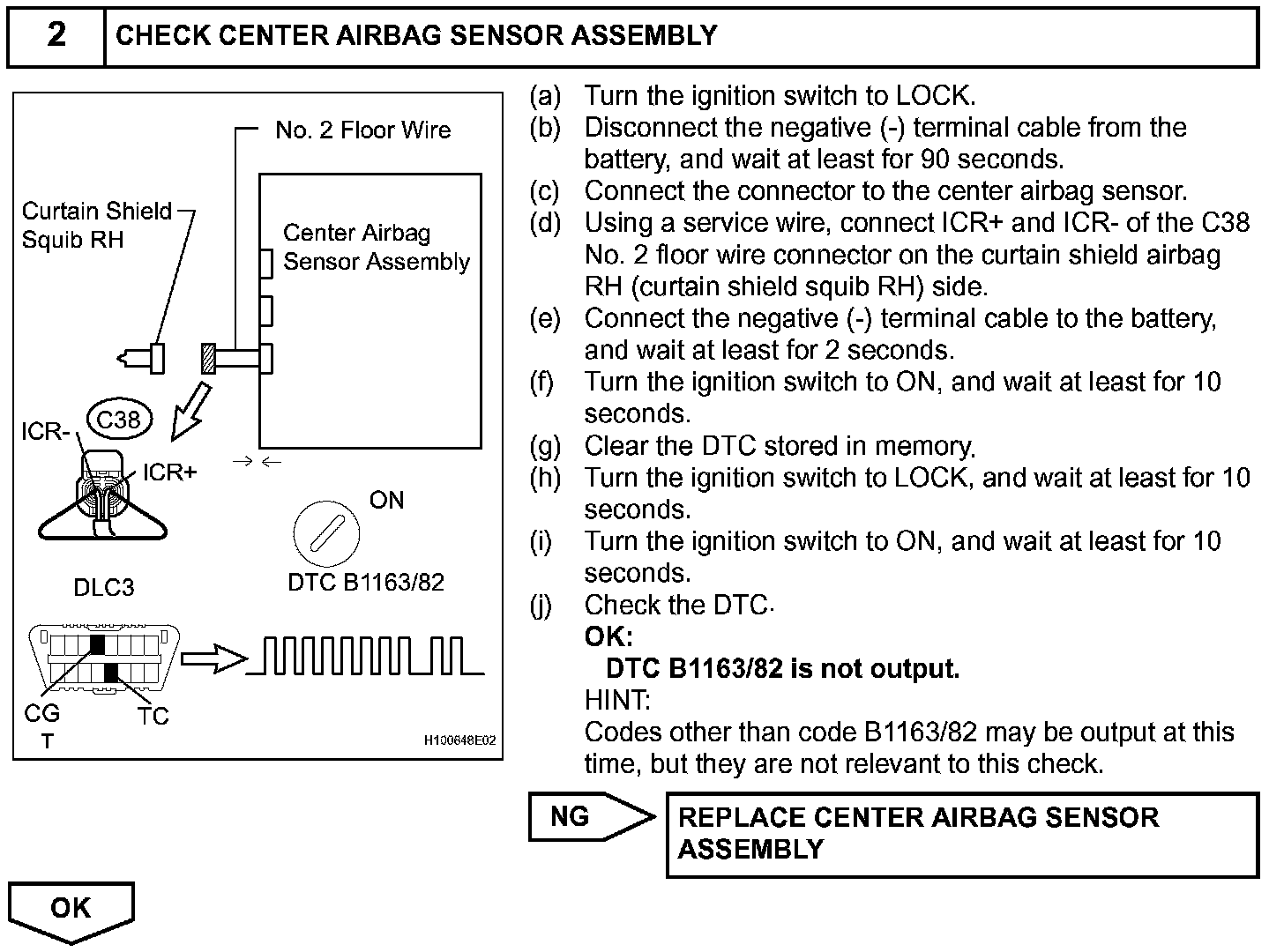

Step 2:

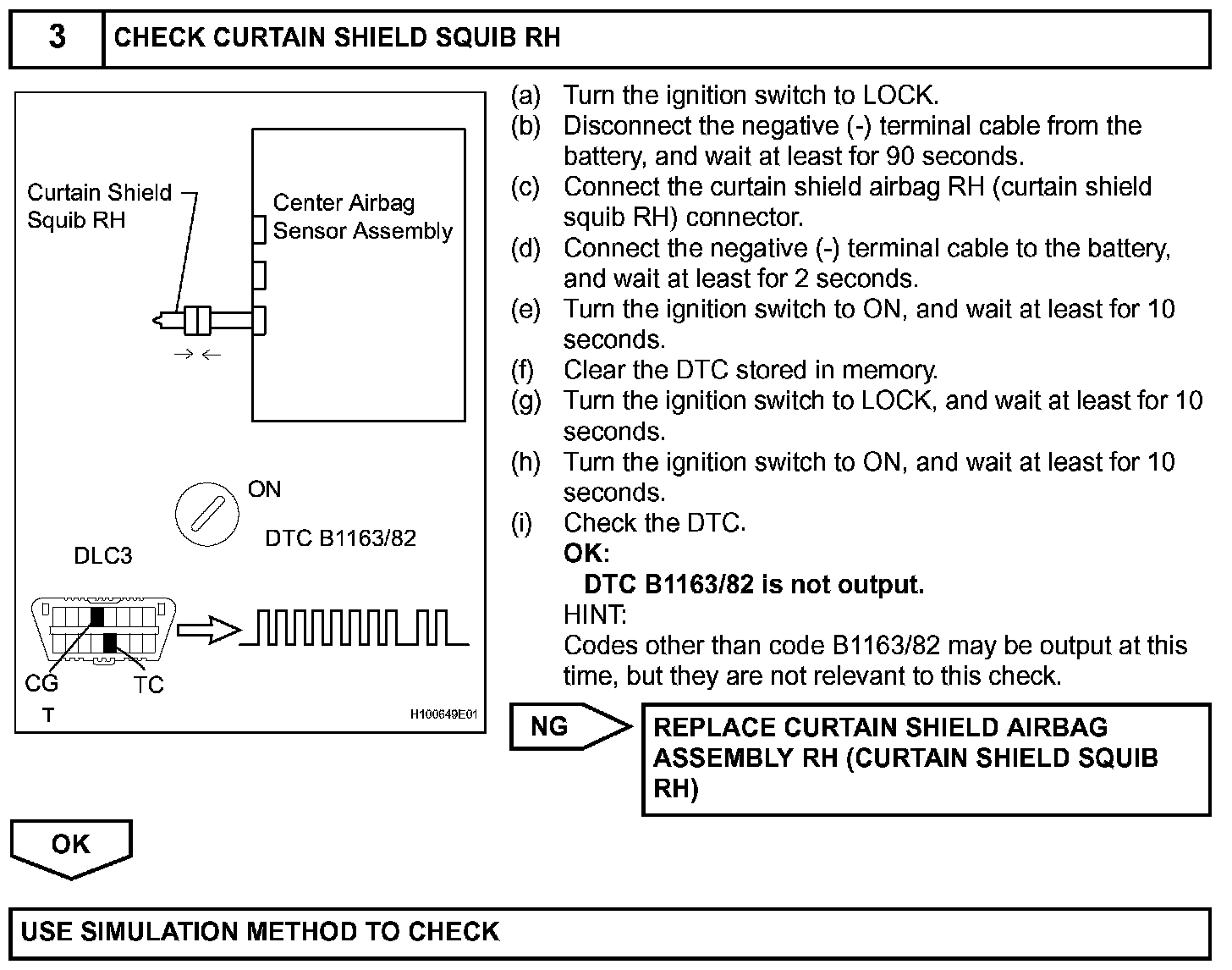

Step 3:
