B1168

DTC B1168/86 Short to B+ in Curtain Shield Squib LH Circuit

DESCRIPTION

DTC Detection Condition:

The curtain shield squib LH circuit consists of the center airbag sensor and the curtain shield airbag LH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1168/86 is recorded when a B+ short is detected in the curtain shield squib LH circuit.

Wiring Diagram:

INSPECTION PROCEDURE

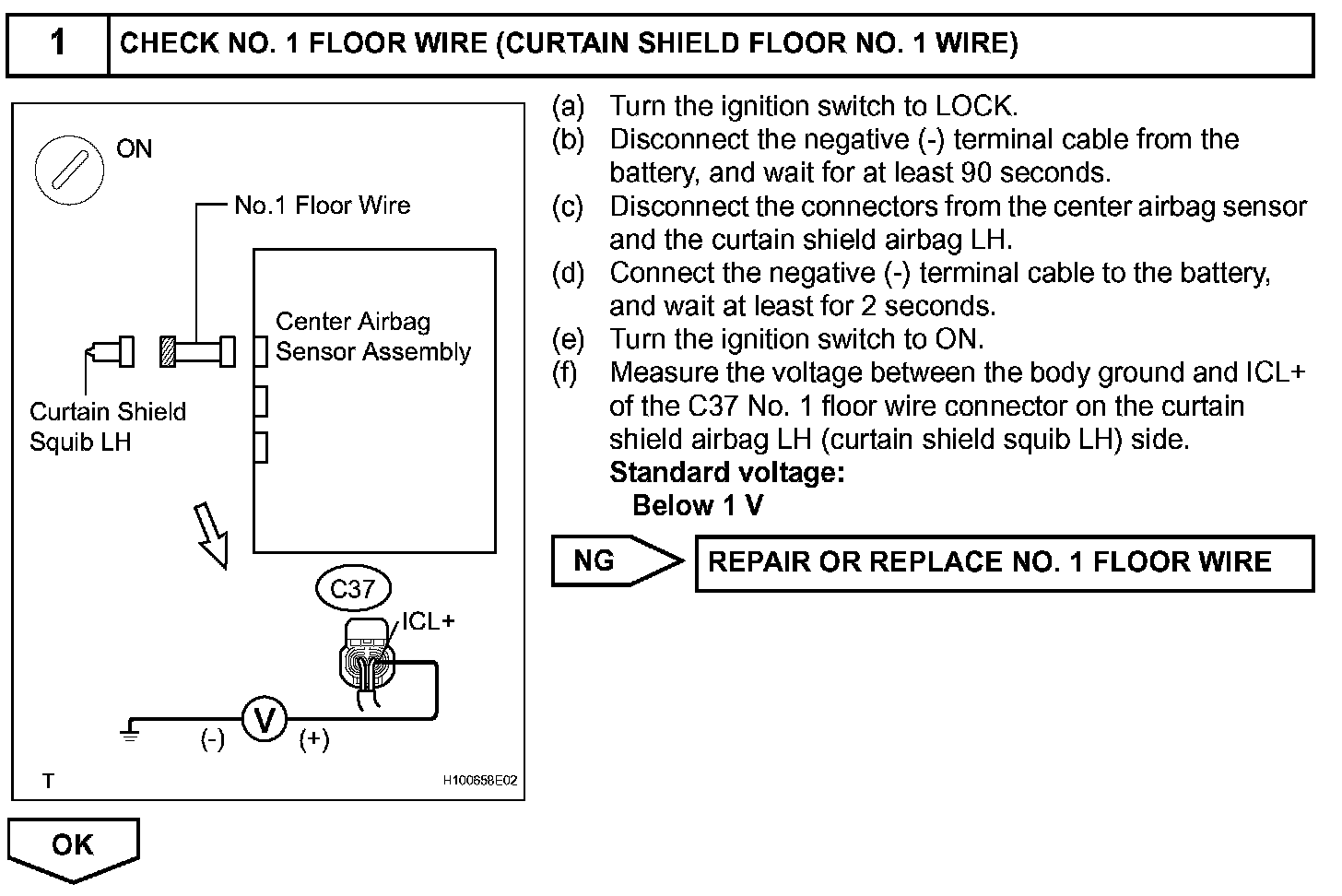

Step 1:

Step 2:

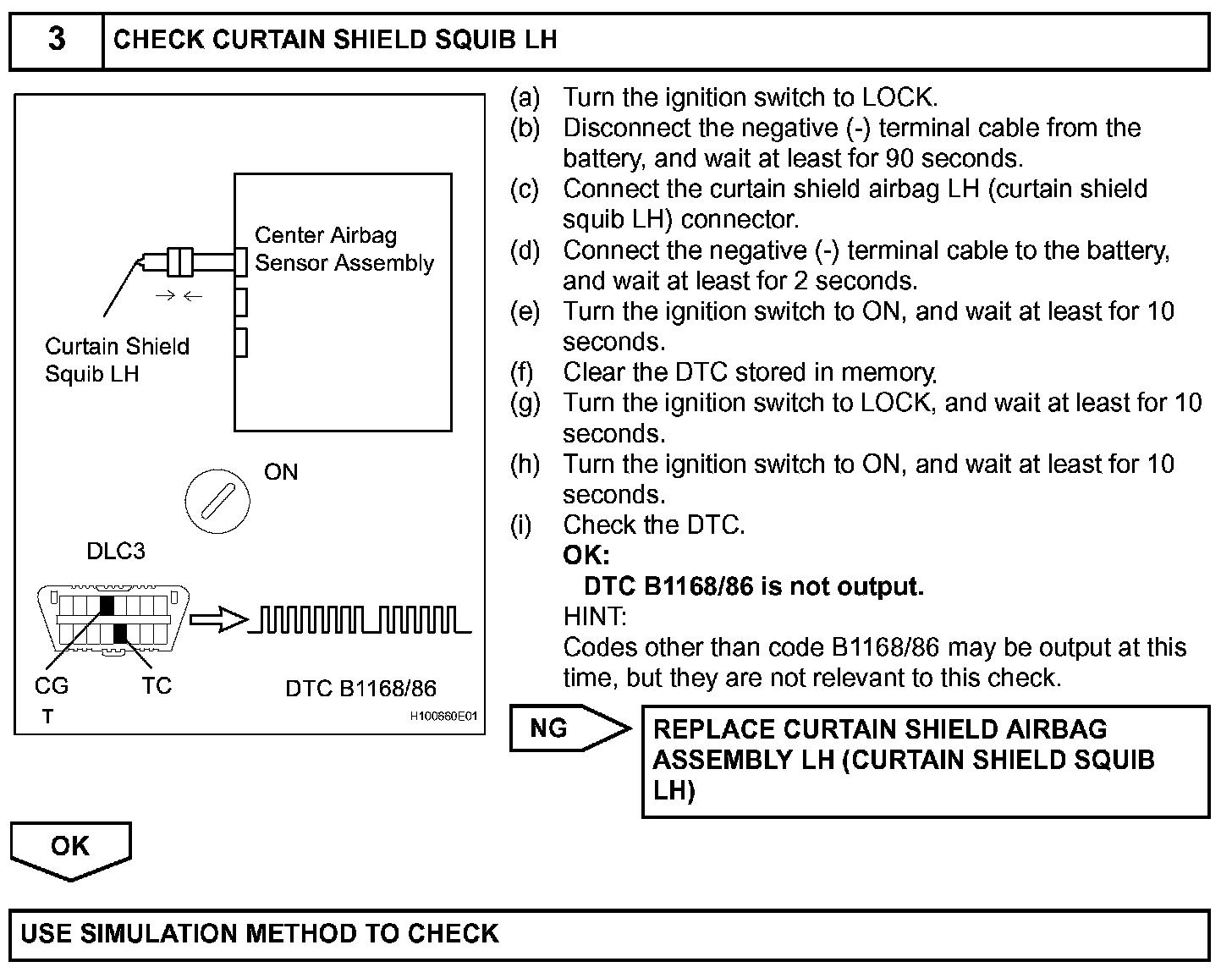

Step 3:
