B1628

DTC B1628/29 Roll Over Cut Off Indicator Malfunction

DESCRIPTION

DTC Detection Condition:

The RSCA off switch is a mechanism that operates both right and left side of the curtain shield airbag and the seat belt pretensioner when the center airbag sensor detects a roll-over.

The RSCA off switch indicator light is installed in the combination meter.

As operating the RSCA off switch, the indicator light comes on to inform the driver that the roll-over detection system is not working.

The initial setting of the roll-over detection system is on. It automatically operates every time the ignition switch is turned ON.

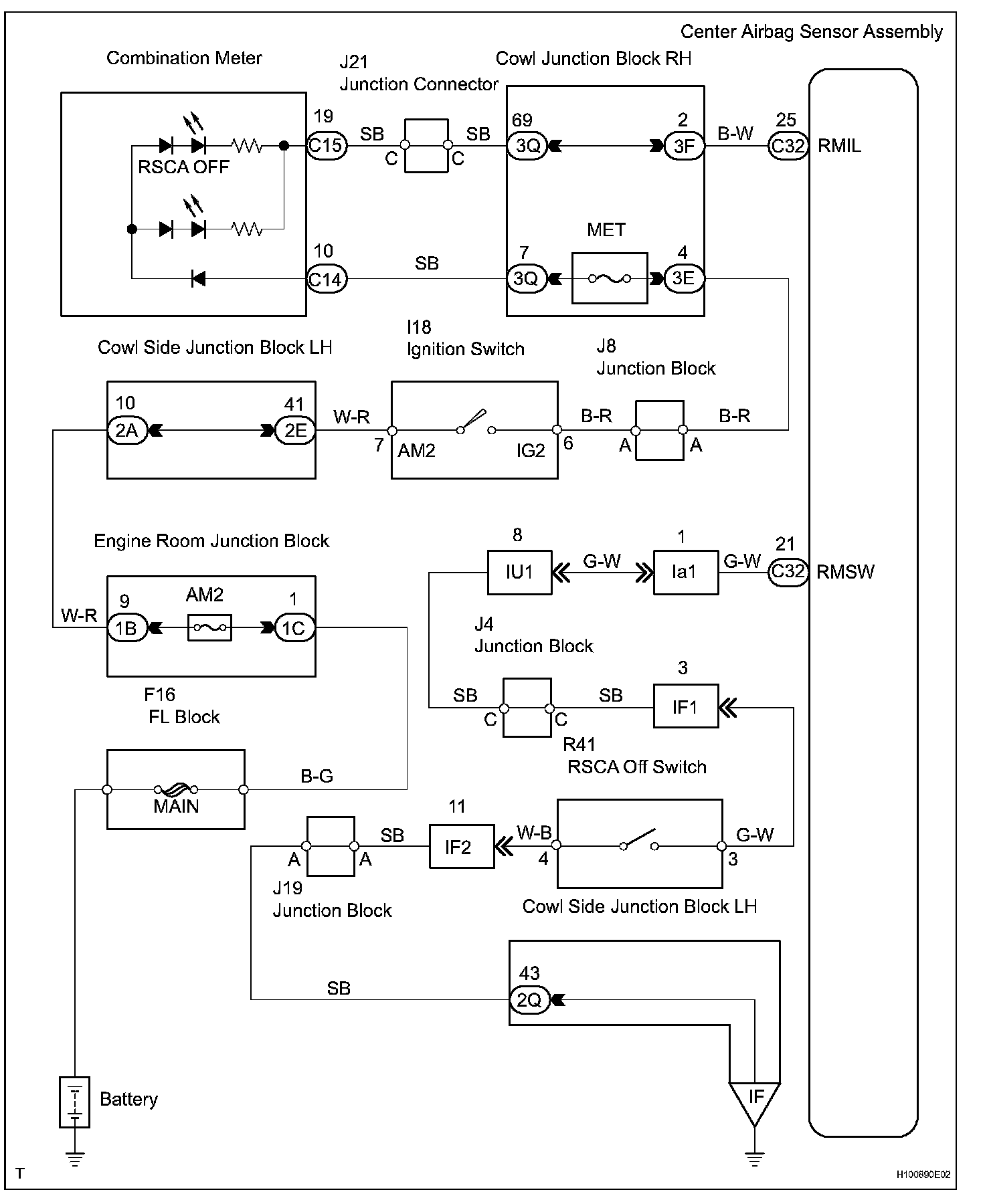

Wiring Diagram:

INSPECTION PROCEDURE

Step 1-2:

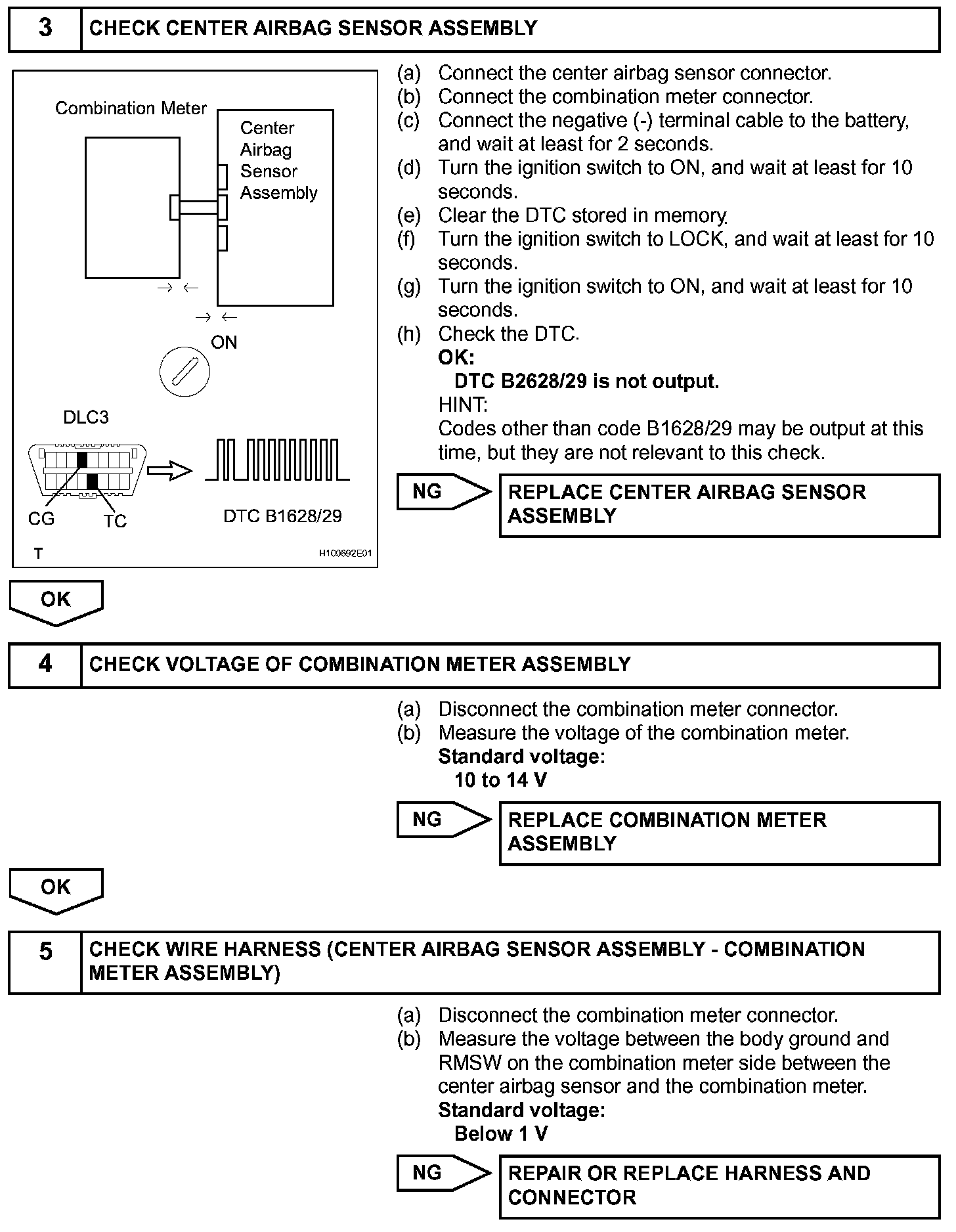

Step 3-5:

Step 5 (Continued)-7:

Step 7 (Continued):
