B2620

DTC B2620 ECU Power Source Circuit Malfunction

DESCRIPTION
The ECU power source circuit supplies positive voltage to the tilt and telescopic ECU.

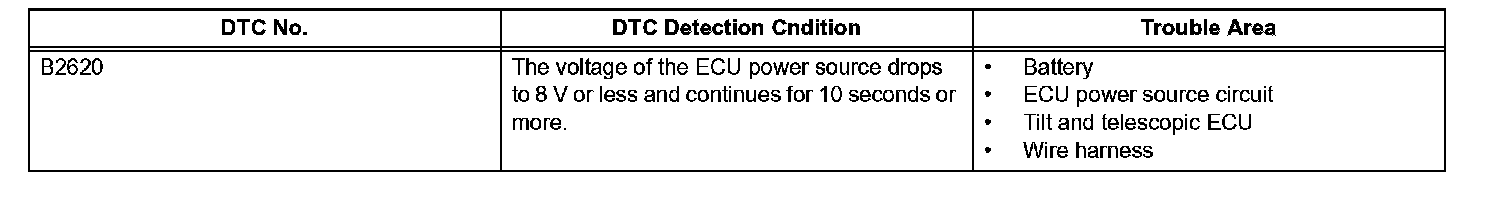

B2620:

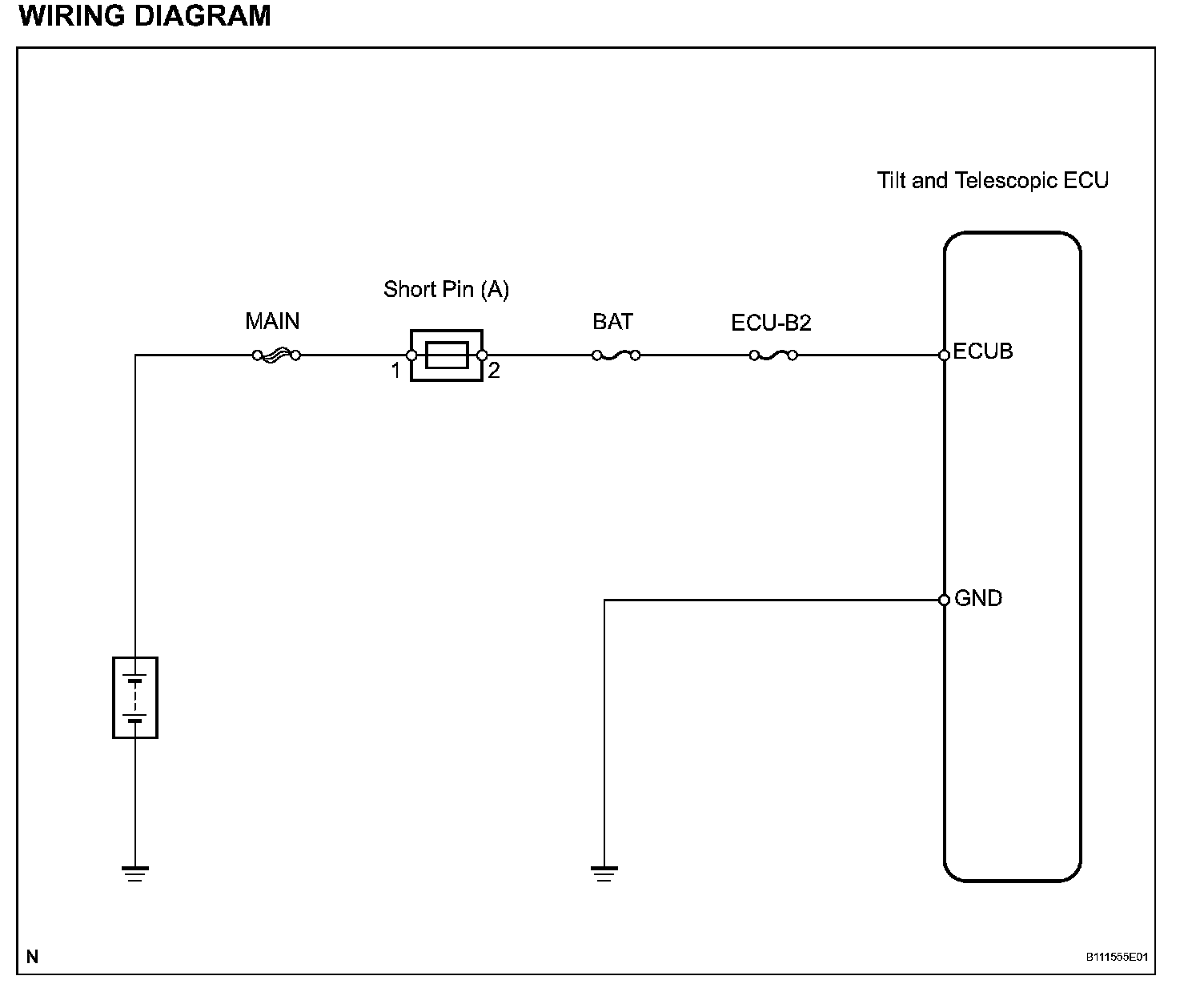

WIRING DIAGRAM:

INSPECTION PROCEDURE

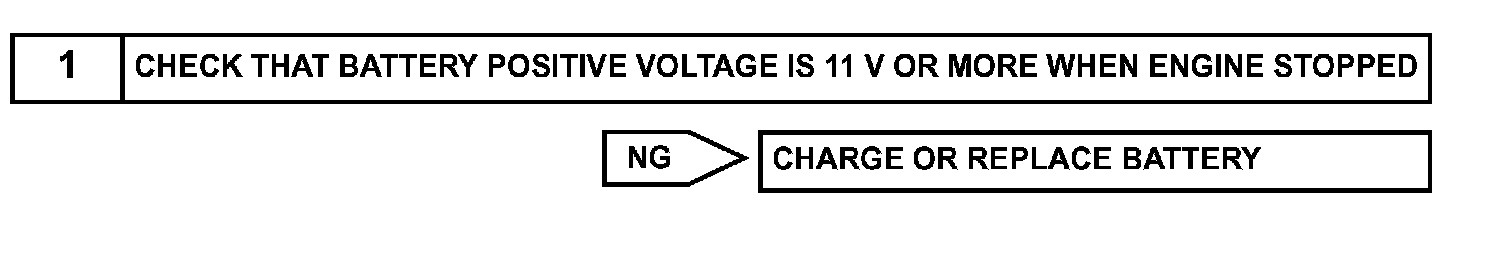

Step 1(Part 1):

Steps 1(Part 2)-4:
