C0246

DTC C0246/23 SRR Solenoid Circuit

DESCRIPTION

DTC Detection Condition:

This solenoid turns on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.

Wiring Diagram:

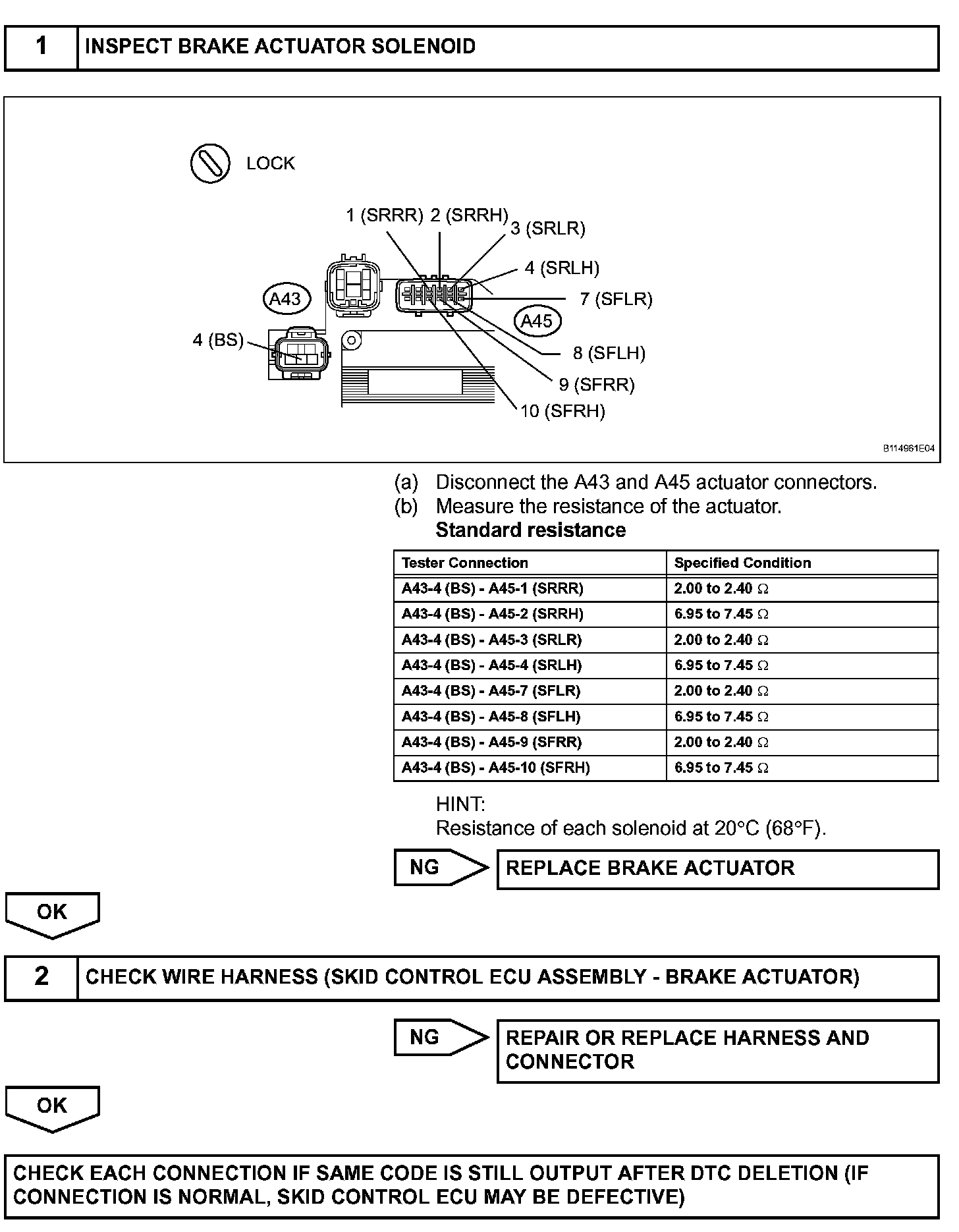

Step 1-2:

INSPECTION PROCEDURE
