C1511

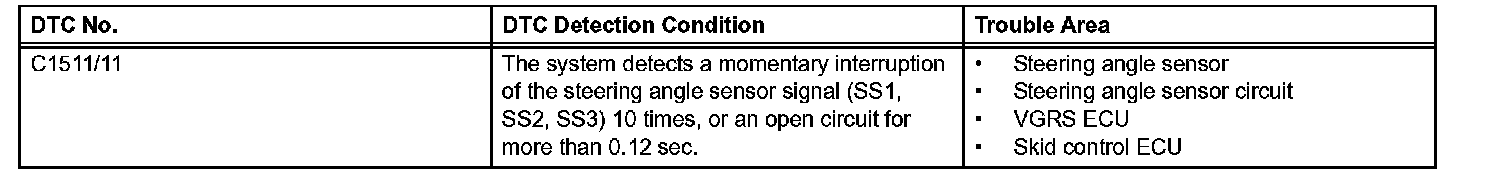

DTC C1511/11 Torque Sensor 1 Malfunction

DESCRIPTION

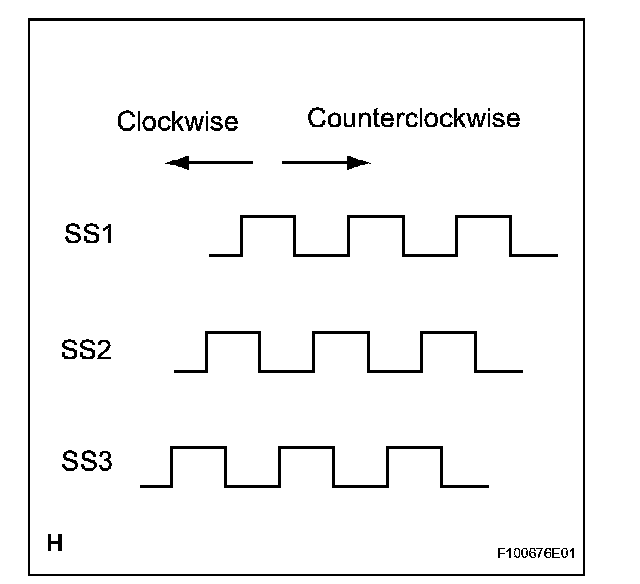

The VGRS ECU receives the steering sensor signals (SS1, SS2, SS3), and judges the steering condition to drive the VGRS actuator.

When the steering sensor signal is abnormal, the VGRS ECU records the DTC and illuminates the VGRS warning light.

C1511/11:

WIRING DIAGRAM:

INSPECTION PROCEDURE

HINT:

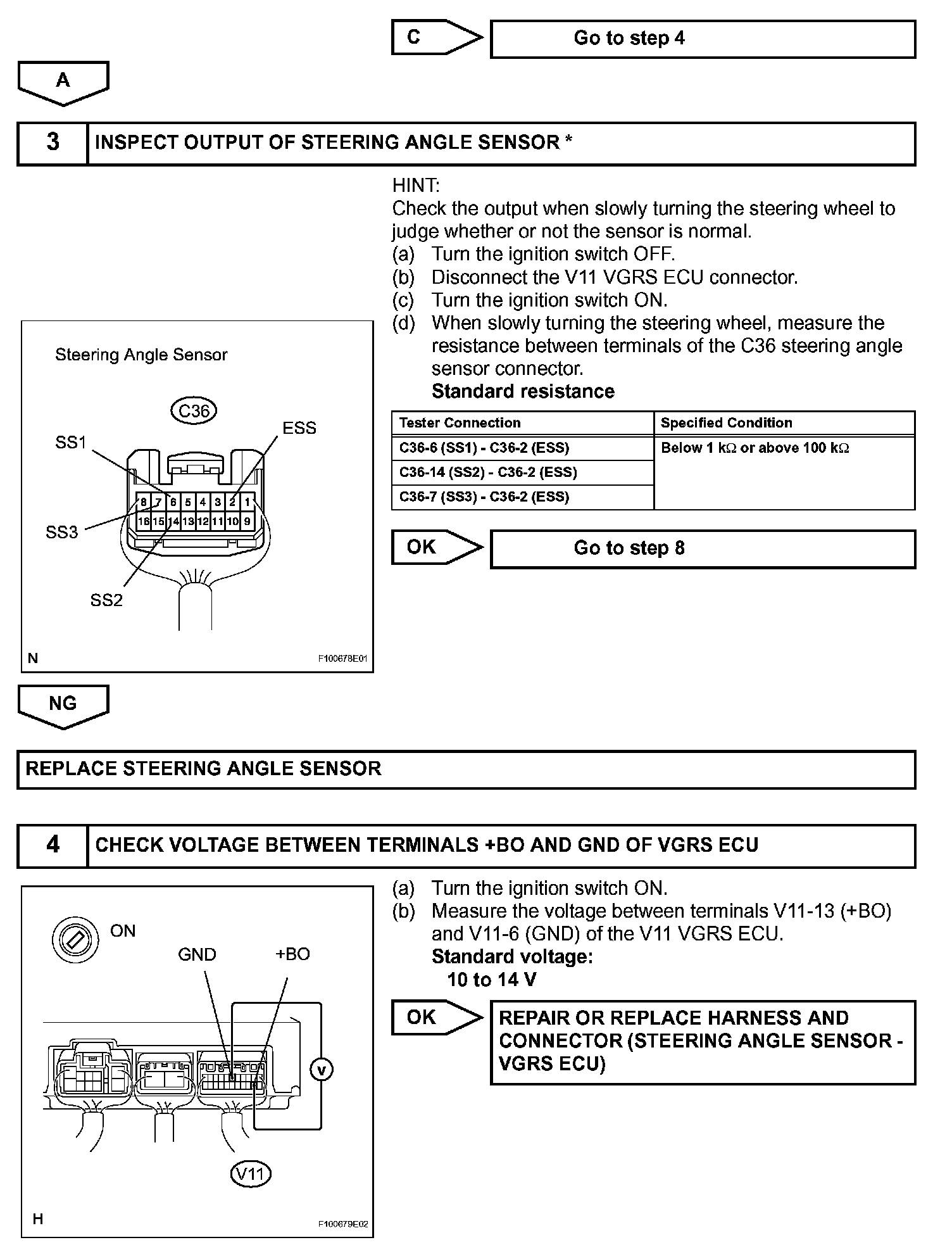

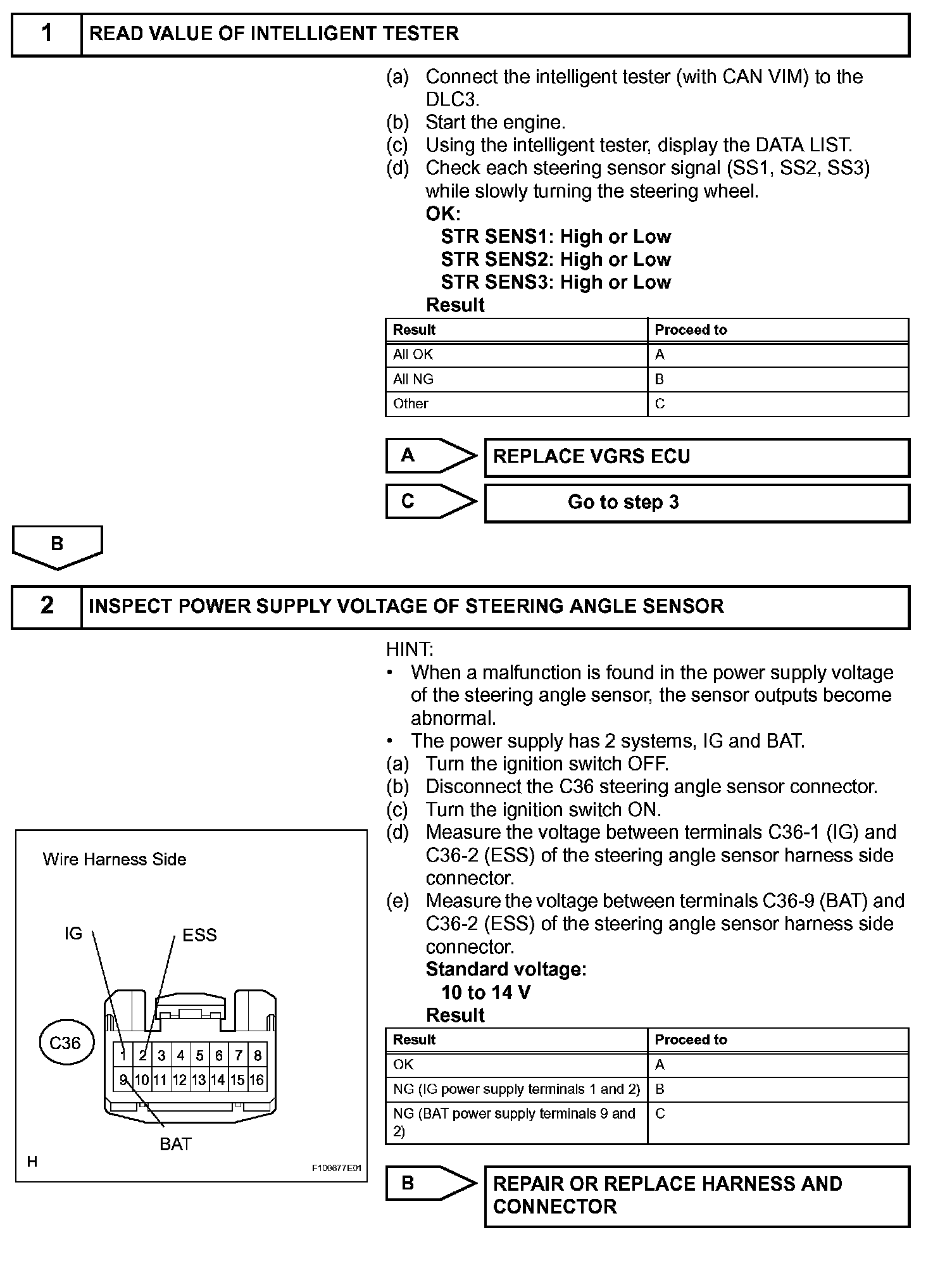

^ Determine the trouble area by checking the steering sensor signal using the intelligent tester.
^ When not using the intelligent tester, go to *.

Steps 1-2(Part 1):

Steps 2(Part 2)-4(Part 1):

Steps 4(Part 2)-6:

Steps 7-8(Part 1):

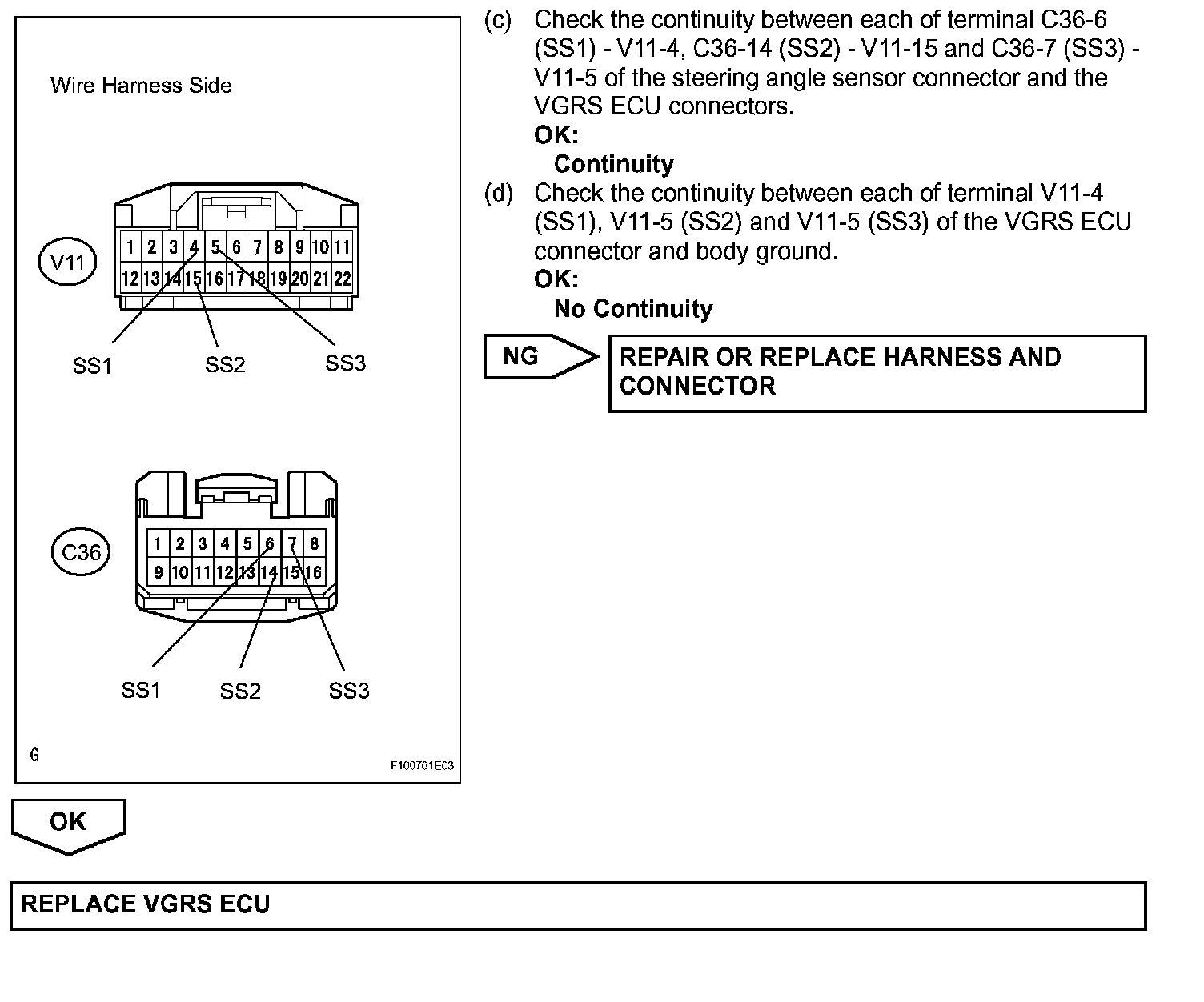

Step 8(Part 2):
