C1551
DTC C1551/51 IG Power Source Circuit MalfunctionDESCRIPTION
The VGRS ECU monitors IG power supply voltage. If the ECU detects a malfunction, it turns on the warning light, records the DTC, and stops VGRS operation.

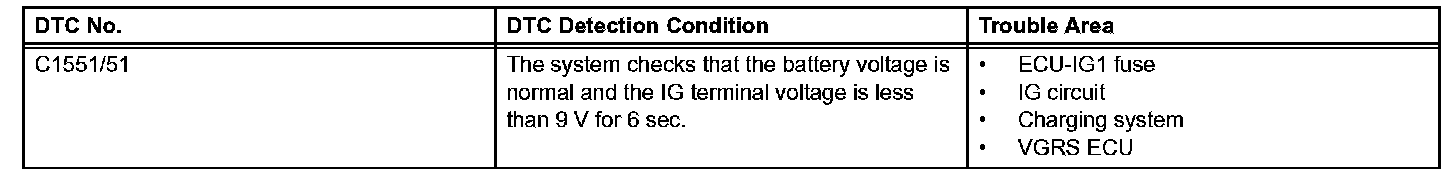

C1551/51:
WIRING DIAGRAM:

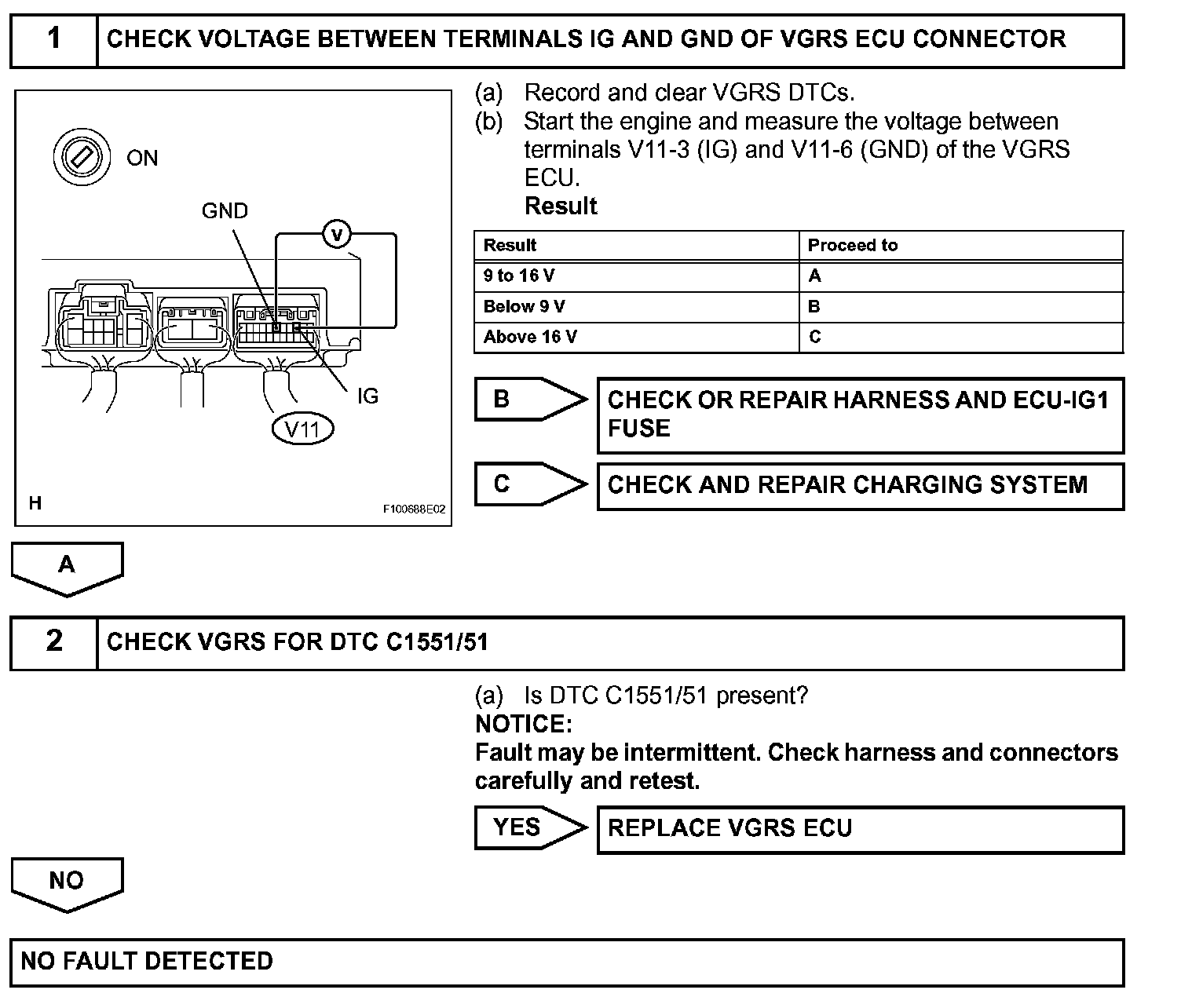

INSPECTION PROCEDURE
Steps 1-2:
