Air Conditioning System

DIAGNOSTIC TROUBLE CODE CHART

If malfunction code is displayed during the DTC check, check the circuit listed for that code in the table. Proceed to the DTC No. given for that circuit.

HINT:
- If DTC 00 is displayed, the air conditioning system is normal.
- To confirm DTC 22, perform the given steps.
- With the engine ON, enter the DTC check mode.
- Press the R/F switch to enter actuator check mode, and set the operation to Step No. 3.
- Press the AUTO switch to return to DTC check mode.
- The DTC is displayed after approximately 3 seconds.

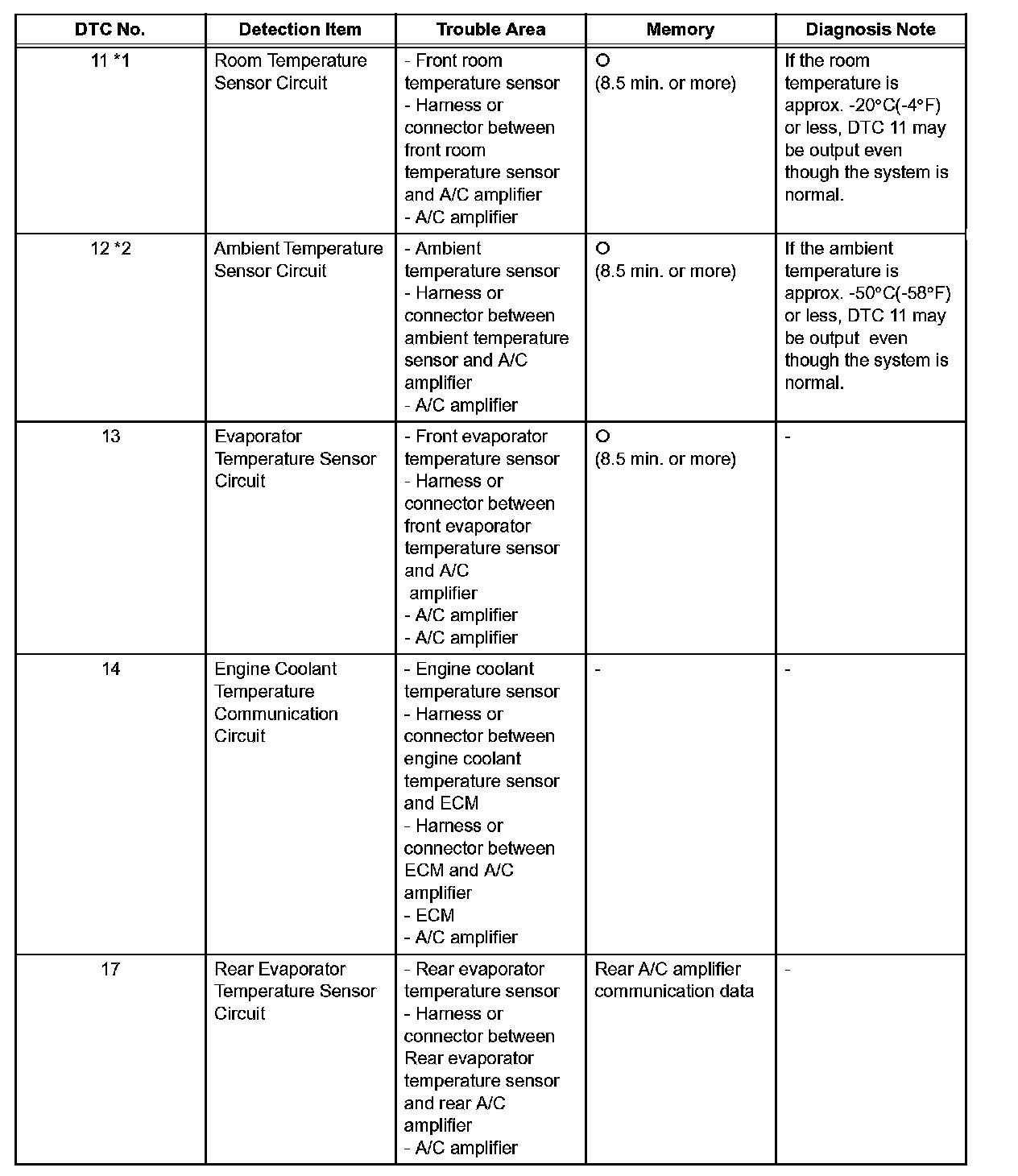

11-17:

18-26:

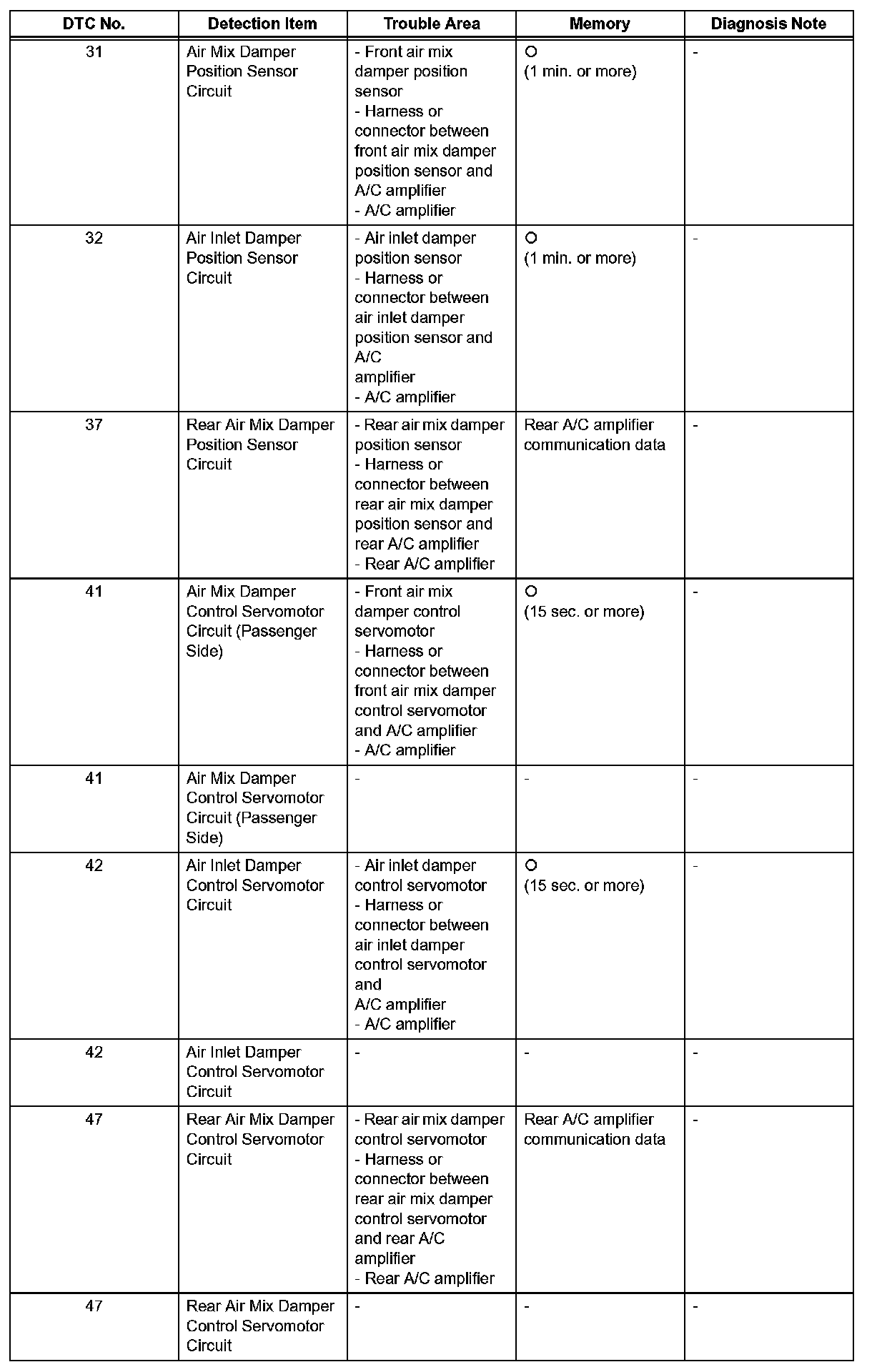

31-47:

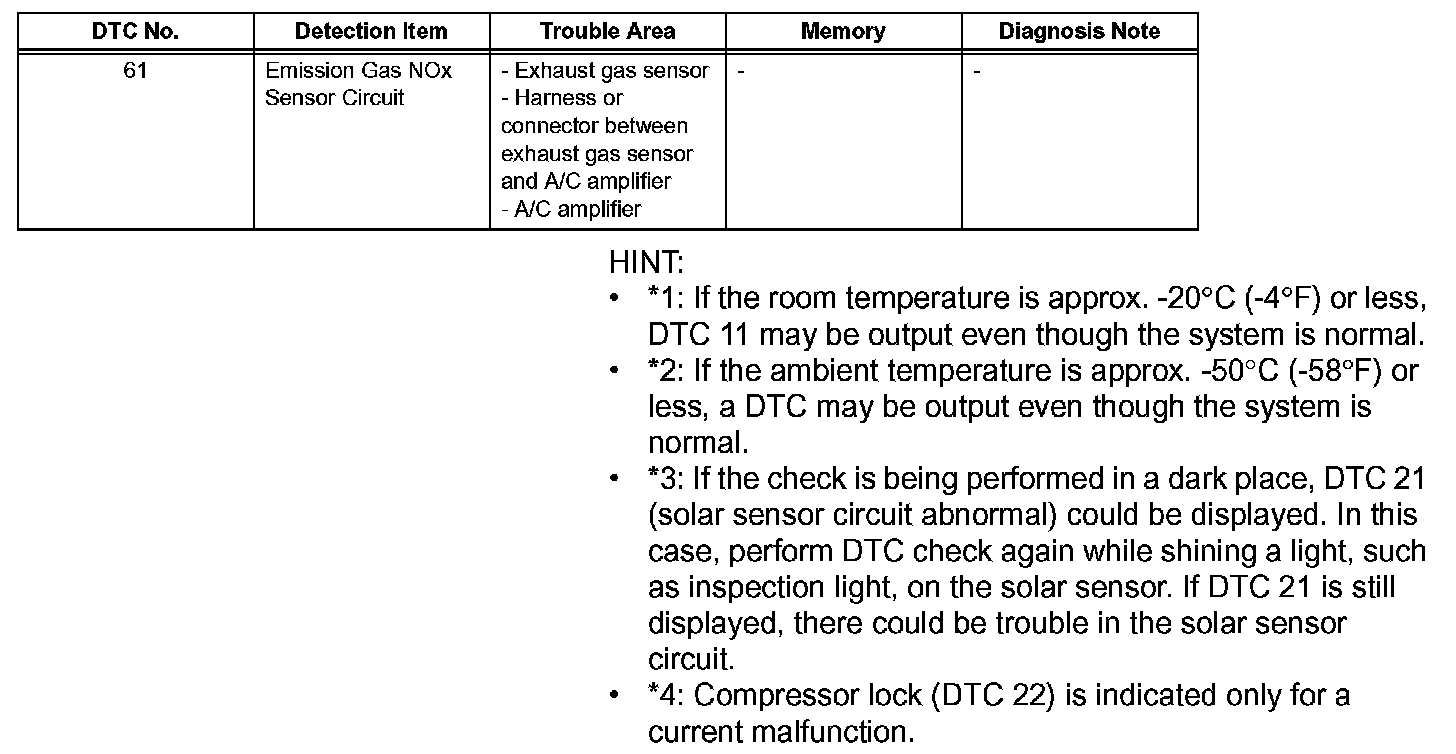

61:
