Engine Immobiliser System

DIAGNOSTIC TROUBLE CODE CHART

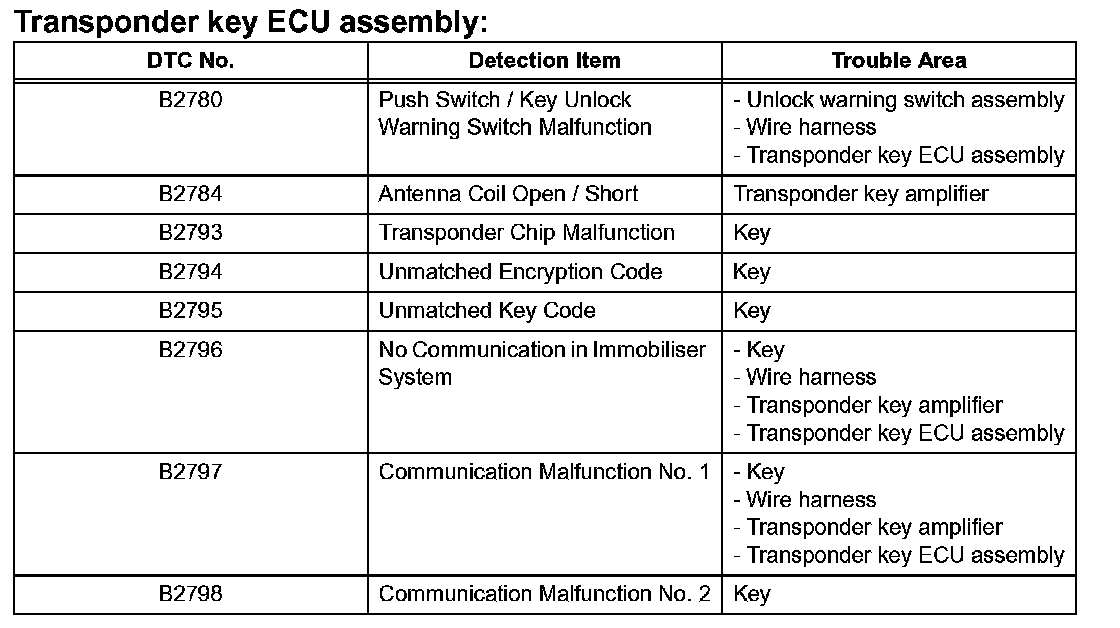

1. TRANSPONDER KEY ECU ASSEMBLY DTC CHART

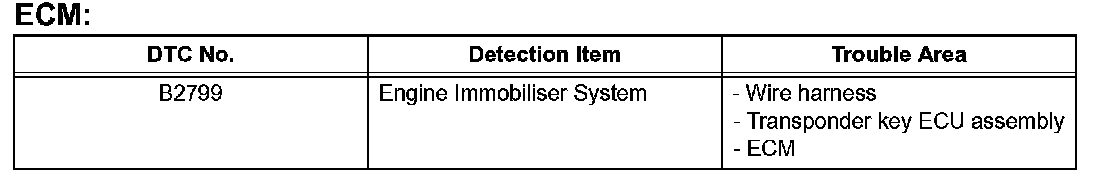

2. ECM DTC CHART

NOTE: The DTC for the immobilizer system is specified. If other codes are output, check the DTC chart of the SFI system.
