Occupant Classification System

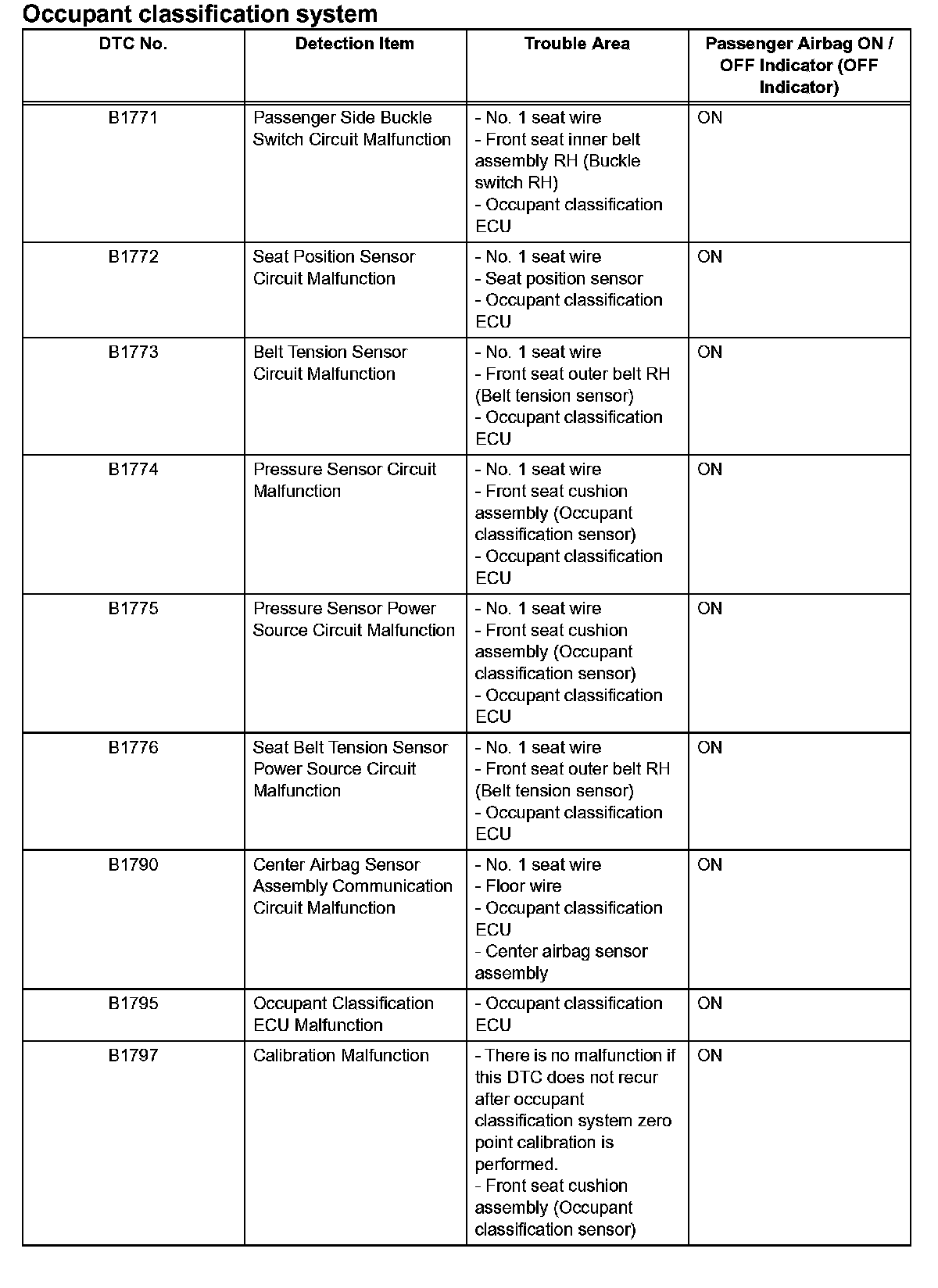

DIAGNOSTIC TROUBLE CODE CHART

HINT: When DTC B1650/32 is detected as a result of troubleshooting the Supplemental Restraint System, perform troubleshooting for the occupant classification system by referring to the table.

B1771-B1797:
