P0818
DTC P0818 Driveline Disconnect Switch Input CircuitDESCRIPTION
The ECM detects the signal from the transfer neutral position switch. This DTC indicates that the transfer neutral position switch remains ON.
P0818:
MONITOR DESCRIPTION
The ECM detects whether or not the transfer shift lever is in neutral by monitoring the signal from the transfer neutral position switch.
If the ECM detects that the transfer shift lever is in neutral under the following conditions, the ECM will conclude that there is a malfunction of the transfer neutral position switch:
^ Transfer neutral position switch indicates that the transfer shift lever is in neutral.
^ Transfer shift lever is in the H position.
^ The vehicle is traveling at 25 km/h (16 mph) or more.
^ The transfer neutral position switch has been ON for more than 30 seconds.
If all of the above conditions are detected, the ECM will conclude that there is a malfunction of the transfer neutral position switch, illuminate the MIL and store the DTC.

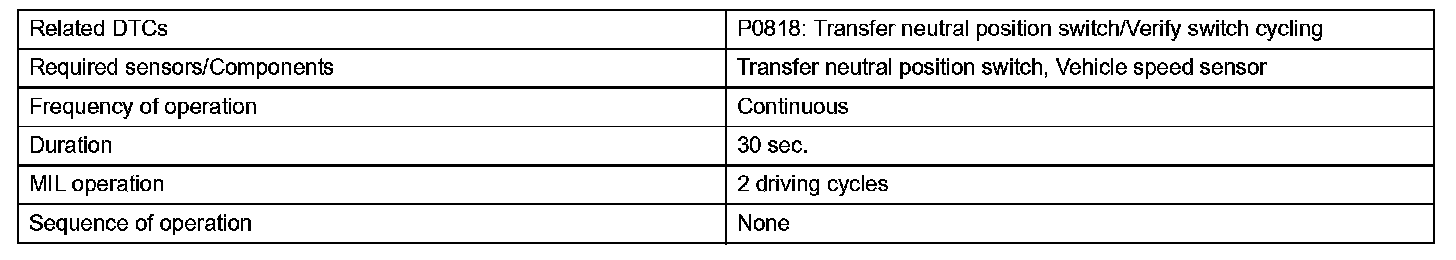

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
WIRING DIAGRAM:

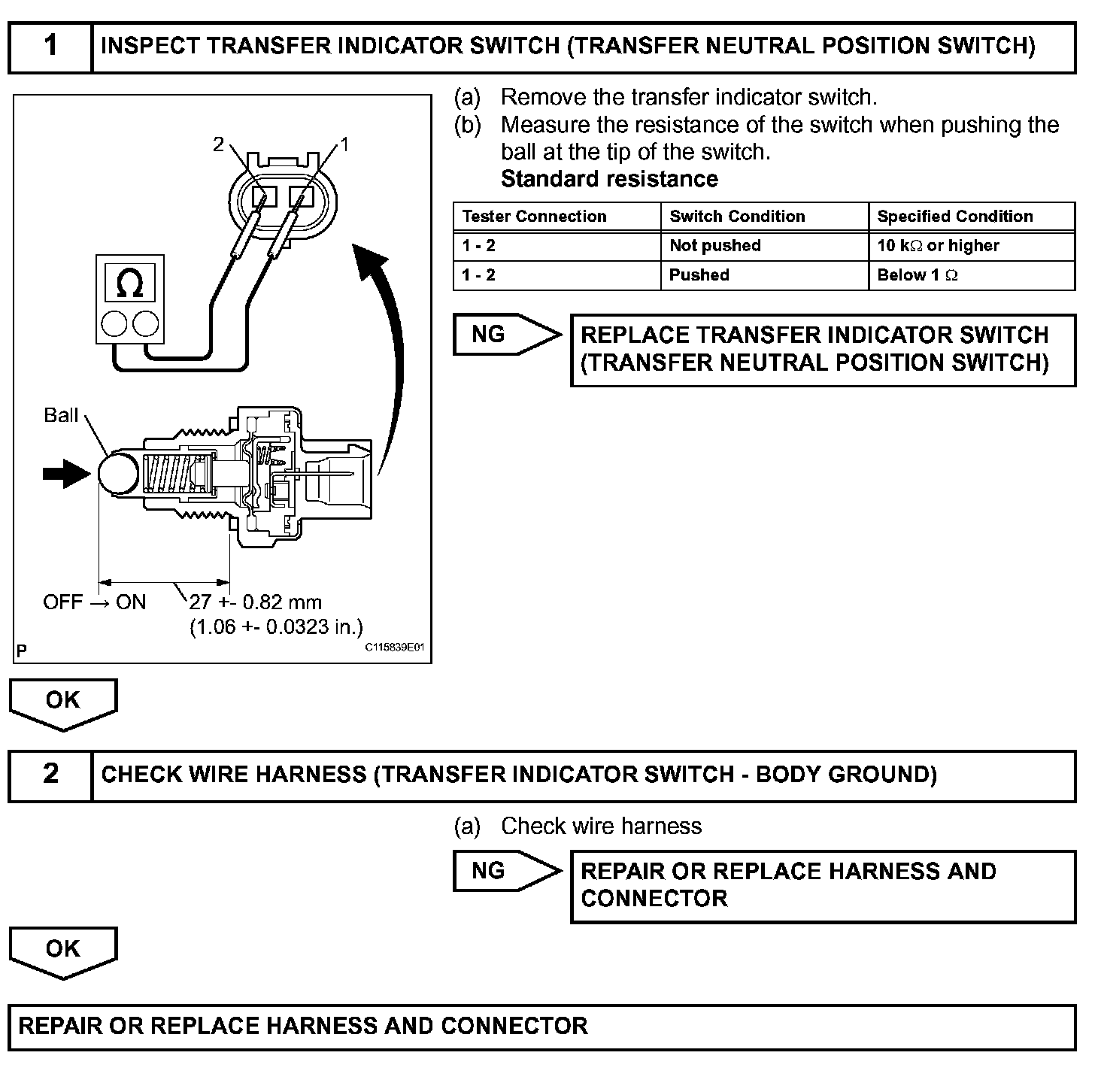

Steps 1-2:
