Suspension Control ( Automatic - Electronic )

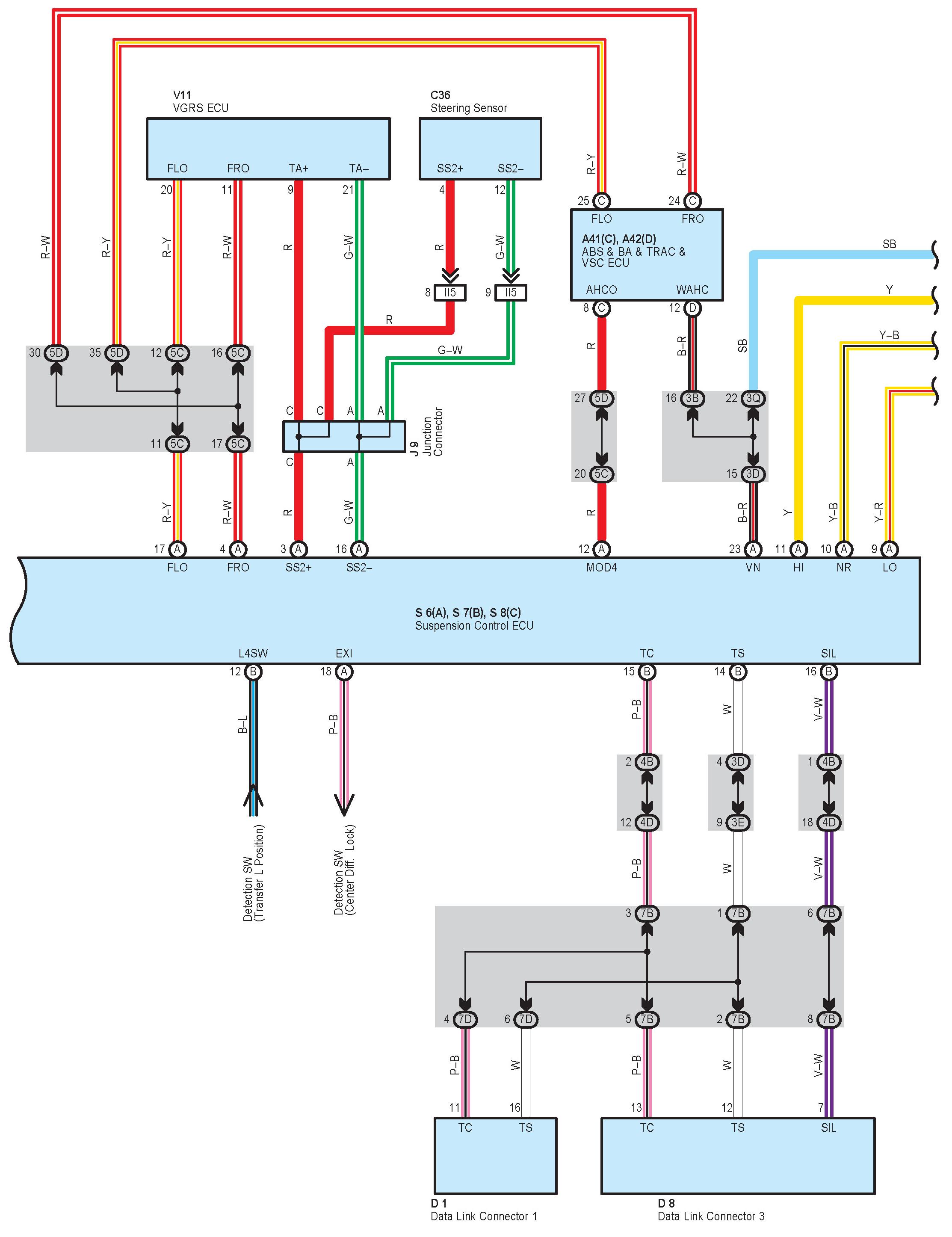

AHC and Adaptive Control Function Part 1:

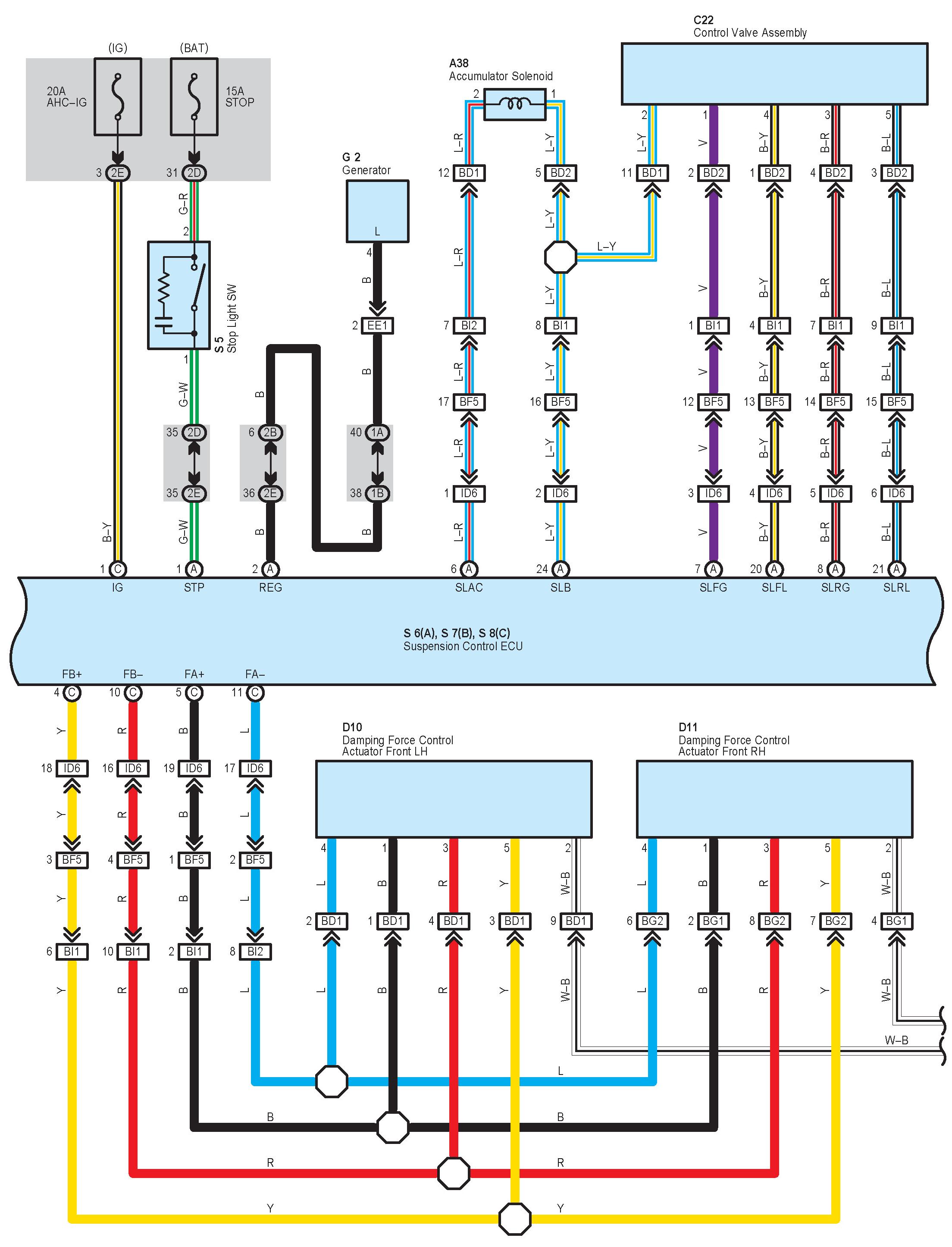

AHC and Adaptive Control Function Part 2:

AHC and Adaptive Control Function Part 3:

AHC and Adaptive Control Function Part 4:

AHC and Adaptive Control Function Part 5:

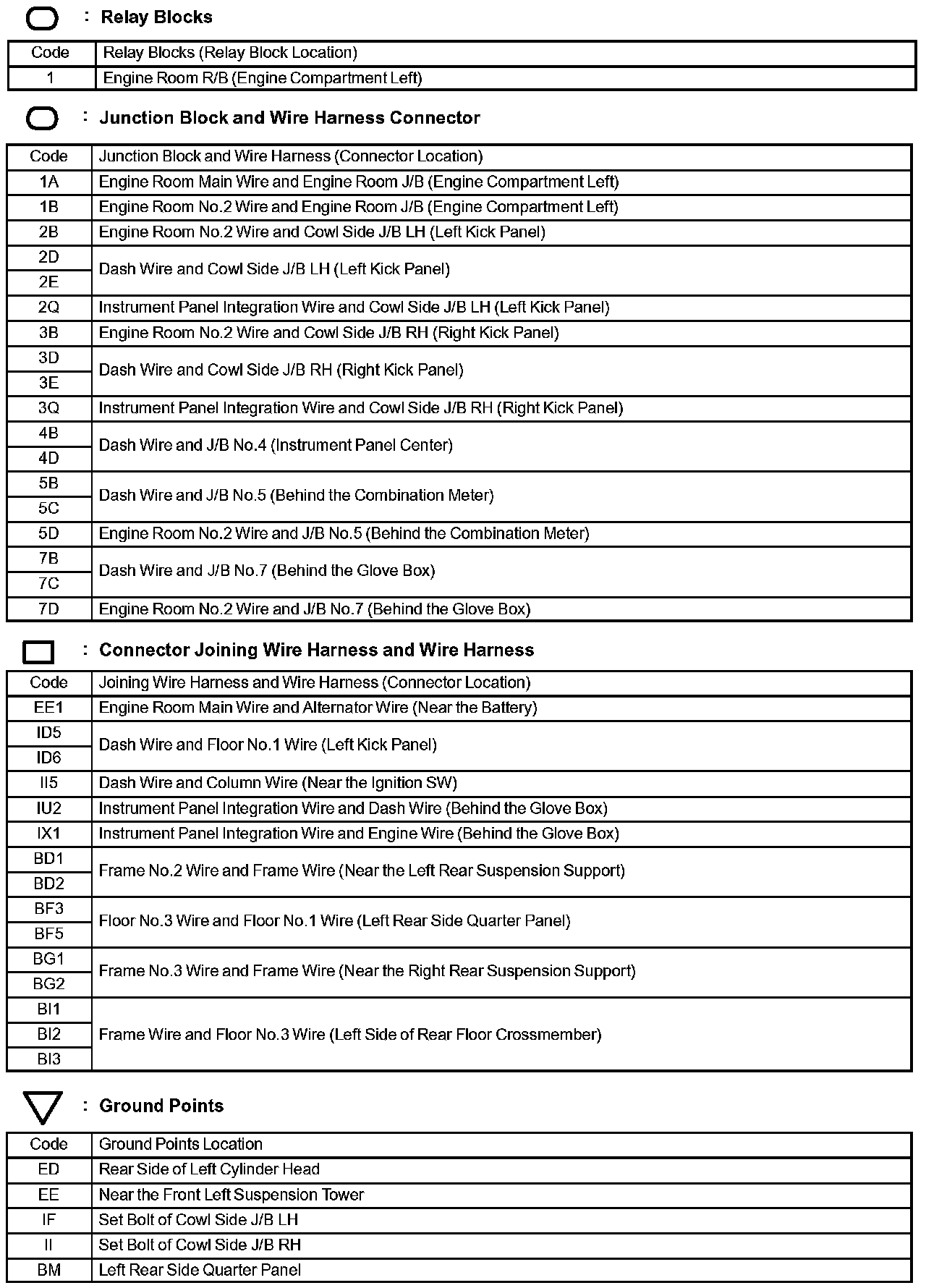

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
