Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Temperature Sensor:

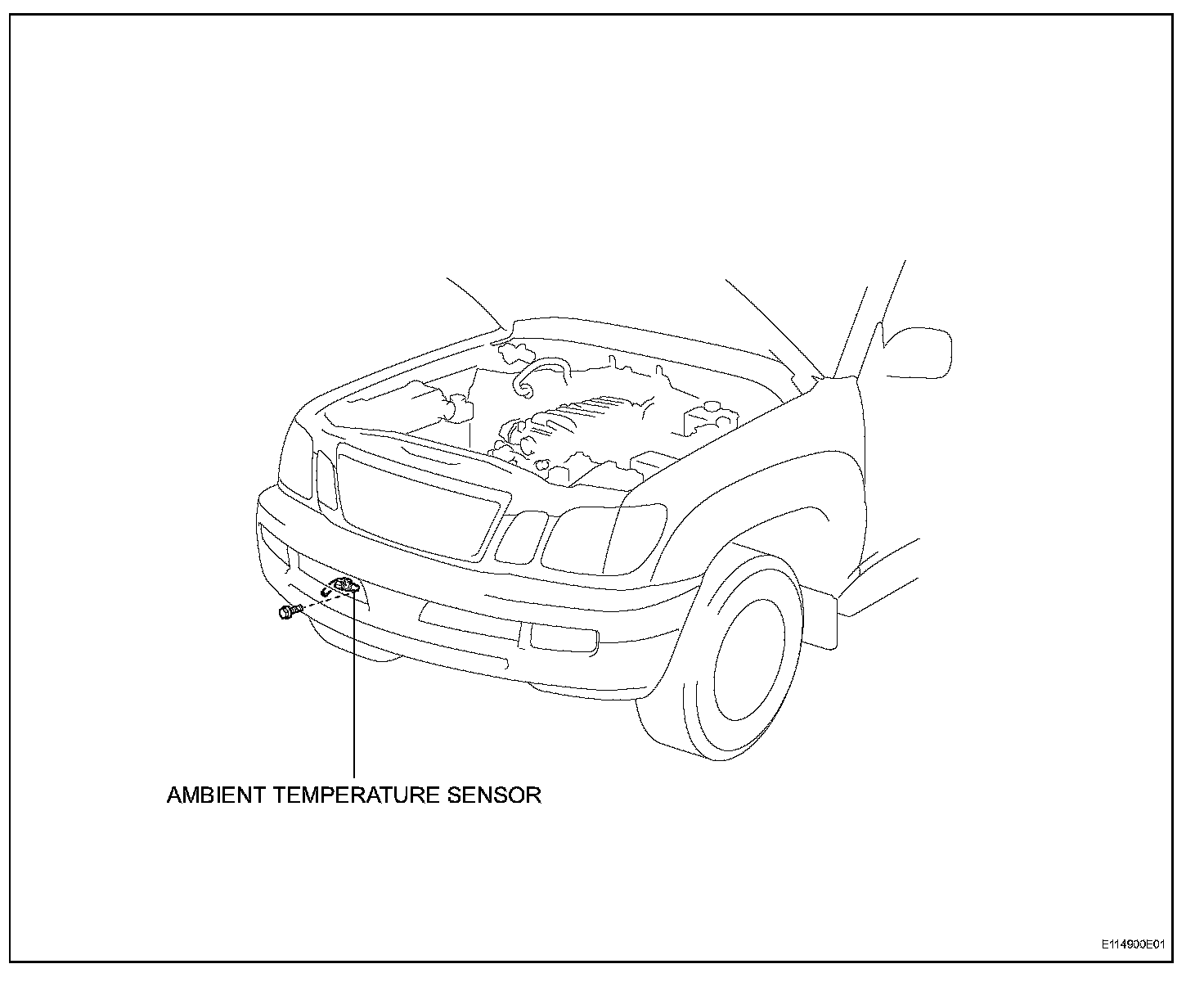

AMBIENT TEMPERATURE SENSOR

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

HINT: At the time of installation, perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

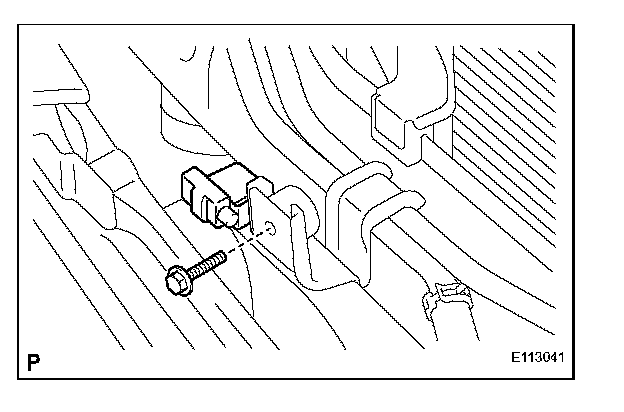

2. REMOVE AMBIENT TEMPERATURE SENSOR
a. Disconnect the connector.
b. Remove the bolt and sensor.

INSTALLATION
Installation is in the reverse order of removal.
