Blower Motor Relay: Testing and Inspection

ON-VEHICLE INSPECTION







1. CHECK BLOWER MOTOR CONTROL RELAY

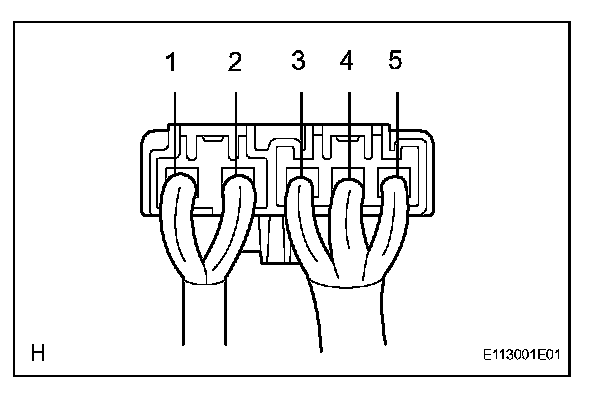

a. Connect the connector to the blower motor control relay and inspect the wire harness side connector from the backside as shown in the illustration.

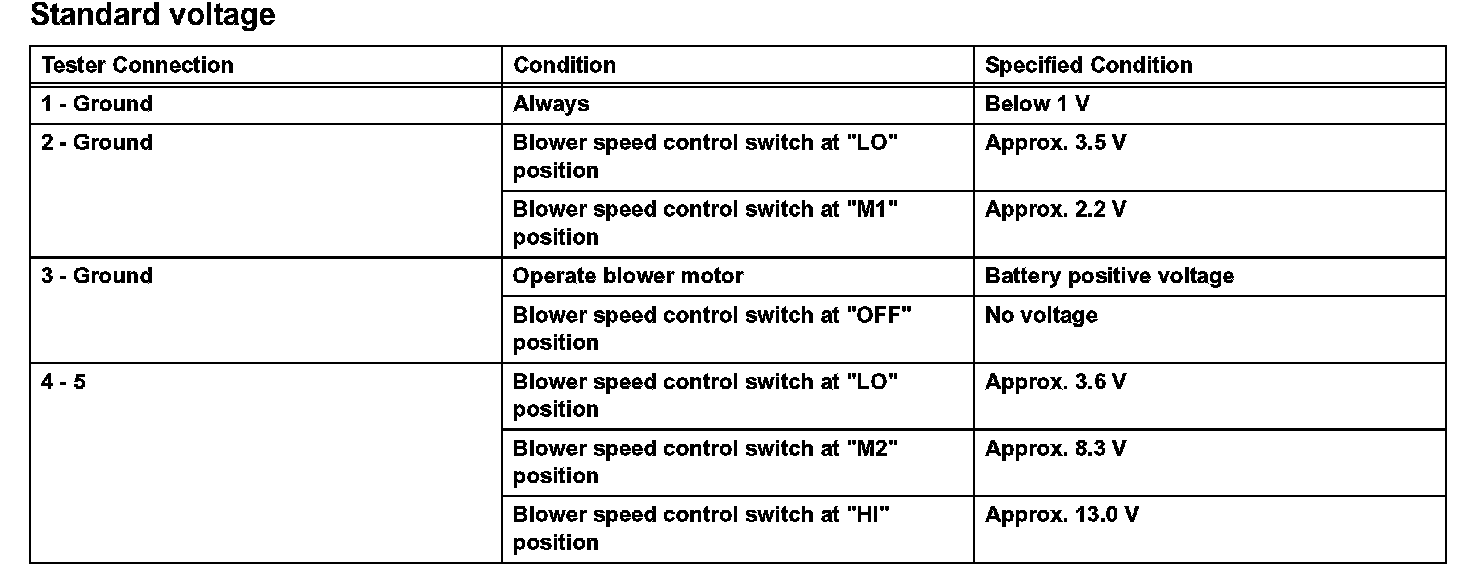

Test condition:
- Turn the ignition switch ON

If the result is not as specified, replace the relay.
