Control Module HVAC: Service and Repair

Air Conditioning Amplifier (for Rear Air Conditioning System):

AIR CONDITIONING AMPLIFIER (for Rear Air Conditioning System)

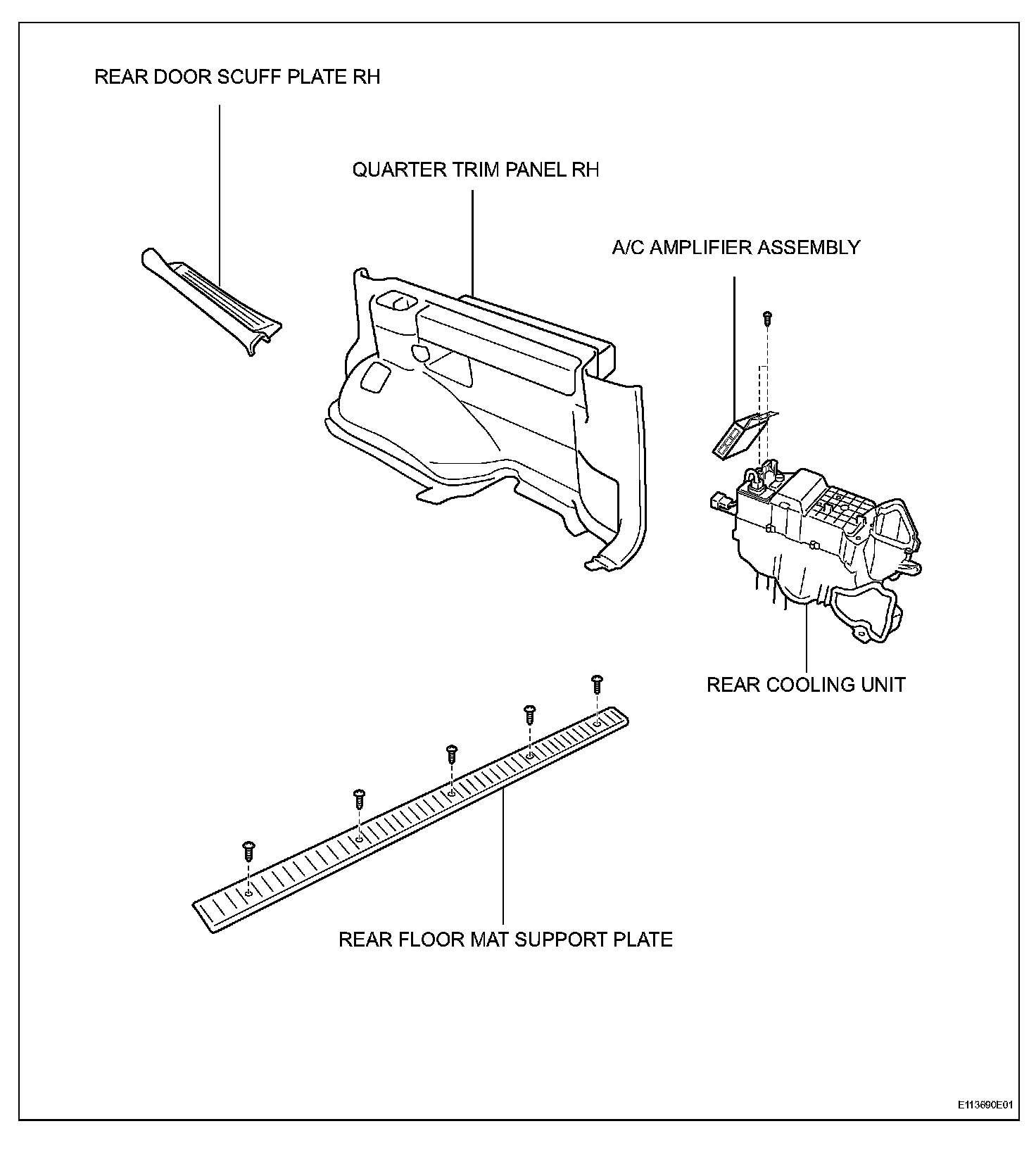

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

HINT: At the time of installation, perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

2. REMOVE REAR DOOR SCUFF PLATE RH
3. REMOVE REAR FLOOR MAT SUPPORT PLATE
4. REMOVE QUARTER TRIM PANEL RH

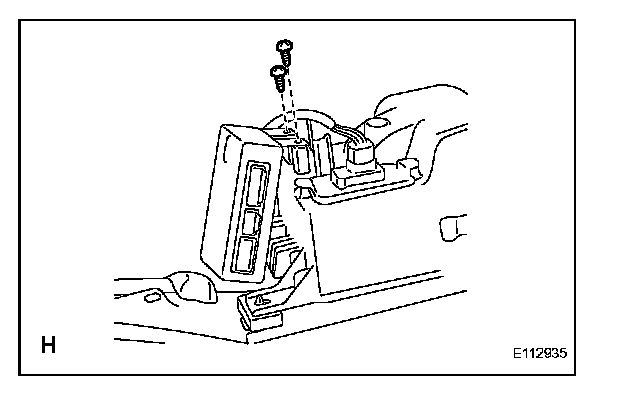

5. REMOVE A/C AMPLIFIER ASSEMBLY
a. Disconnect the connectors.
b. Remove the 2 screws and A/C amplifier.

INSTALLATION
Installation is in the reverse order of removal.
