Center Mounted Brake Lamp: Testing and Inspection
HIGH MOUNTED STOP LIGHT ASSEMBLYON-VEHICLE INSPECTION

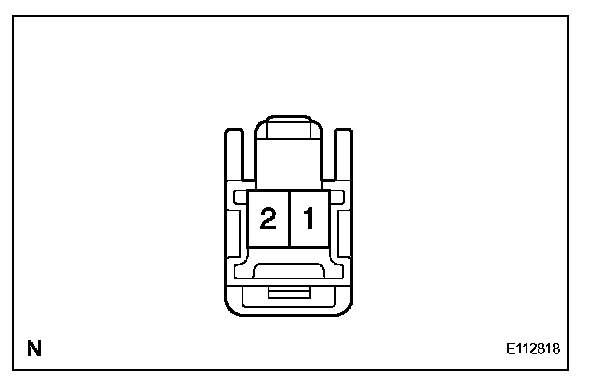

1. INSPECT HI-MOUNTED STOP LIGHT ASSEMBLY

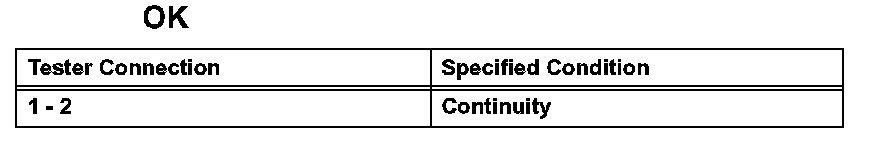

a. Measure the continuity of the light.
If the result is not as specified, replace the light assembly.
ON-VEHICLE INSPECTION
1. INSPECT HI-MOUNTED STOP LIGHT ASSEMBLY
a. Measure the continuity of the light.
If the result is not as specified, replace the light assembly.
