Dome Lamp: Testing and Inspection
REAR ROOM LIGHT ASSEMBLYON-VEHICLE INSPECTION

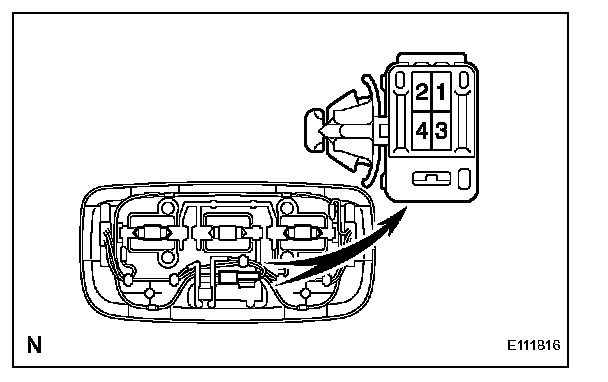

1. INSPECT ROOM LIGHT ASSEMBLY

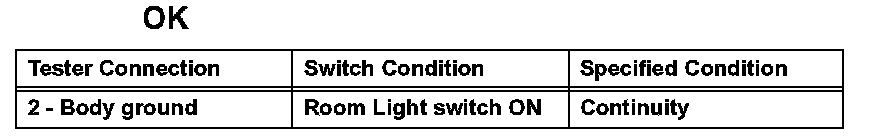

a. Measure the continuity of the light.
If the result is not as specified, replace the light assembly.
2. INSPECT REAR ROOM LIGHT ASSEMBLY

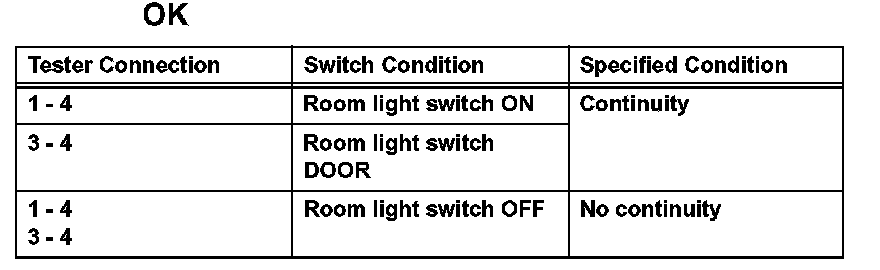

a. Measure the continuity of the light.
If the result is not as specified, replace the light assembly.

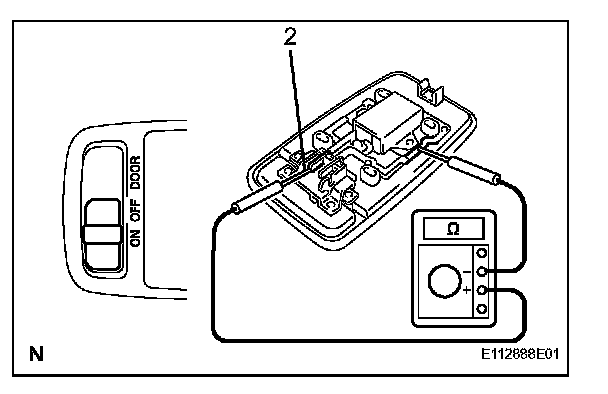

b. Measure the continuity of the light.
If the result is not as specified, replace the light assembly.
