Key Cylinder Lamp: Testing and Inspection

IGNITION KEY CYLINDER LIGHT

ON-VEHICLE INSPECTION

1. INSPECT IGNITION KEY ILLUMINATION
a. Check operation of the ignition key illumination.

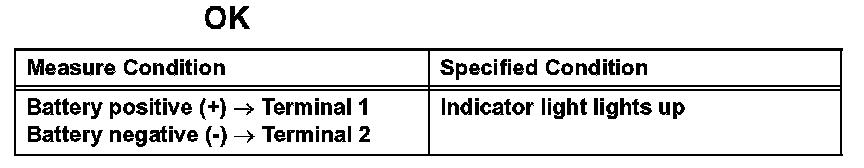

1. Apply battery to the ignition key illumination and check operation of the ignition key illumination.

If the result is not as specified, replace the key illumination.
