Symptom Related Diagnostic Procedures
PROBLEM SYMPTOMS TABLEProblem Symptoms Table-Lighting System:

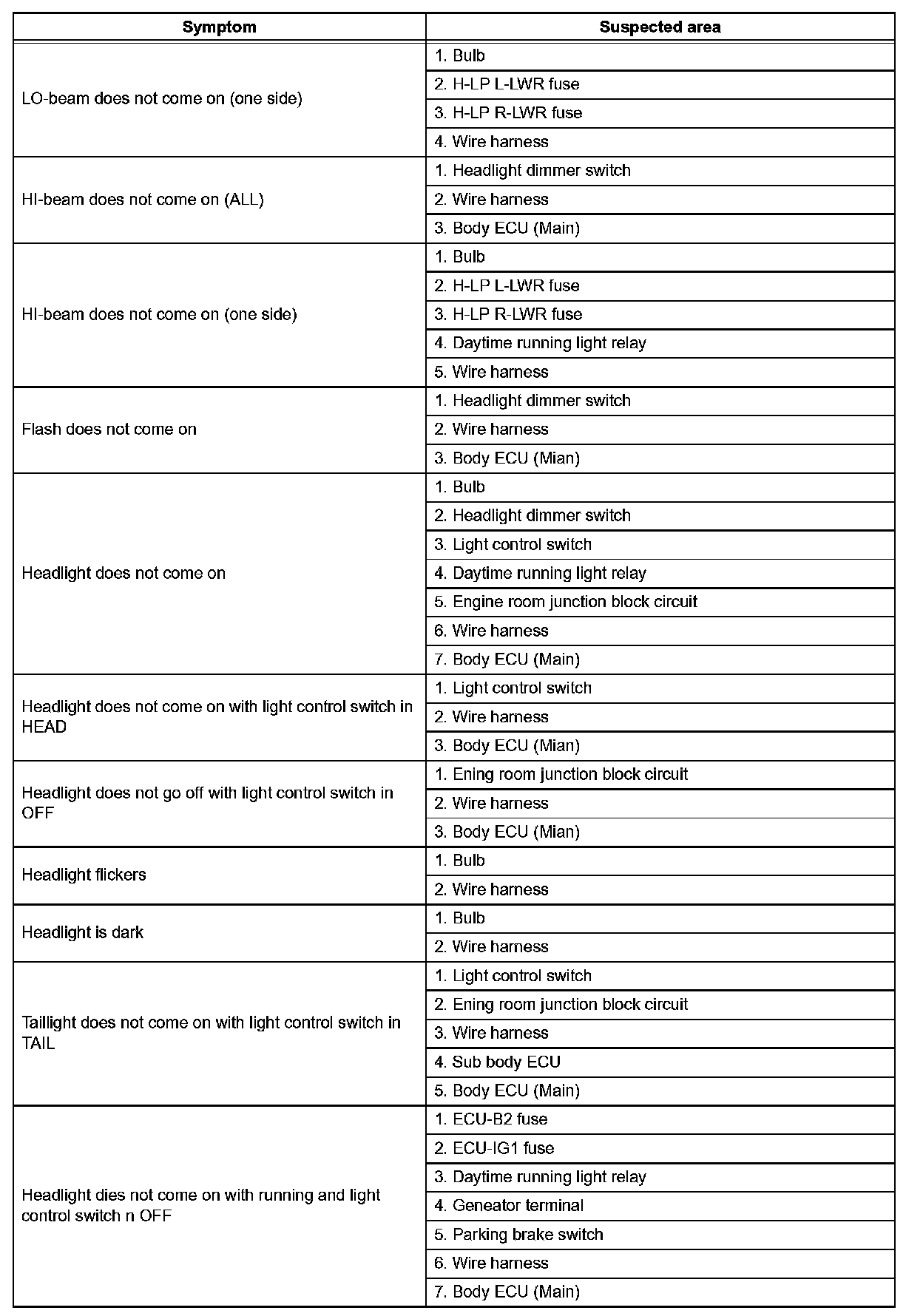

Problem Symptoms Table-Headlight And Taillight System (Part 1):
Problem Symptoms Table-Headlight And Taillight System (Part 2):
Problem Symptoms Table-Hazard Warning System:

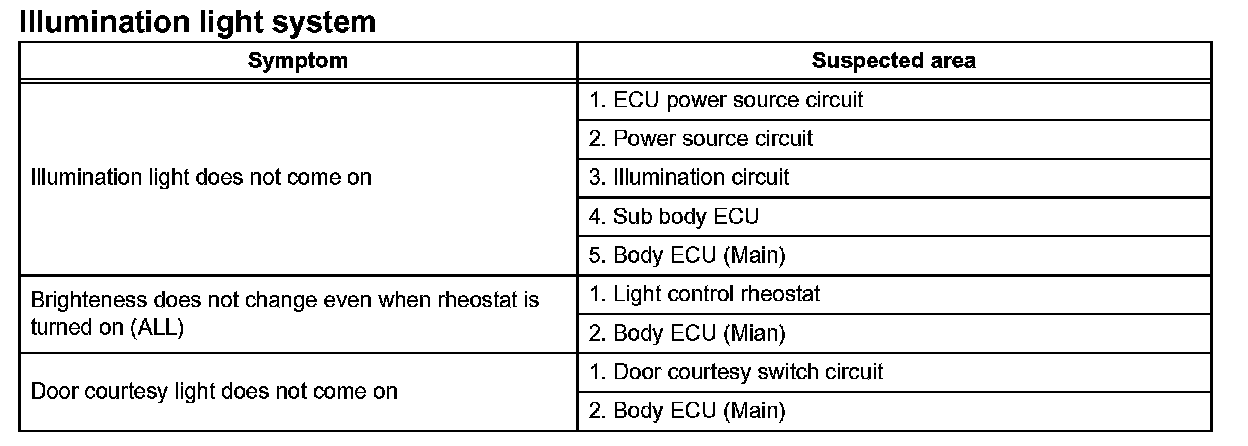

Problem Symptoms Table-Illumination Light System:
Problem Symptoms Table-Fog Light System:
Problem Symptoms Table-Turn Signal Light And Hazard Warning Light System:

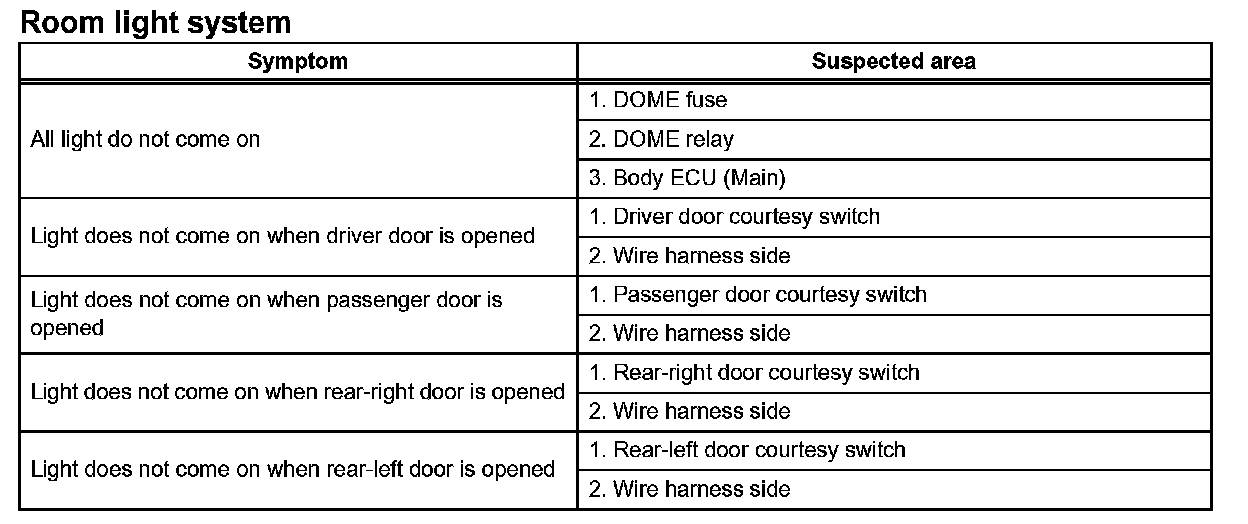

Problem Symptoms Table-Room Light System (Part 1):

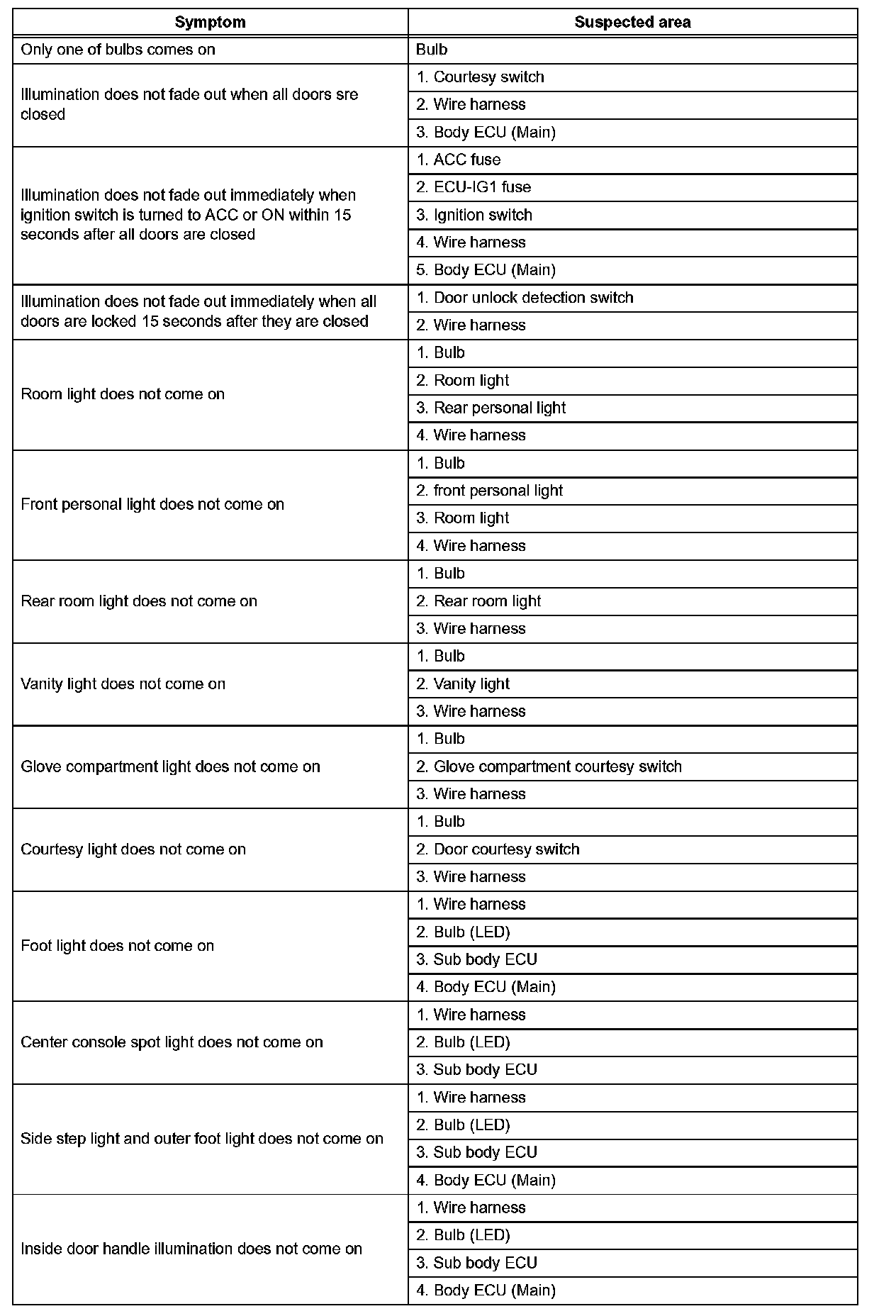

Problem Symptoms Table-Room Light System (Part 2):

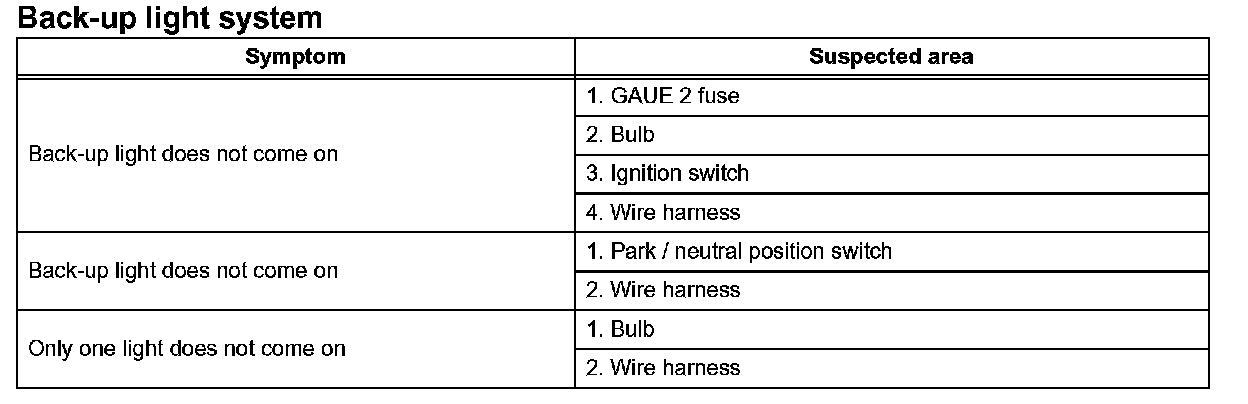

Problem Symptoms Table-Back-up Light System:

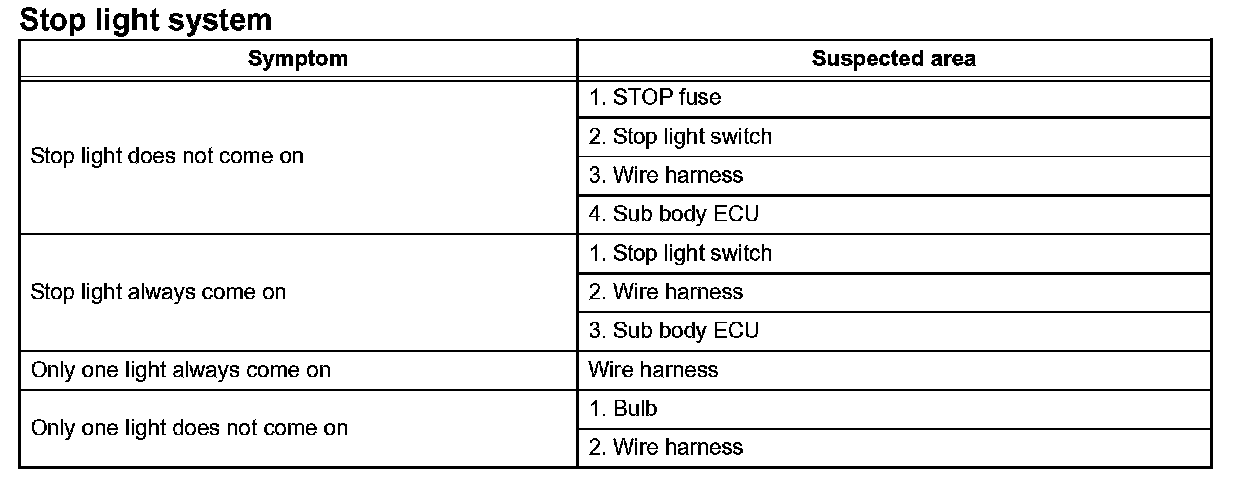

Problem Symptoms Table-Stop Light System:
HINT: Use the table given to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
