Fuse: Locations

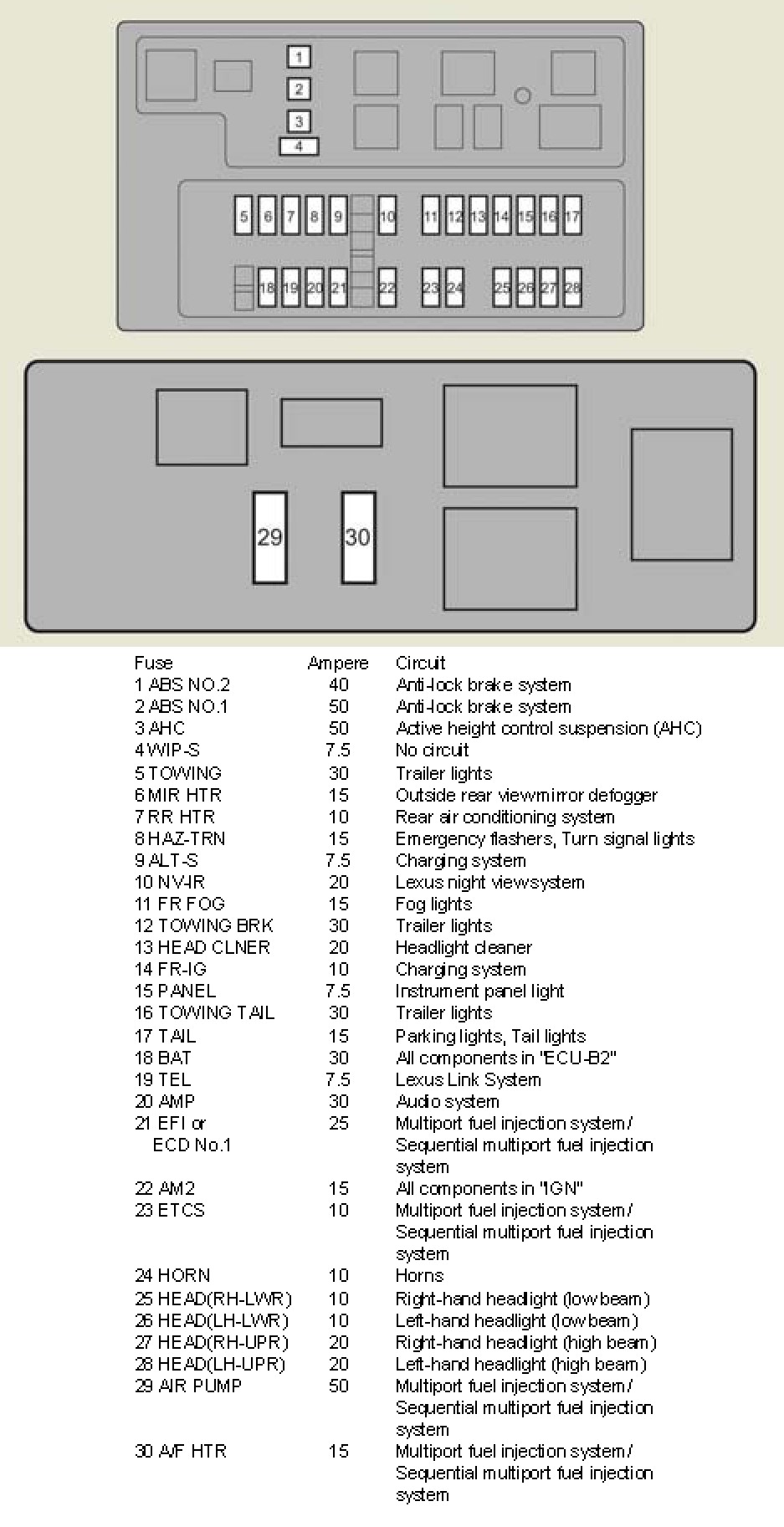

Engine Compartment:

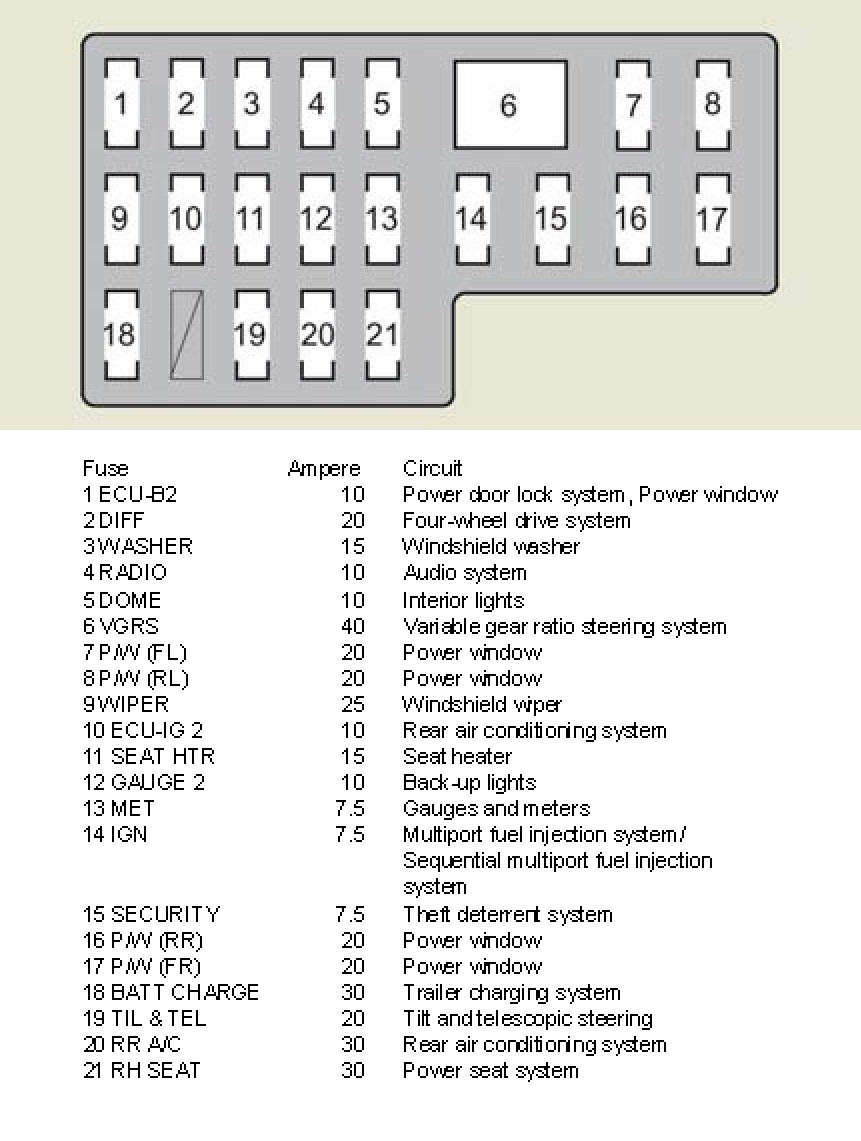

Driver's Side Instrument Panel:

Passenger's Side Instrument Panel:

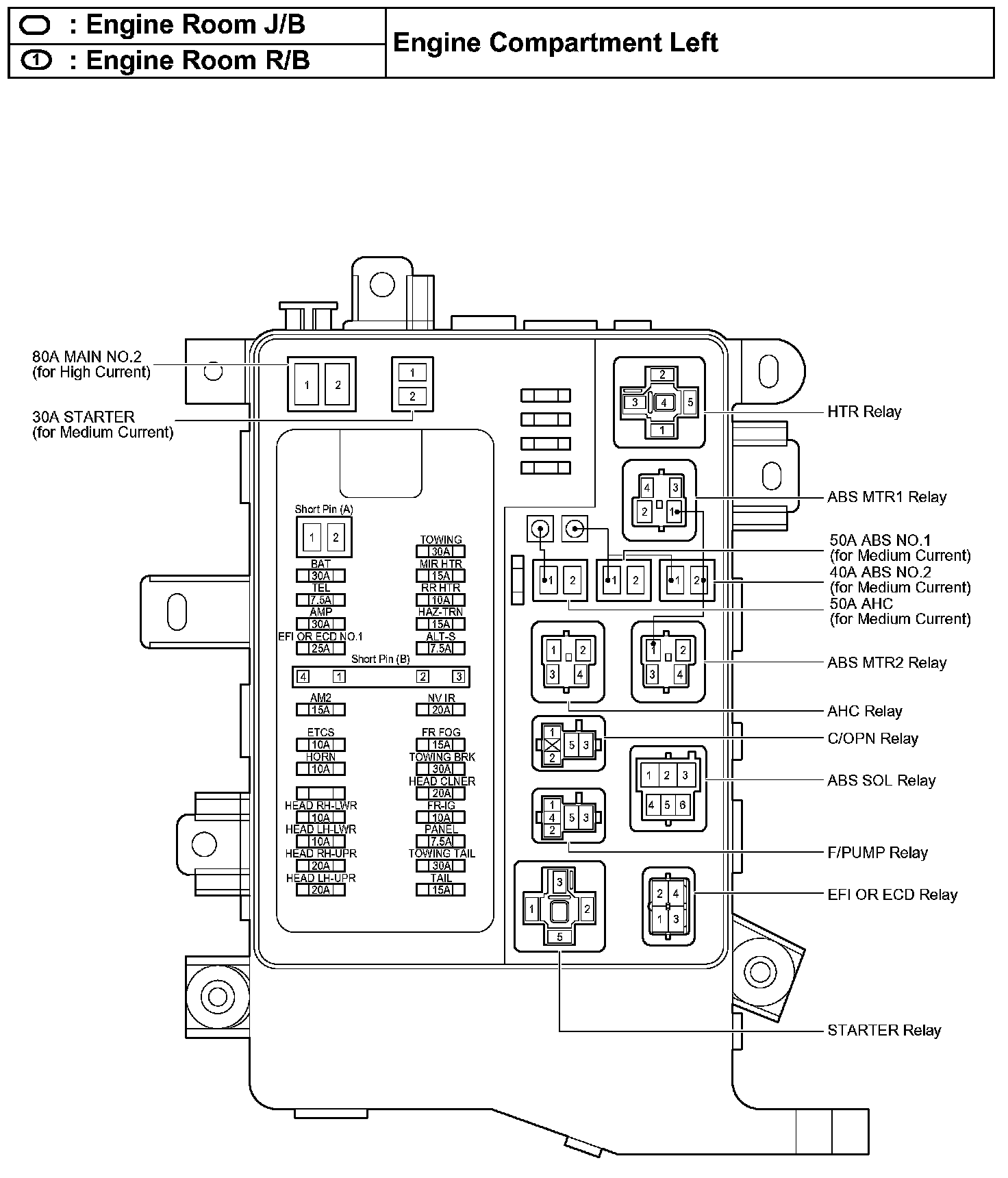

Engine Room J/B,R/B - Engine Compartment Left:

Cowl Side J/B LH - Left Kick Panel:

Cowl Side J/B RH - Right Kick Panel:

Engine Room J/B No.8, R/B No.8 - Near The Front Left Suspension Tower:
