Multiple Junction Connector: Locations

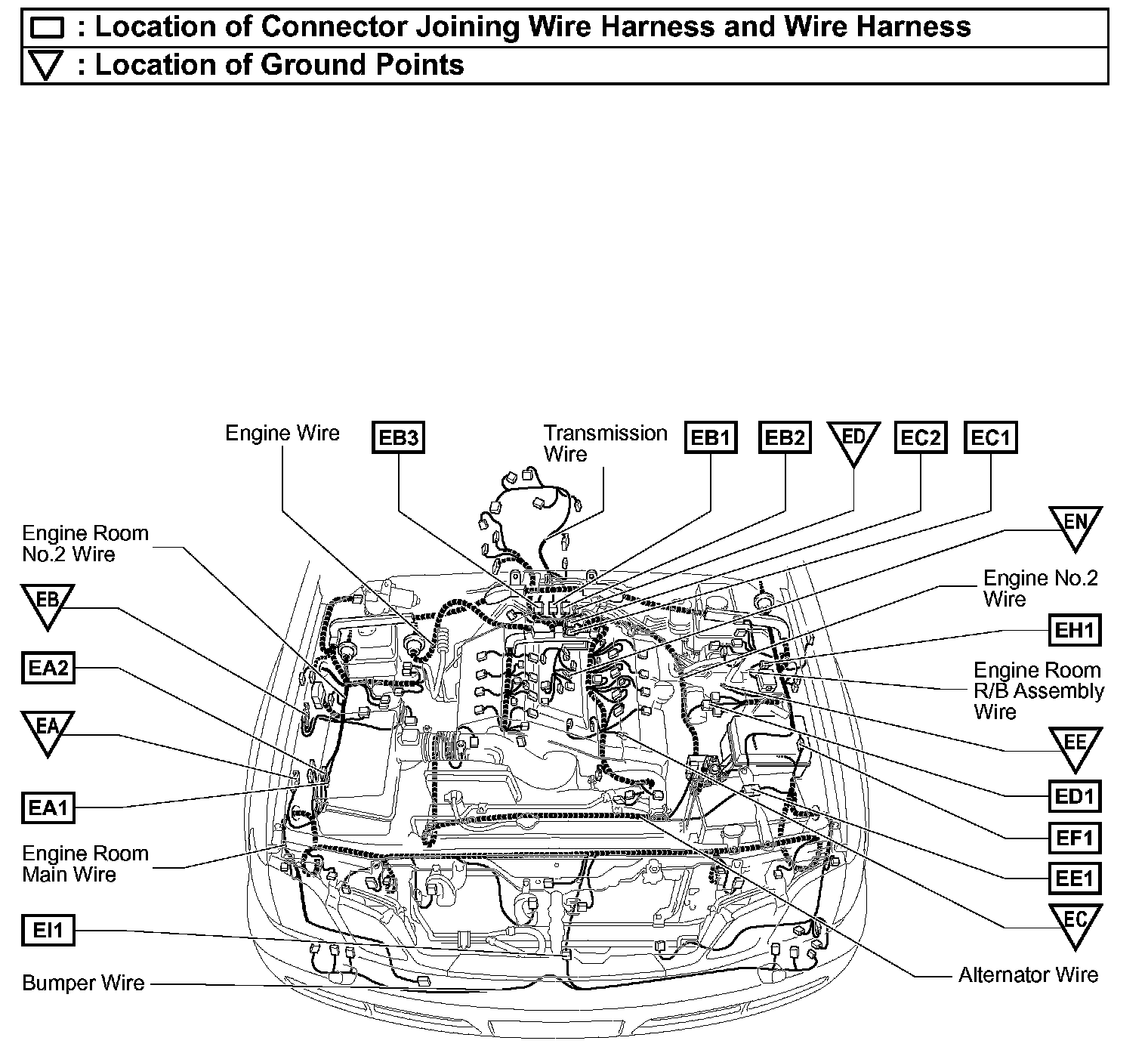

EA1 - EI1 , EA - EN:

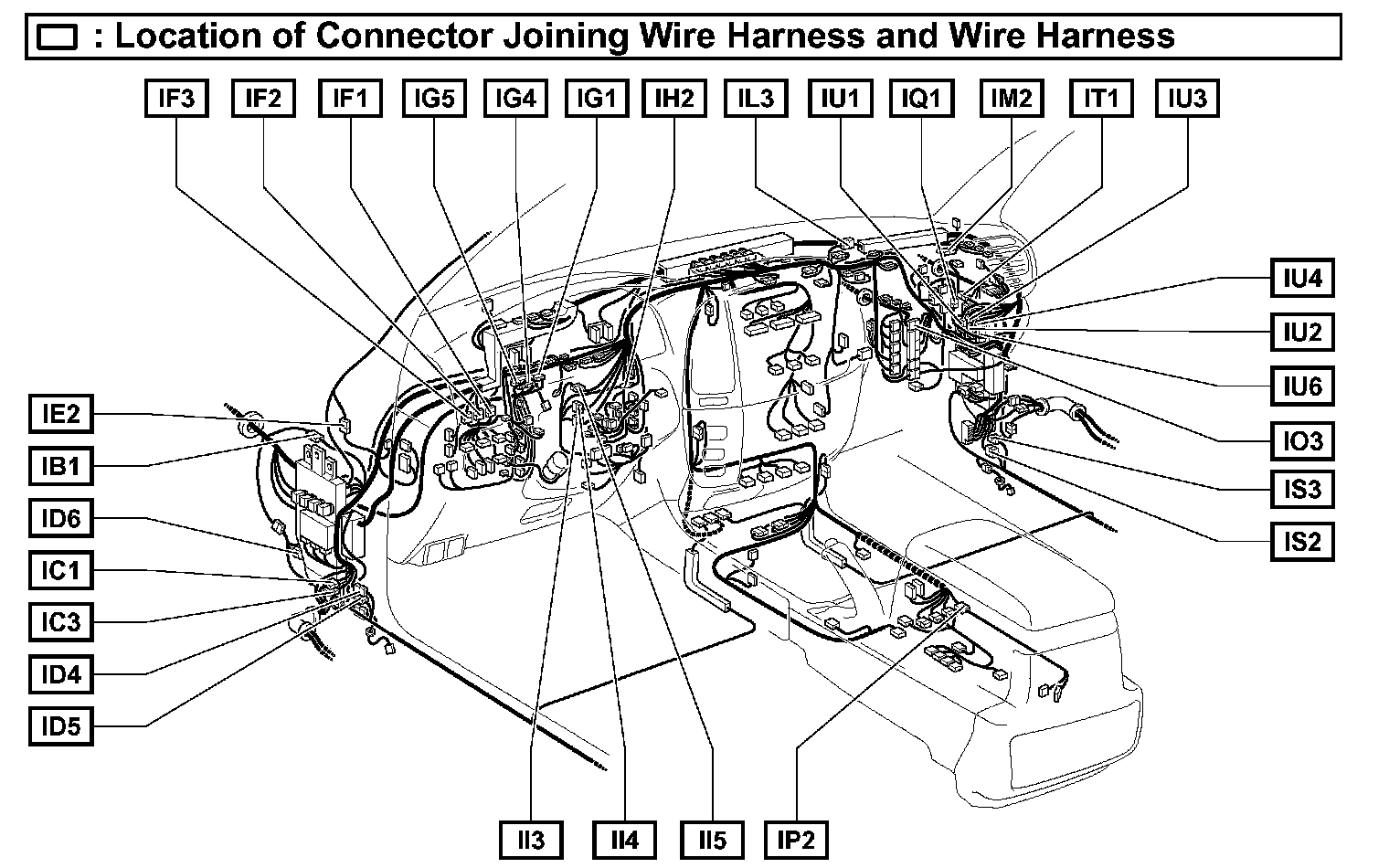

IB1 - IU6:

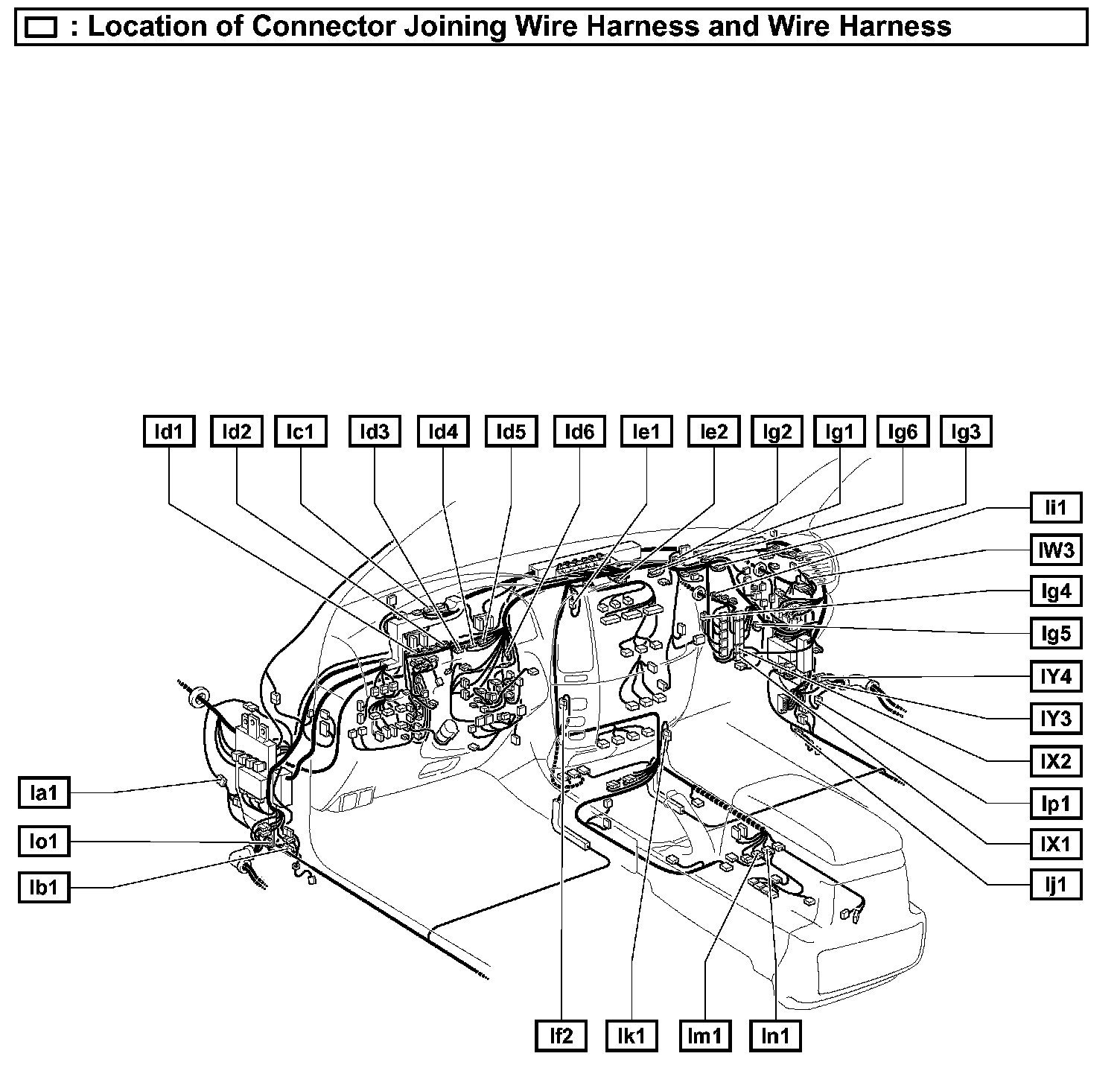

Ia1 - Iy4:

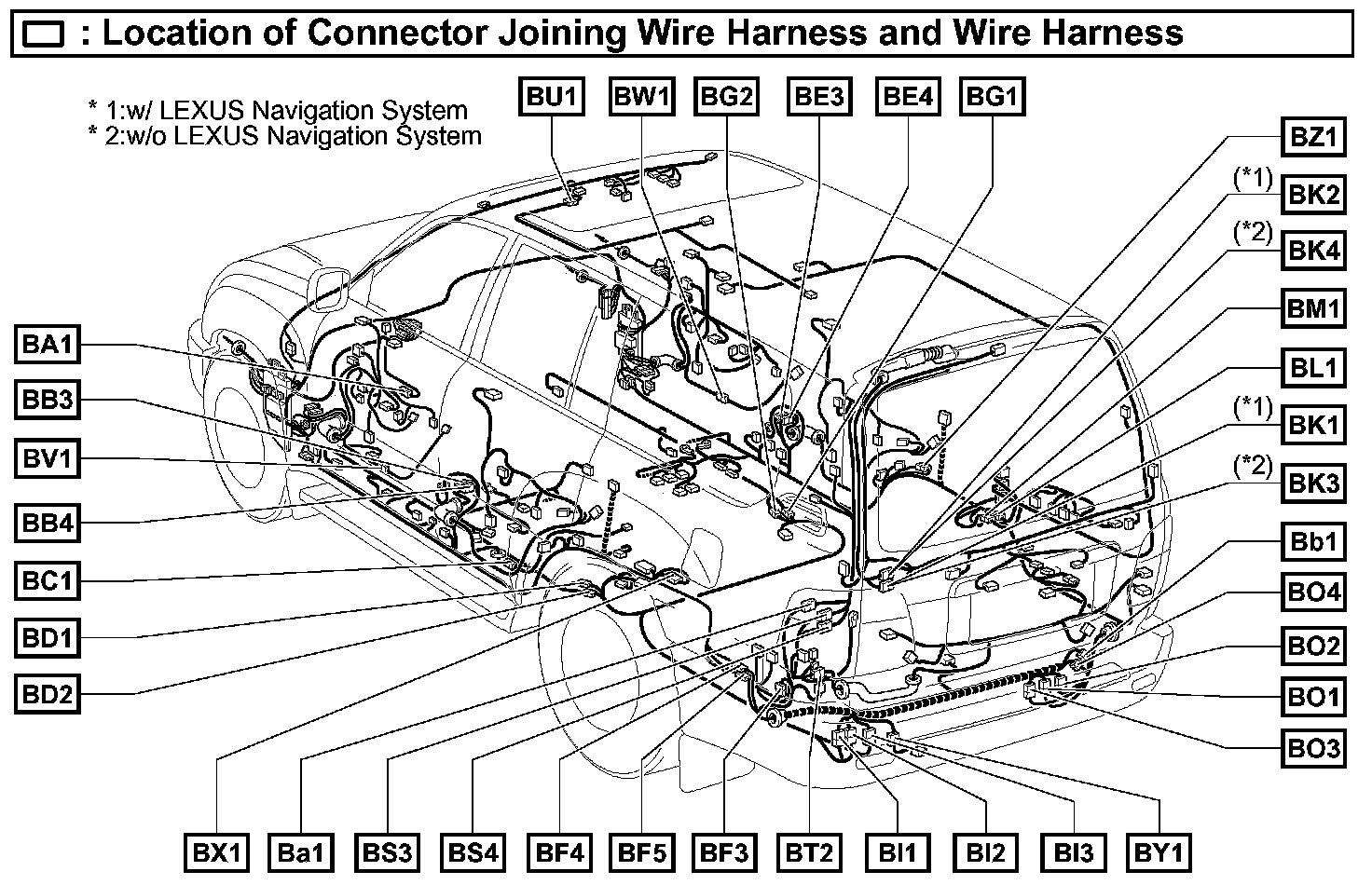

BA1 - BZ1:

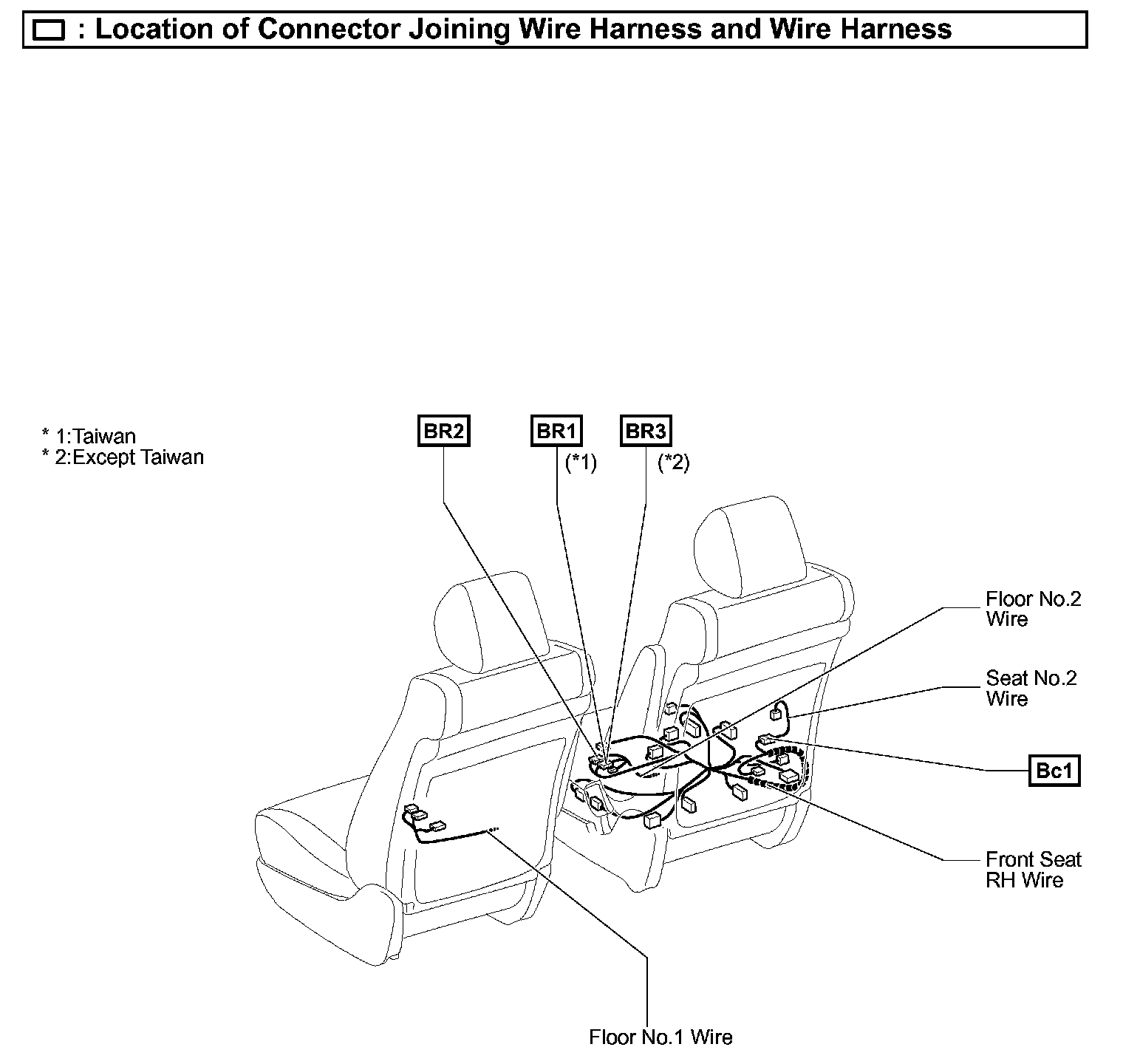

Bc1 - BR3:
