Seat Belt Systems: Service and Repair

Front Seat Inner Belt Assembly:

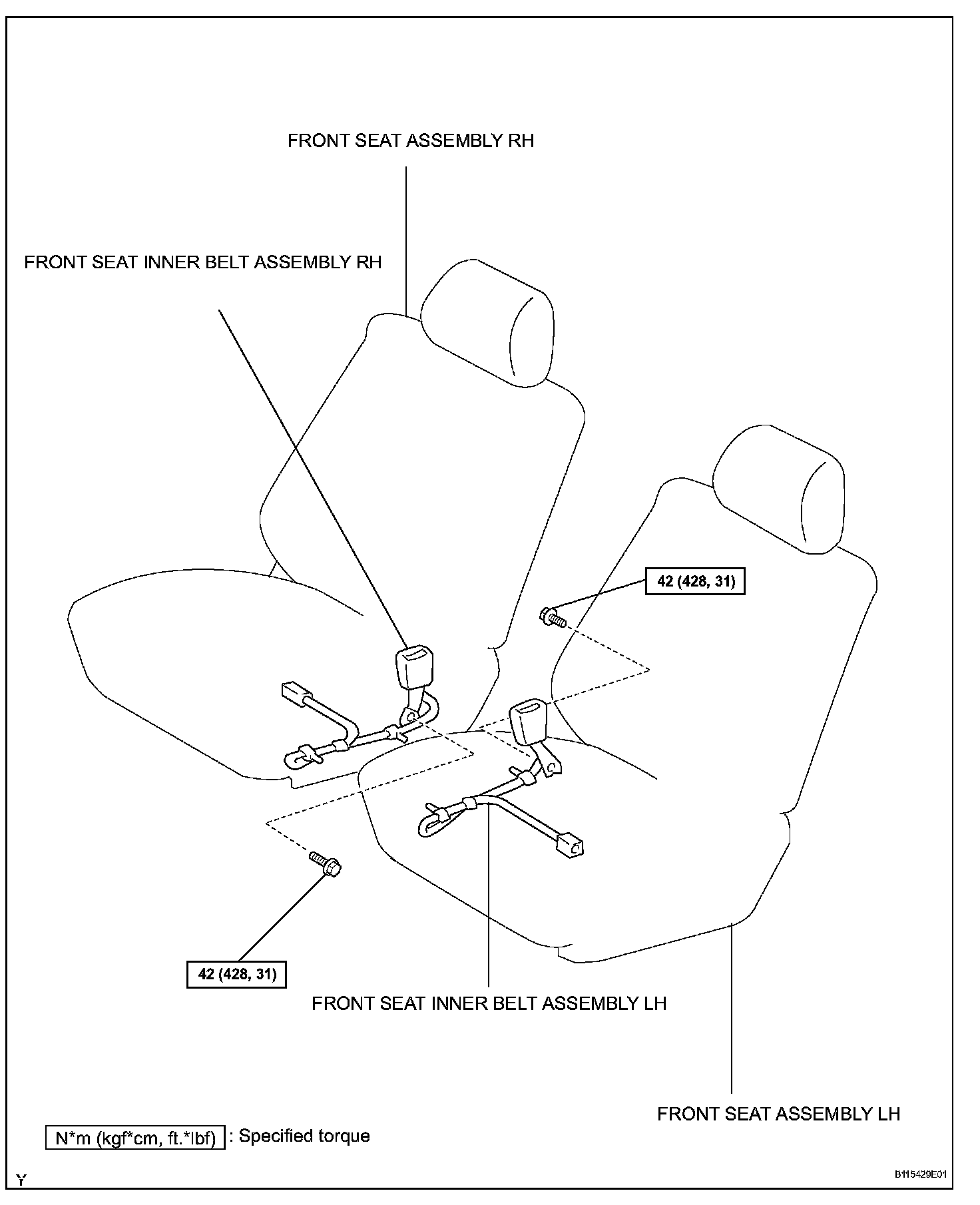

FRONT SEAT INNER BELT ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT SEAT INNER BELT ASSEMBLY
a. Disconnect the connector.
b. Remove the seat belt's wire harness clamp.
c. Remove the bolt and seat belt.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL FRONT SEAT INNER BELT ASSEMBLY
a. Install the seat belt with the bolt.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

b. Install the seat belt's wire harness clamp.
c. Connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
