Headlamp Washer Motor: Testing and Inspection

ON-VEHICLE INSPECTION




1. INSPECT HEADLIGHT CLEANER MOTOR OPERATION

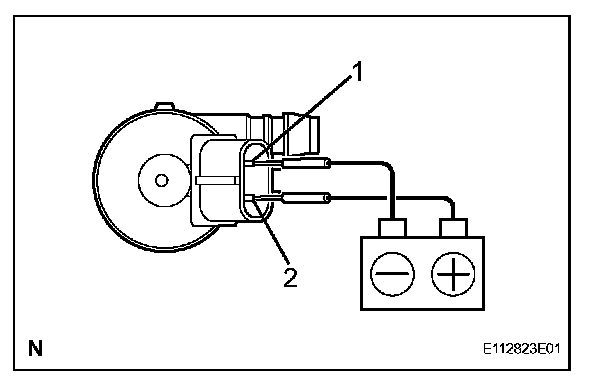

a. Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 1, and check that the motor operates.

NOTE: These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.

If operation is not as specified, replace the motor.
