Windshield Washer Spray Nozzle: Service and Repair

REMOVAL




1. REMOVE WINDSHIELD WASHER NOZZLE
a. Disconnect the washer hose.

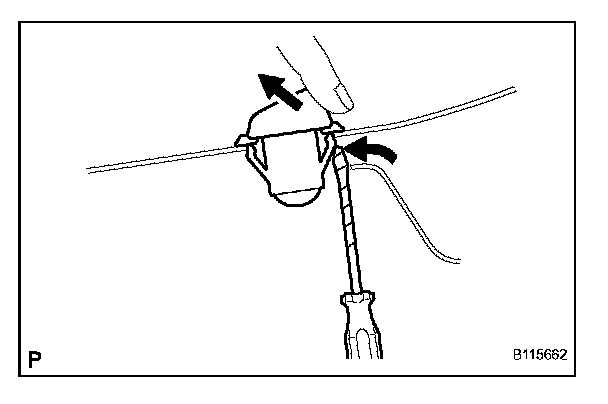

b. Using a screwdriver, remove the washer nozzle.

HINT: Tape the screwdriver tip before use.

c. Employ the same manner described above to the other side.

2. REMOVE CENTER BACK DOOR GARNISH

3. REMOVE REAR WASHER NOZZLE
a. Disconnect the washer hose.
b. Using a screwdriver, remove the washer nozzle.

HINT: Tape the screwdriver tip before use.

INSTALLATION

1. INSTALL WINDSHIELD WASHER NOZZLE
2. INSTALL REAR WASHER NOZZLE
3. INSTALL CENTER BACK DOOR GARNISH
