C2192

DTC C2192/92 Select Switch Error (Test Mode DTC)

DESCRIPTION
The tire pressure warning select switch has 2 positions: "MAIN" and "2nd". 2 sets of ID (2 sets of tires) for the tire pressure warning valve and transmitter can be registered to the tire pressure warning ECU.

C2192/92:

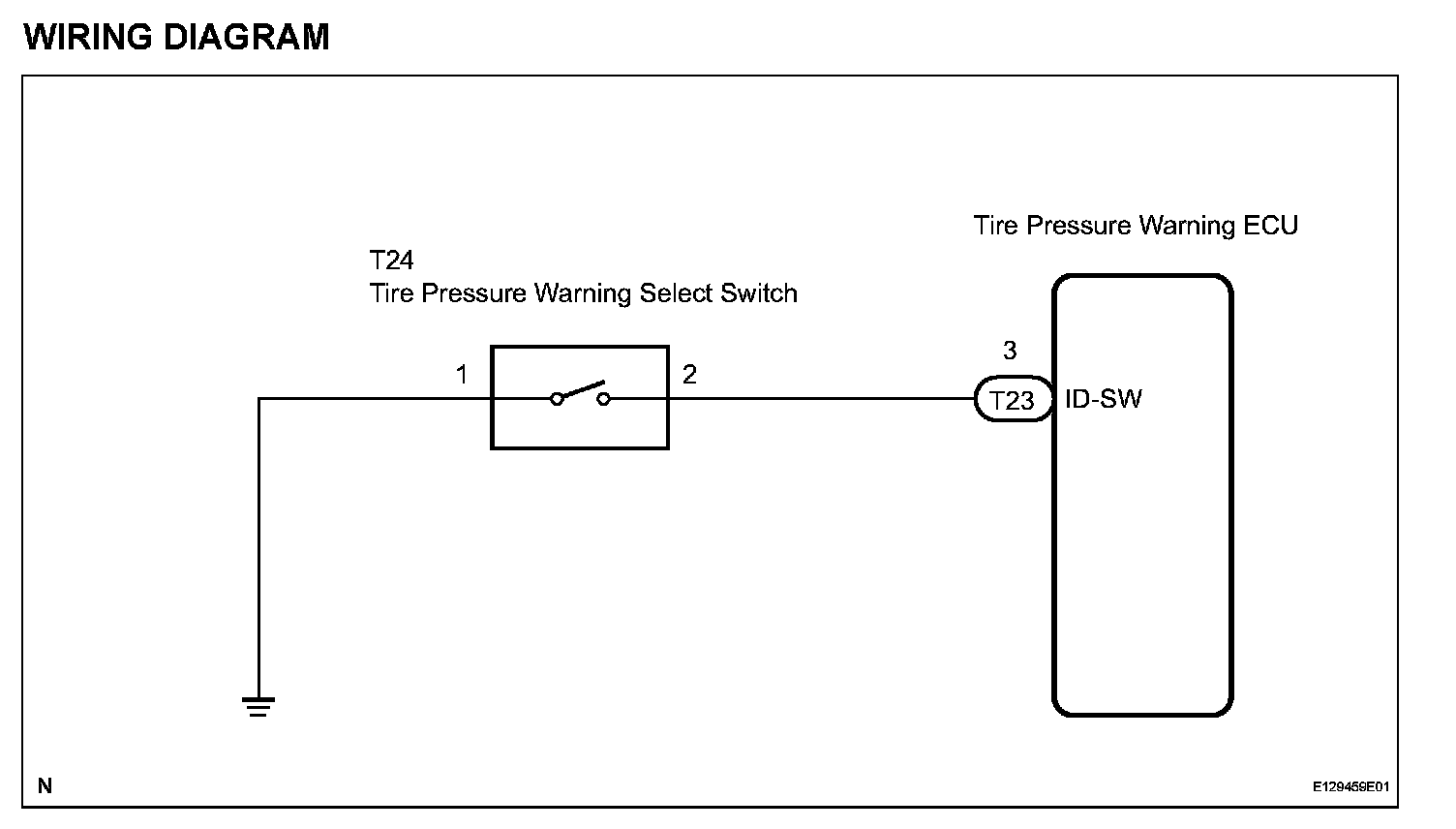

WIRING DIAGRAM:

INSPECTION PROCEDURE

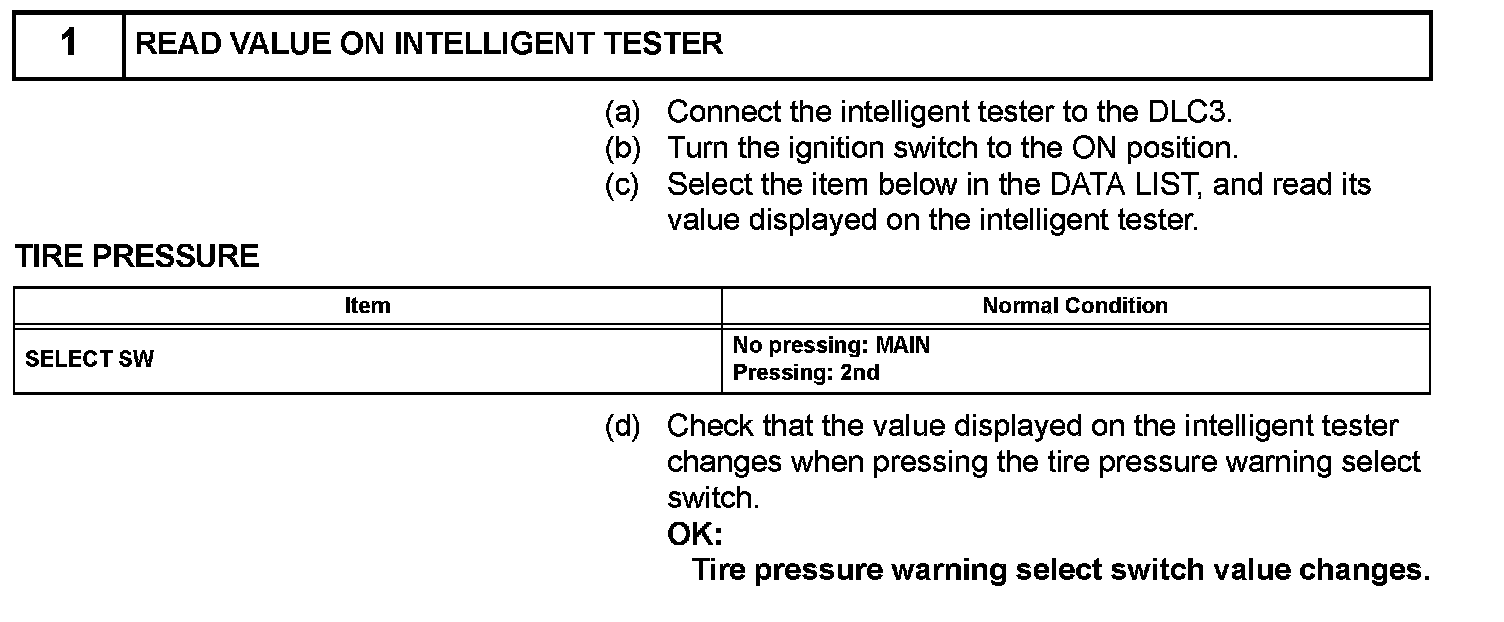

Step 1(Part 1):

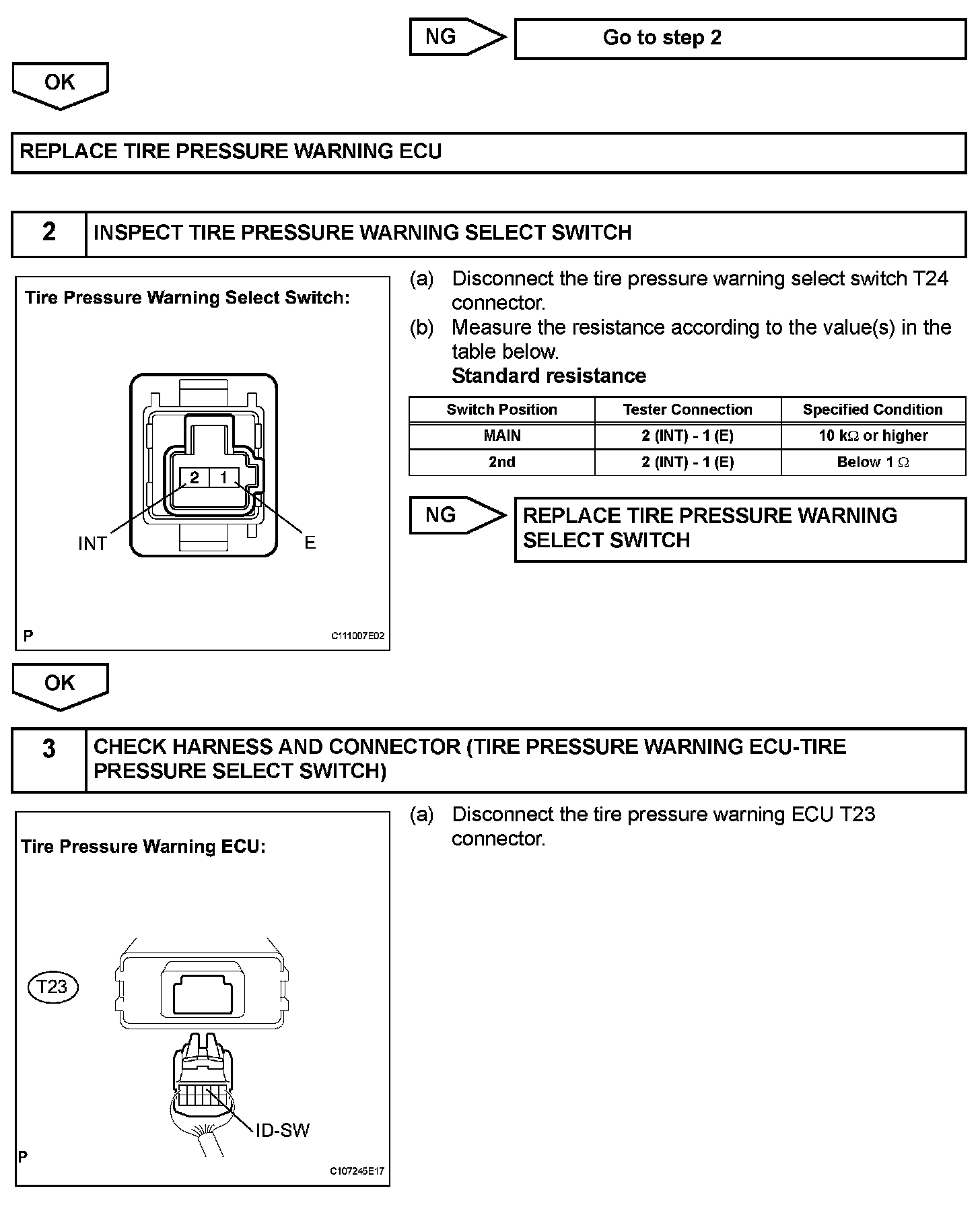

Steps 1(Part 2)-3(Part 1):

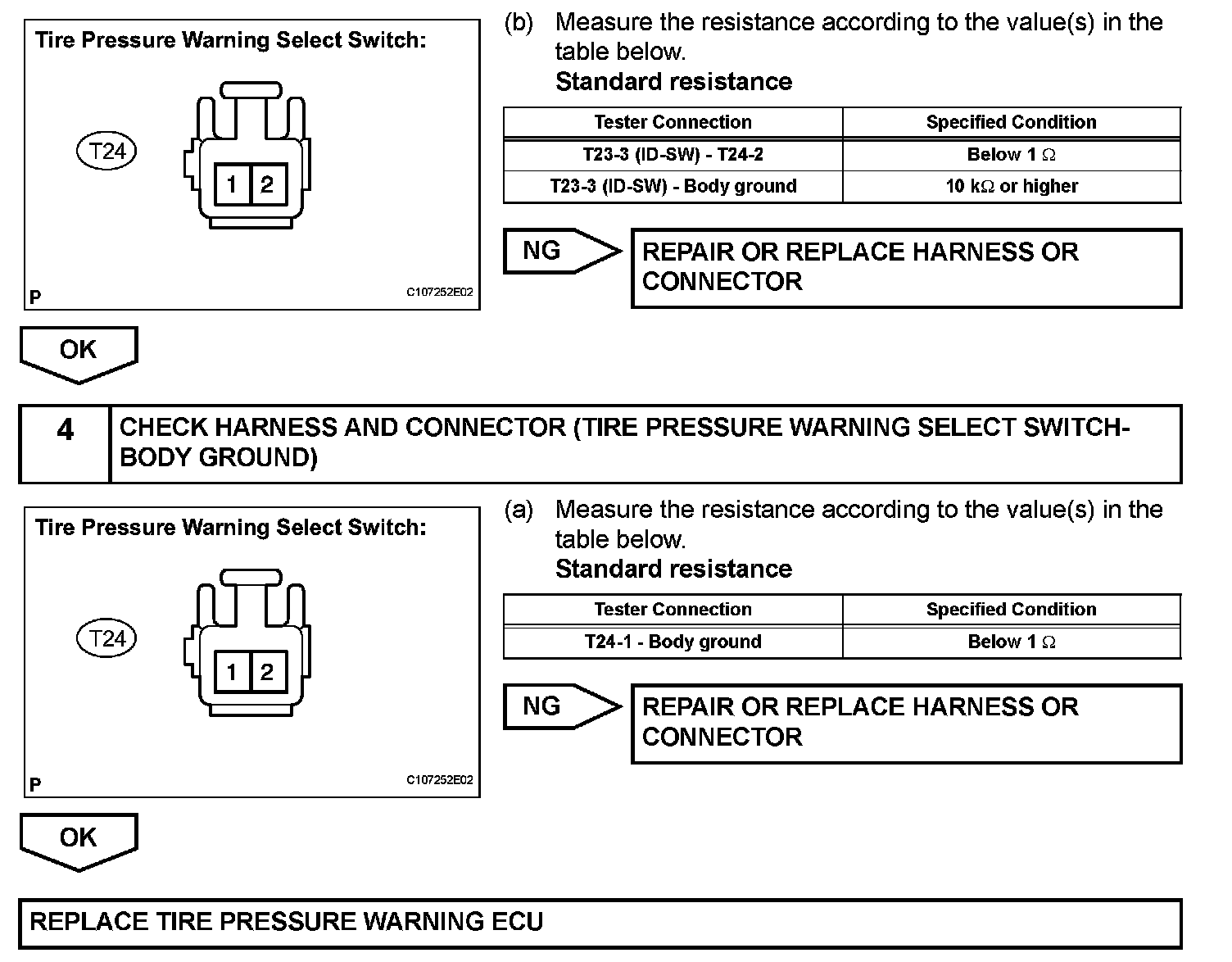

Steps 3(Part 2)-4:
