Air Conditioning System

DIAGNOSTIC TROUBLE CODE CHART

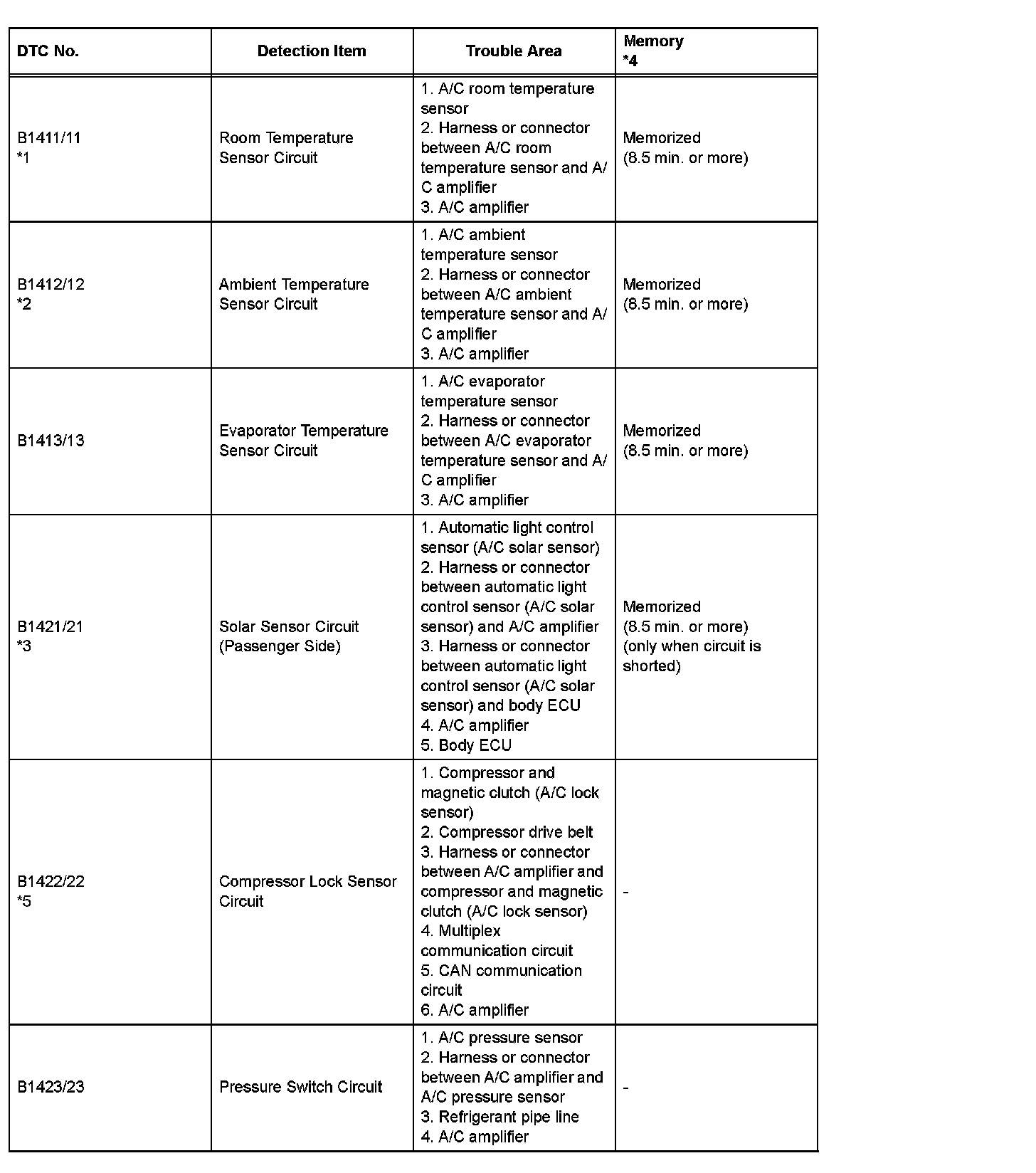

B1411/11 - B1423/23:

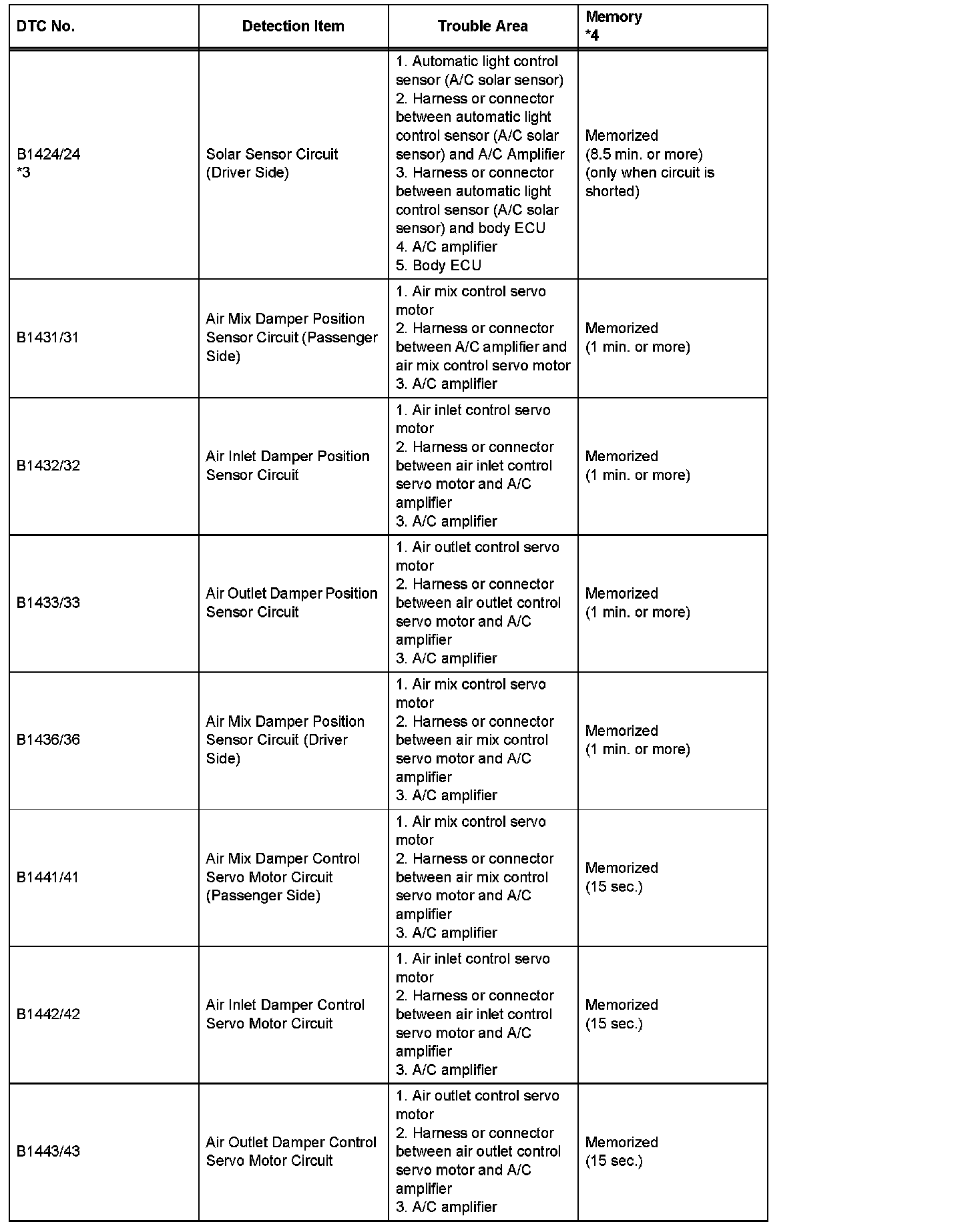

B1424/24 - B1443/43:

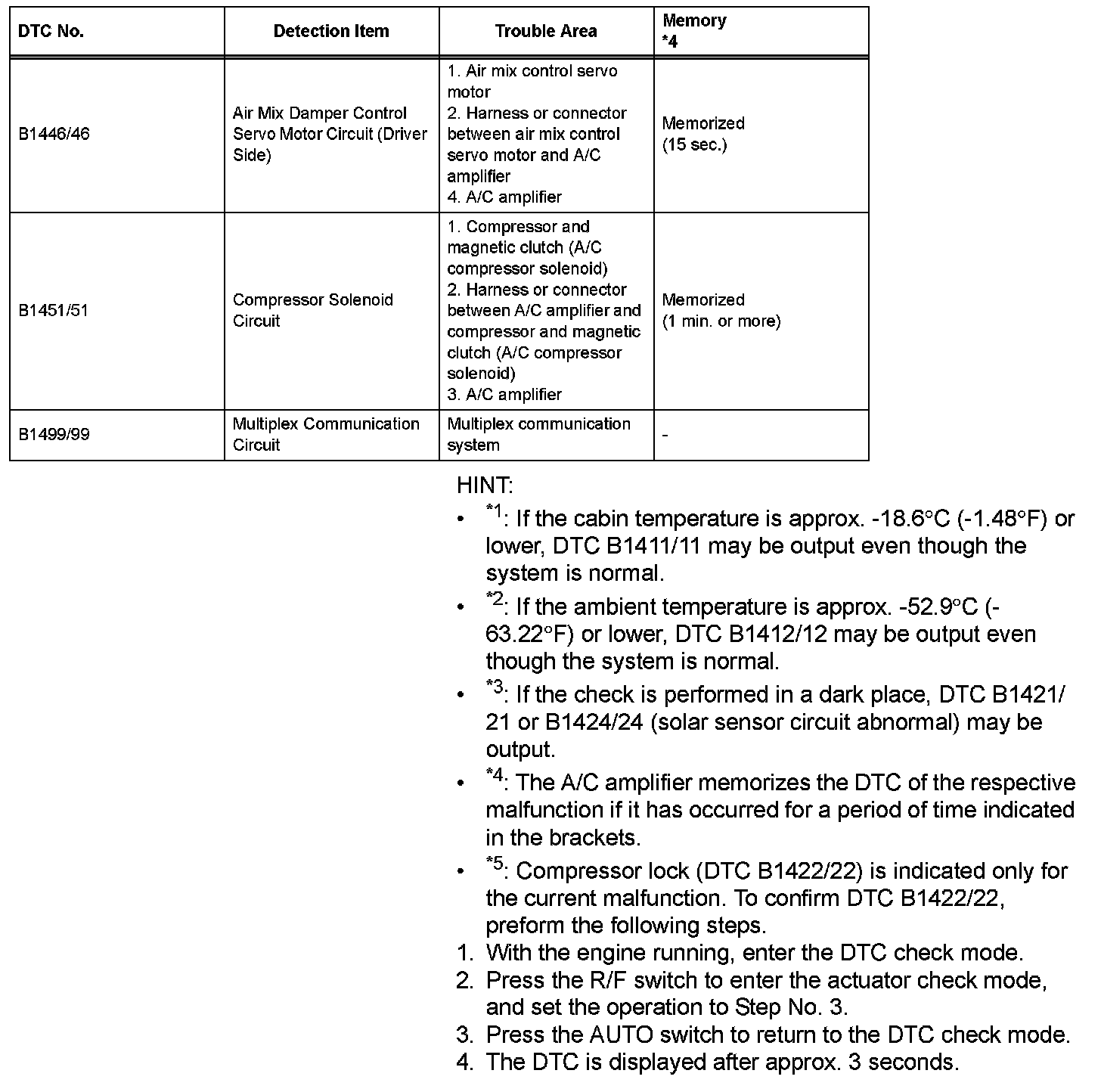

B1446/46 - B1499/99:

If a trouble code is displayed during the DTC check (sensor check), check the circuit listed for the code in the table.
