Tire Pressure Warning System
DIAGNOSTIC TROUBLE CODE CHARTHINT:
^ If no abnormality is found when the parts are inspected, inspect the tire pressure warning ECU.
^ If a trouble code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the relevant page listed under the respective "DTC No." in the DTC chart.

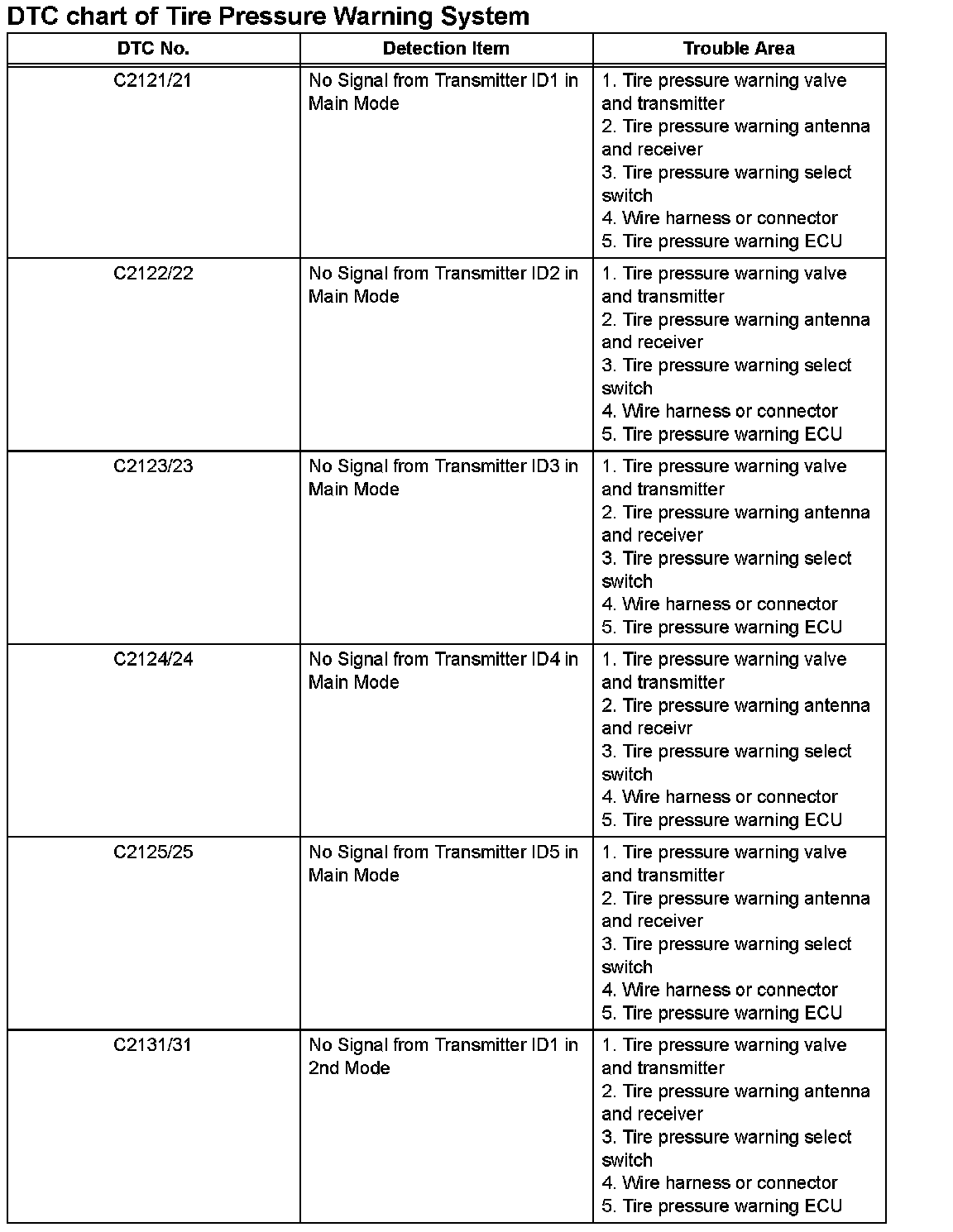

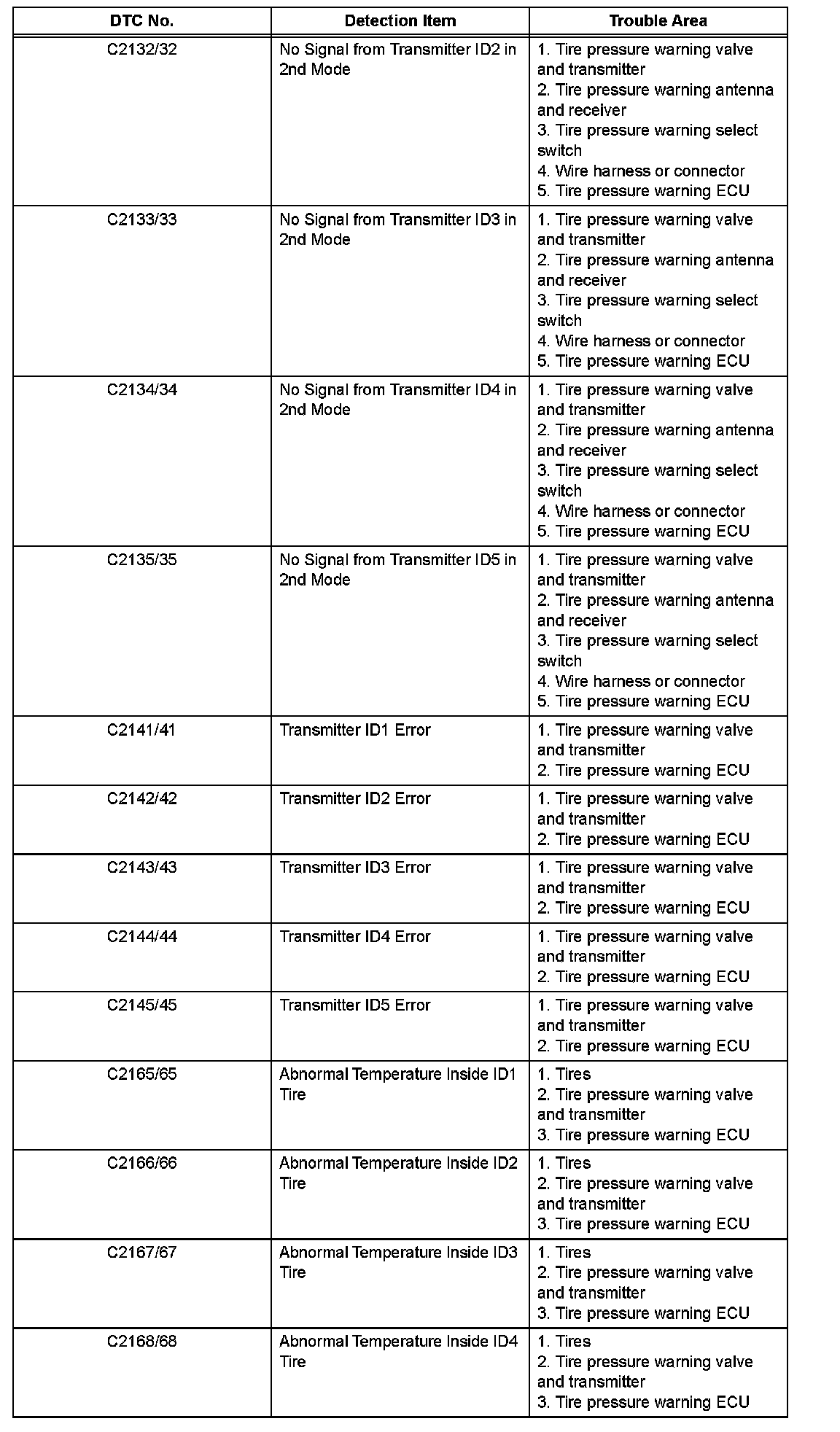

DTC chart of Tire Pressure Warning System
