Accessory Control Display: Service and Repair

Multi-Display:

Multi-Display

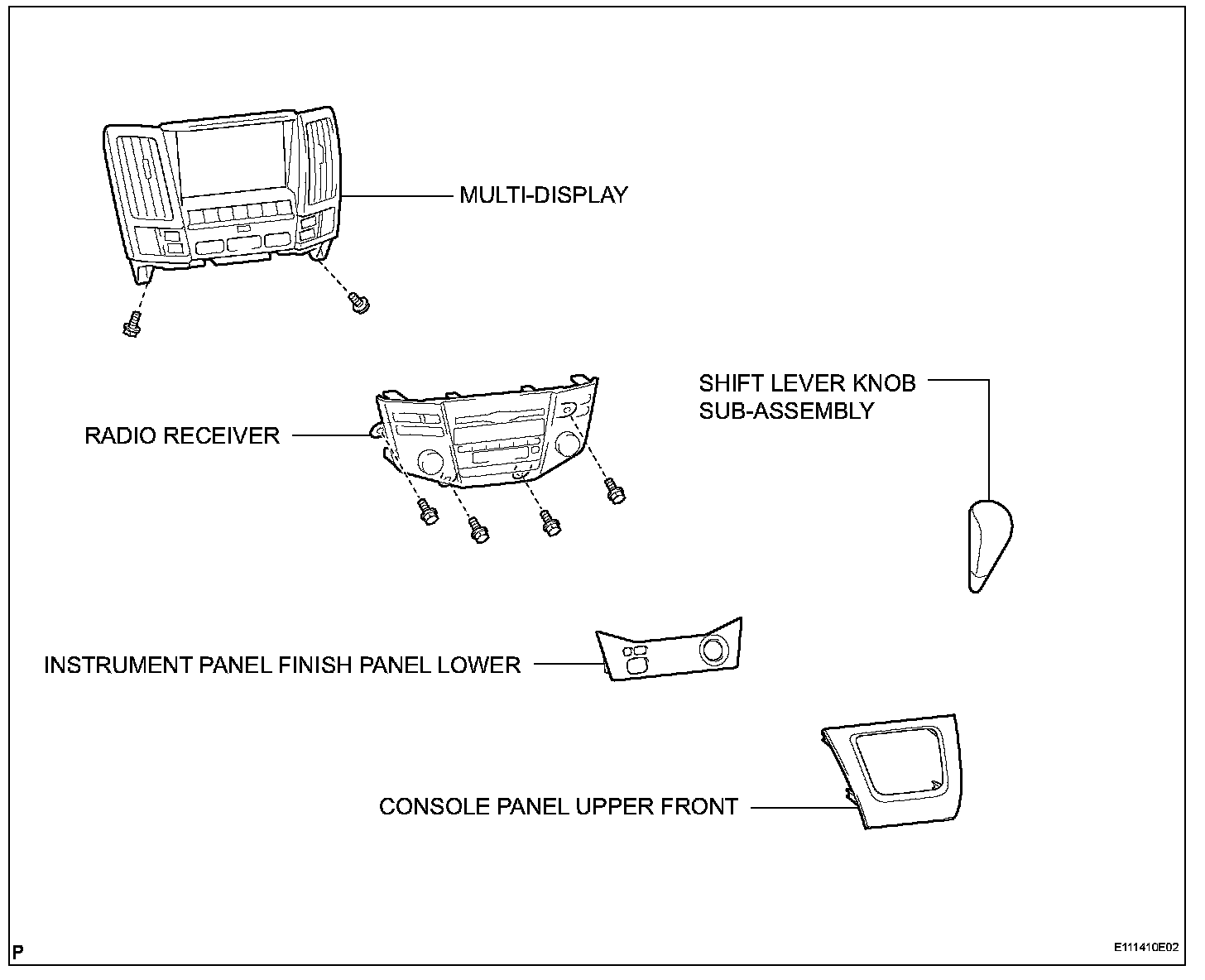

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
3. REMOVE CONSOLE PANEL UPPER FRONT
4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
5. REMOVE RADIO RECEIVER

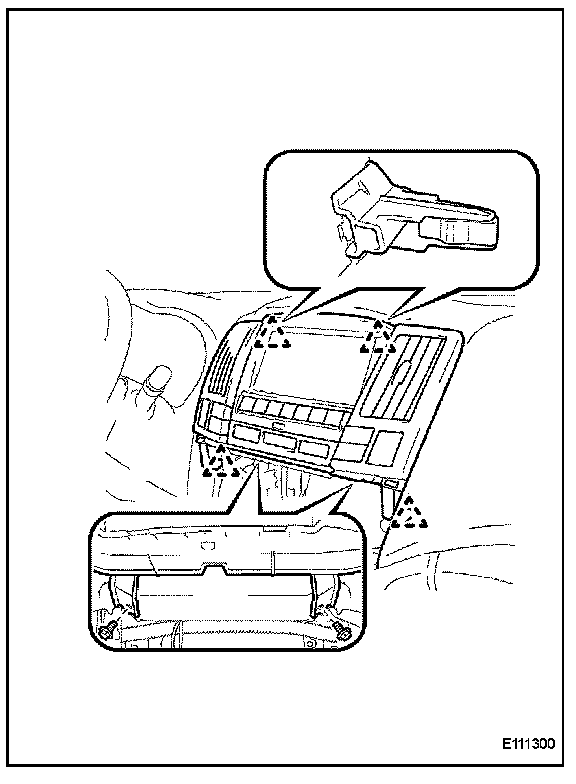

6. REMOVE MULTI-DISPLAY




a. Remove the 2 bolts and disengage the 4 clips.
b. Disconnect the connectors.
c. Remove the multi-display.

INSTALLATION

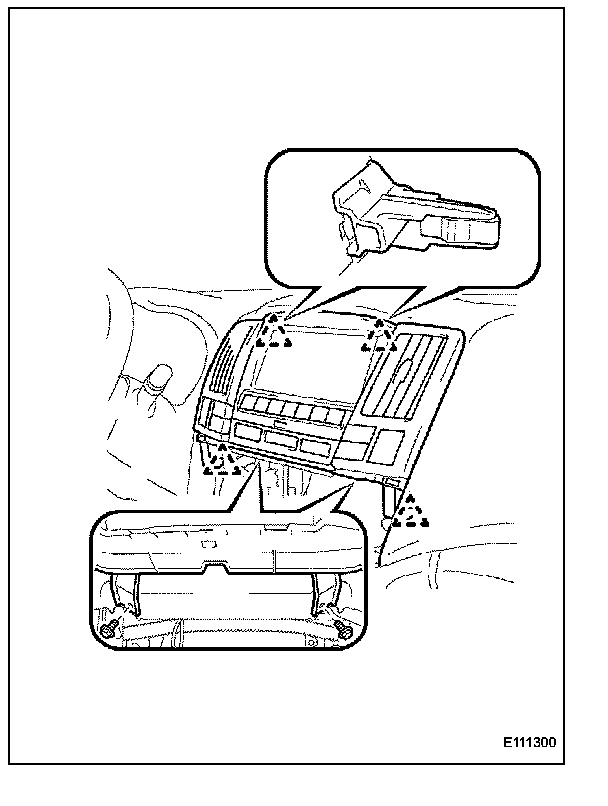

1. INSTALL MULTI-DISPLAY




a. Connect the connectors.
b. Engage the 4 clips and install the multi-display with the 2 bolts.

2. INSTALL RADIO RECEIVER
3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER
4. INSTALL CONSOLE PANEL UPPER FRONT
5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION Testing and Inspection

NOTE: Some systems need initialization when disconnecting the cable from negative battery terminal.
