Distance Sensor: Service and Repair

Laser Sensor:

Laser Sensor

REMOVAL

1. REMOVE ENGINE UNDER COVER NO.1
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH
3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
4. REMOVE FRONT BUMPER COVER
5. REMOVE FRONT BUMPER ENERGY ABSORBER
6. REMOVE FRONT BUMPER REINFORCEMENT

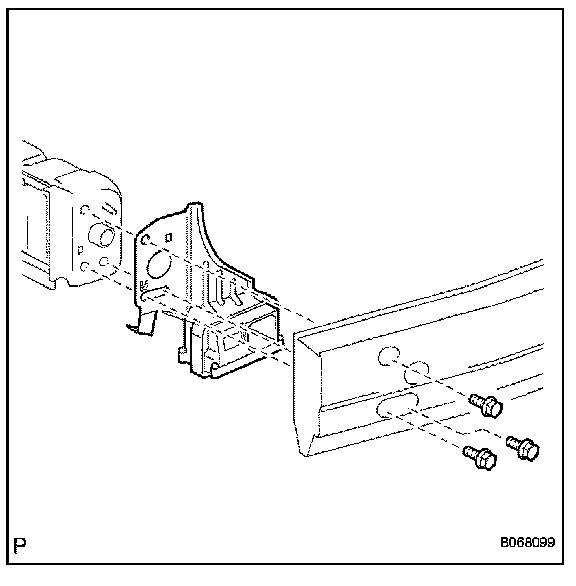

7. REMOVE LASER SENSOR




a. Disconnect the connector and remove the laser sensor.

INSTALLATION

1. INSTALL LASER SENSOR

NOTE: Do not install the laser sensor if it has been damaged or received some sort of shock.

2. INSTALL FRONT BUMPER REINFORCEMENT
3. ADJUST FOG LIGHT AIM
4. ADJUST LASER SENSOR
