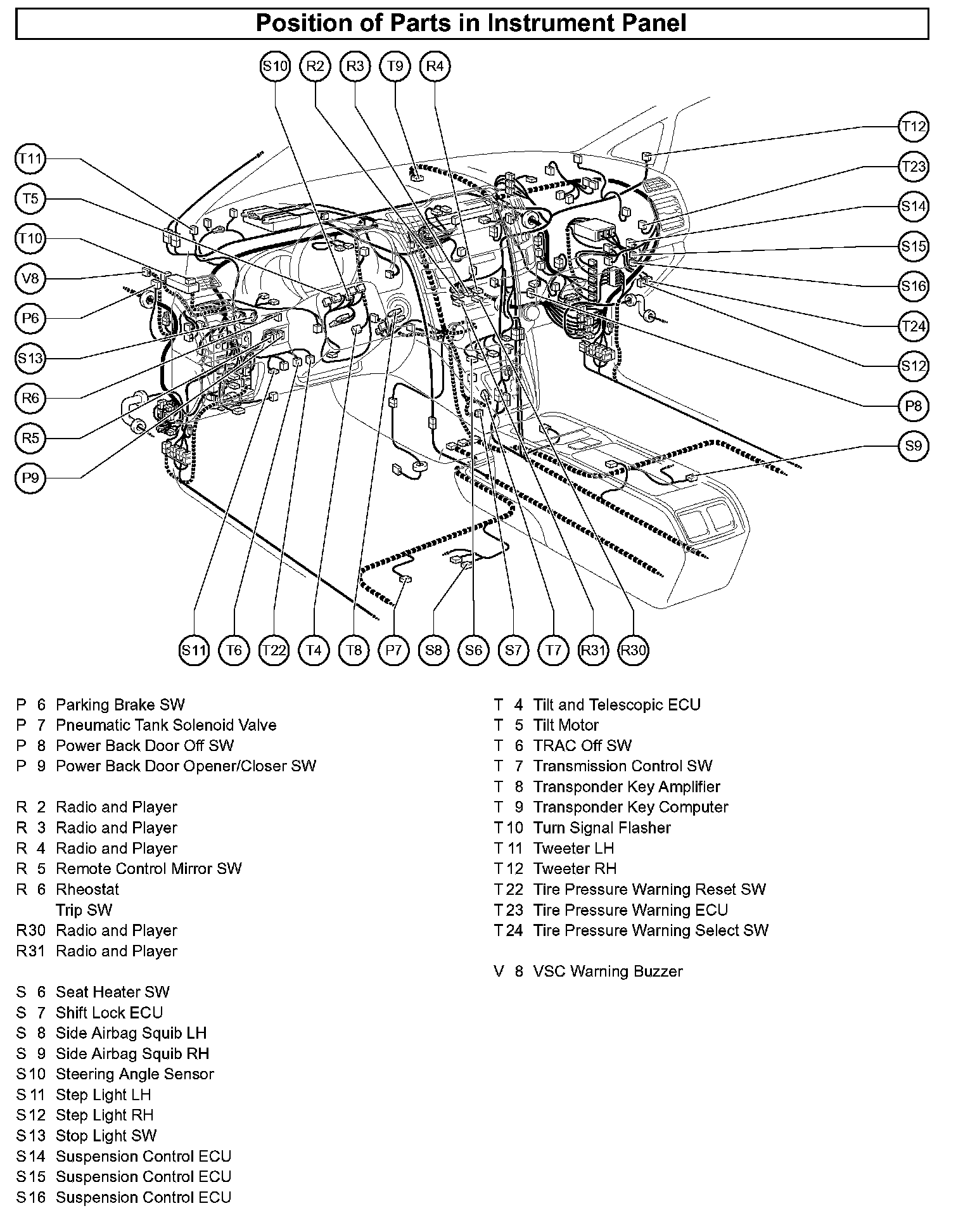

Position of Parts In Instrument Panel

A/C - Bu:



Ce - He:



Pa - VSC:





Dynamic Laser Cruise Control System:
