Home >> Lexus Truck >> 2007 >> RX 350 AWD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Diagrams >> Components >> Position of Parts In Seat

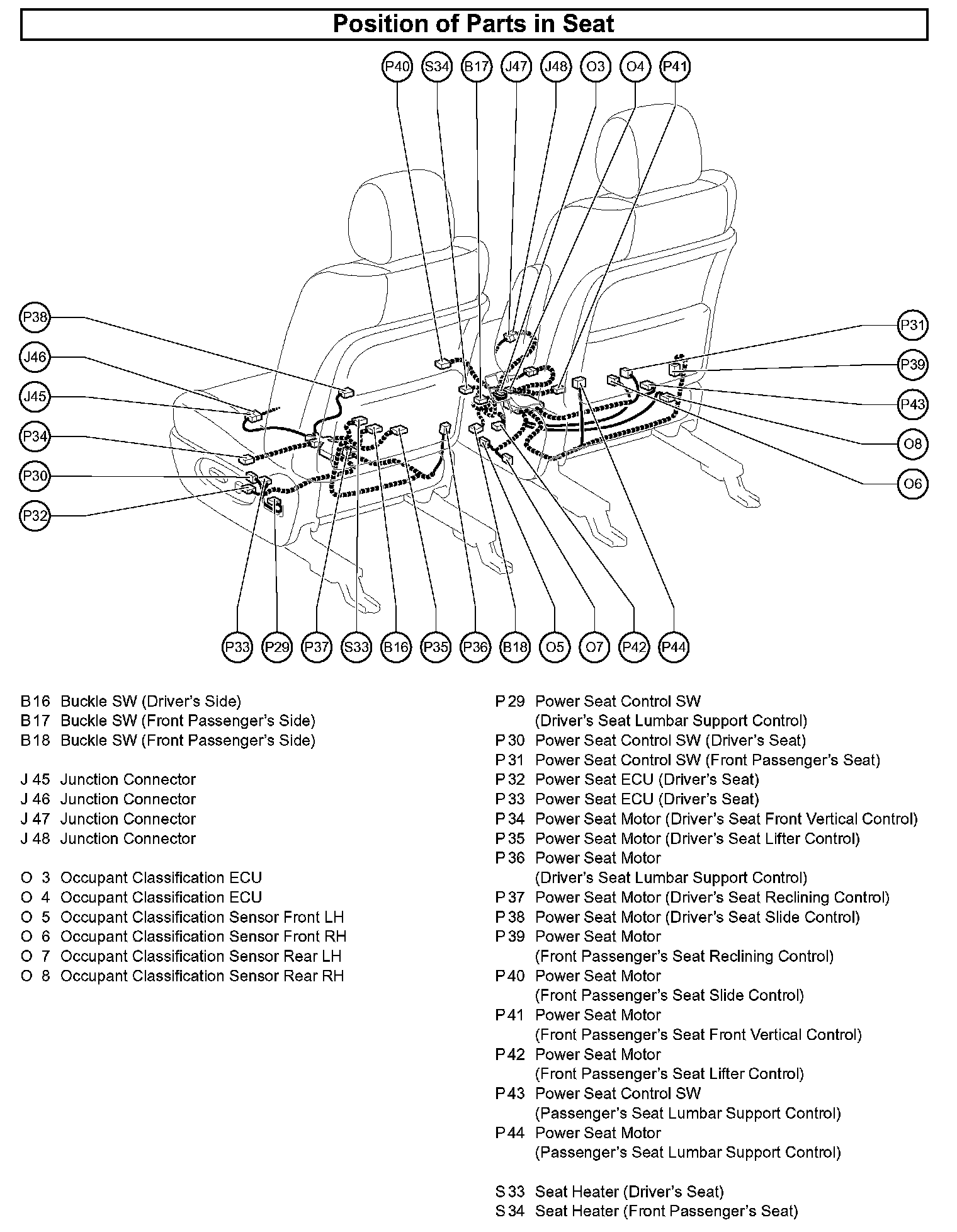

Position of Parts In Seat

Bu - Se:



Front Power Seat Control Systems (w/ Memory):
