Engine Control Module

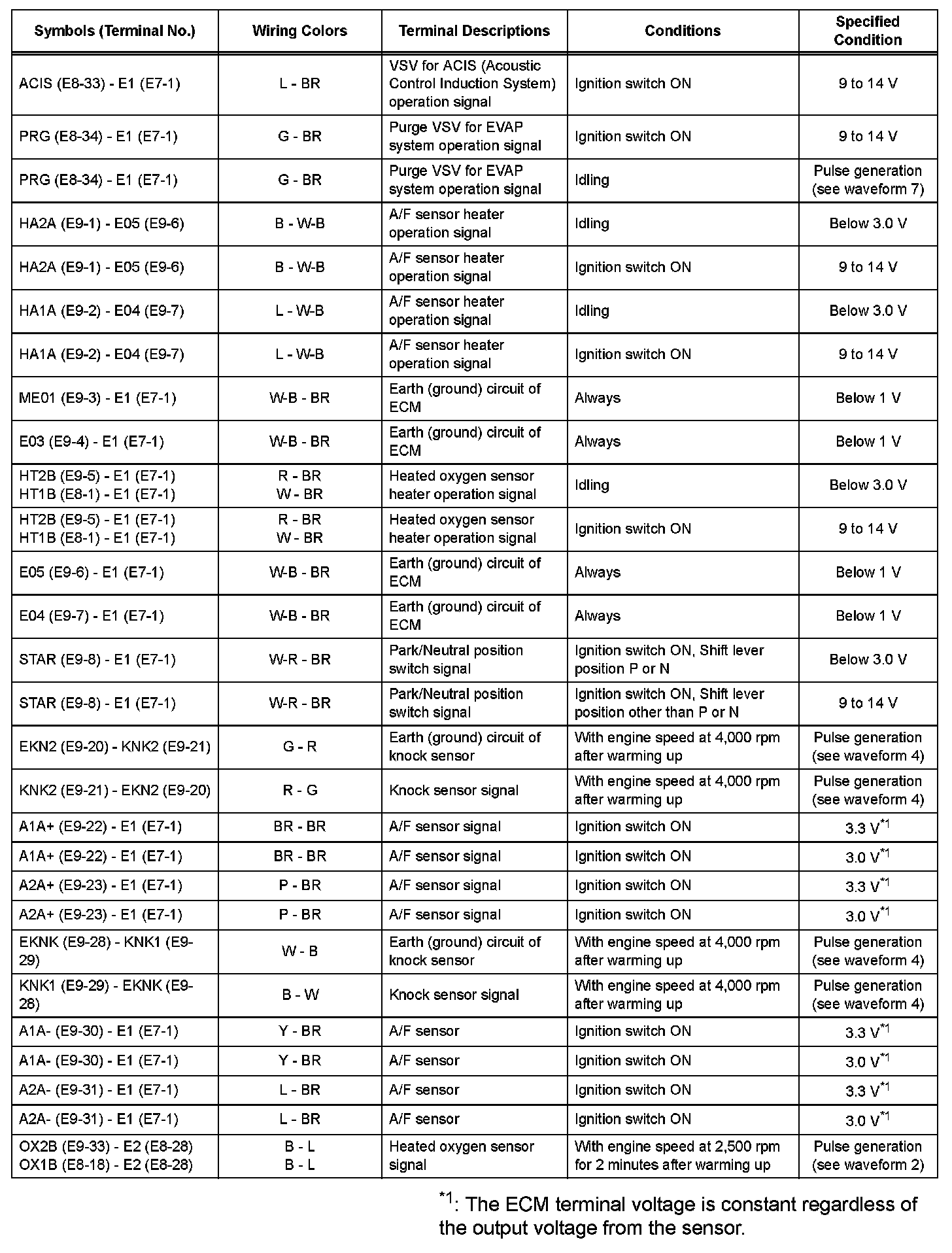

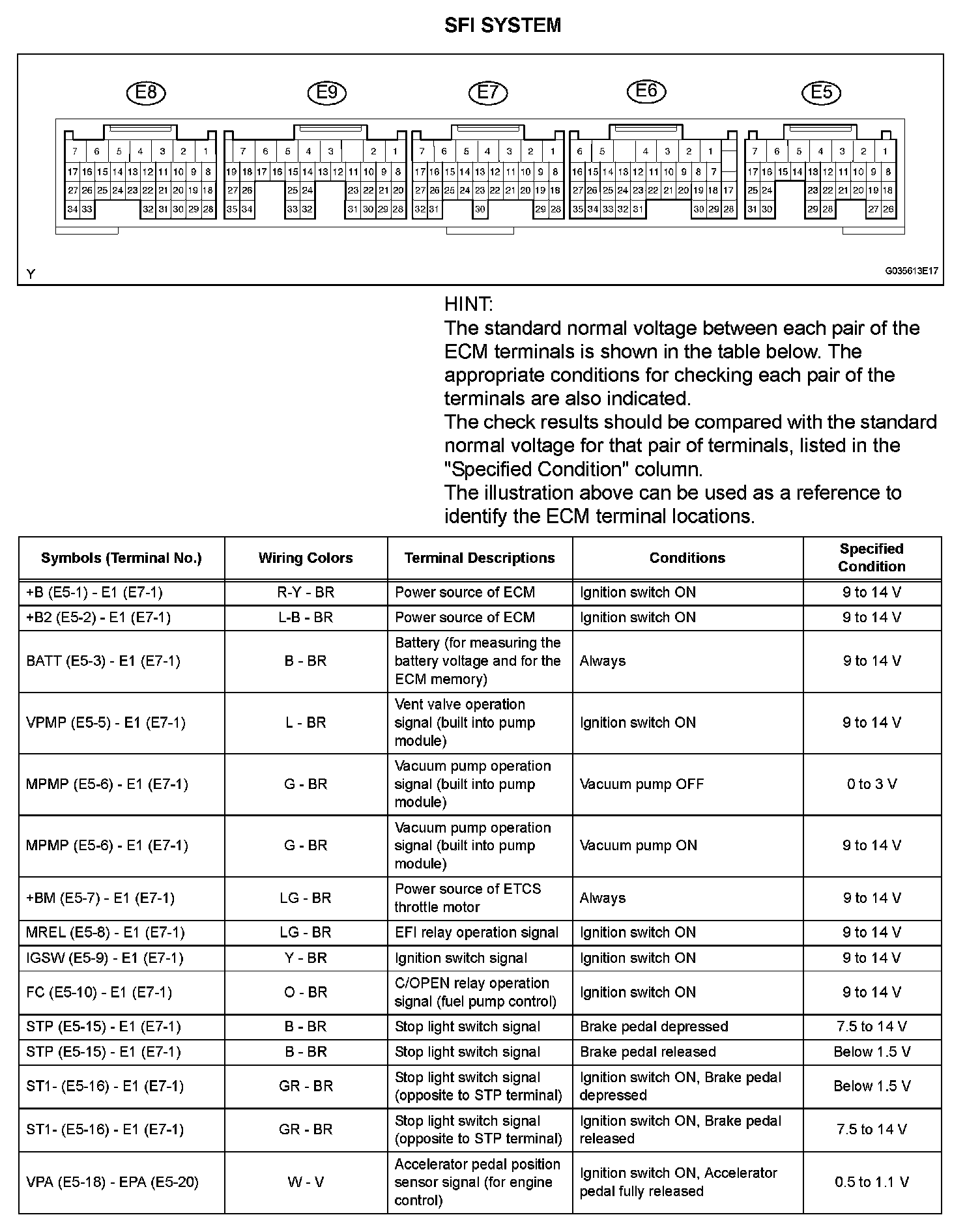

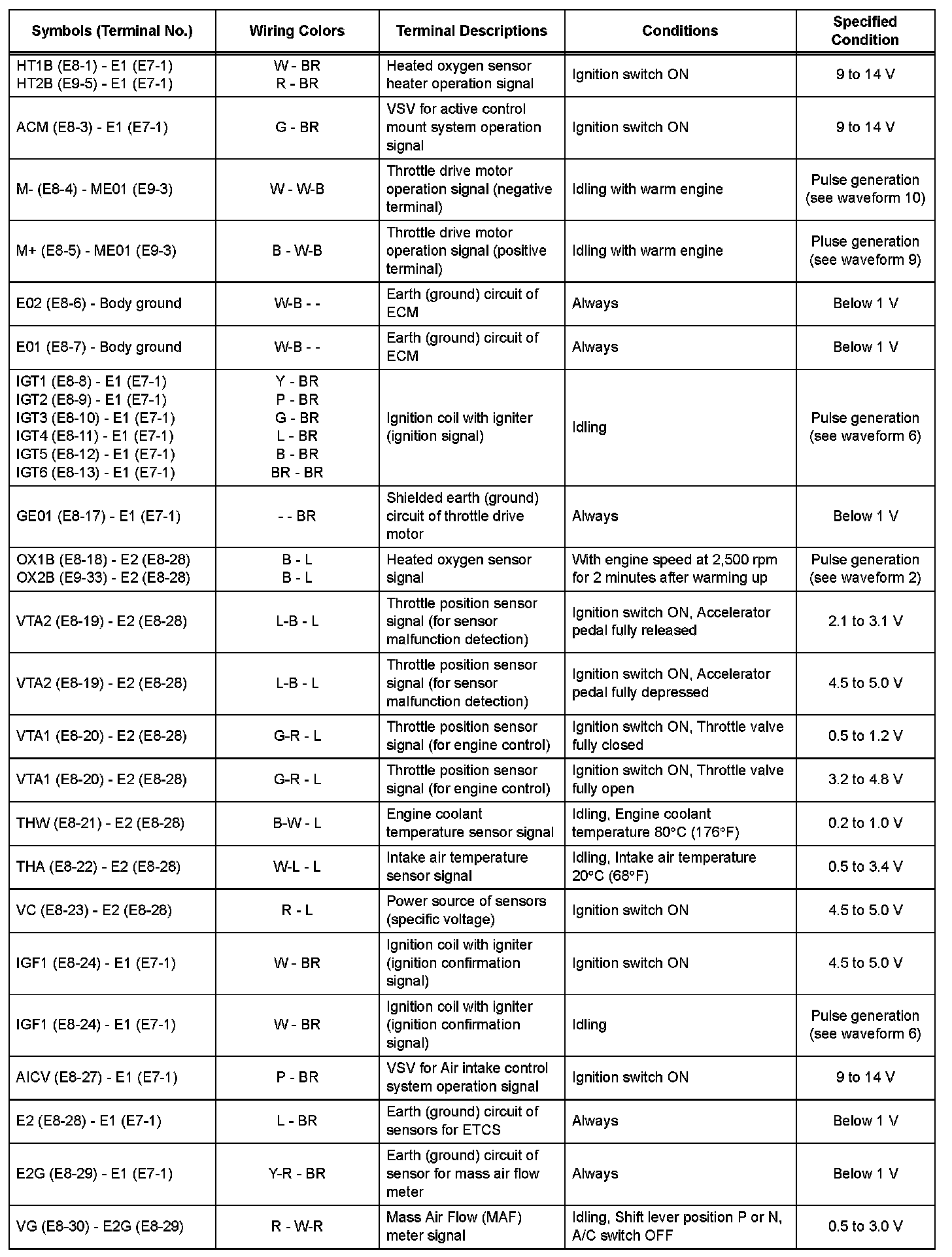

Terminals Of Control Module/pinouts (Part 1):

Terminals Of Control Module/pinouts (Part 2):

Terminals Of Control Module/pinouts (Part 3):

Terminals Of Control Module/pinouts (Part 4):

Terminals Of Control Module/pinouts (Part 5):

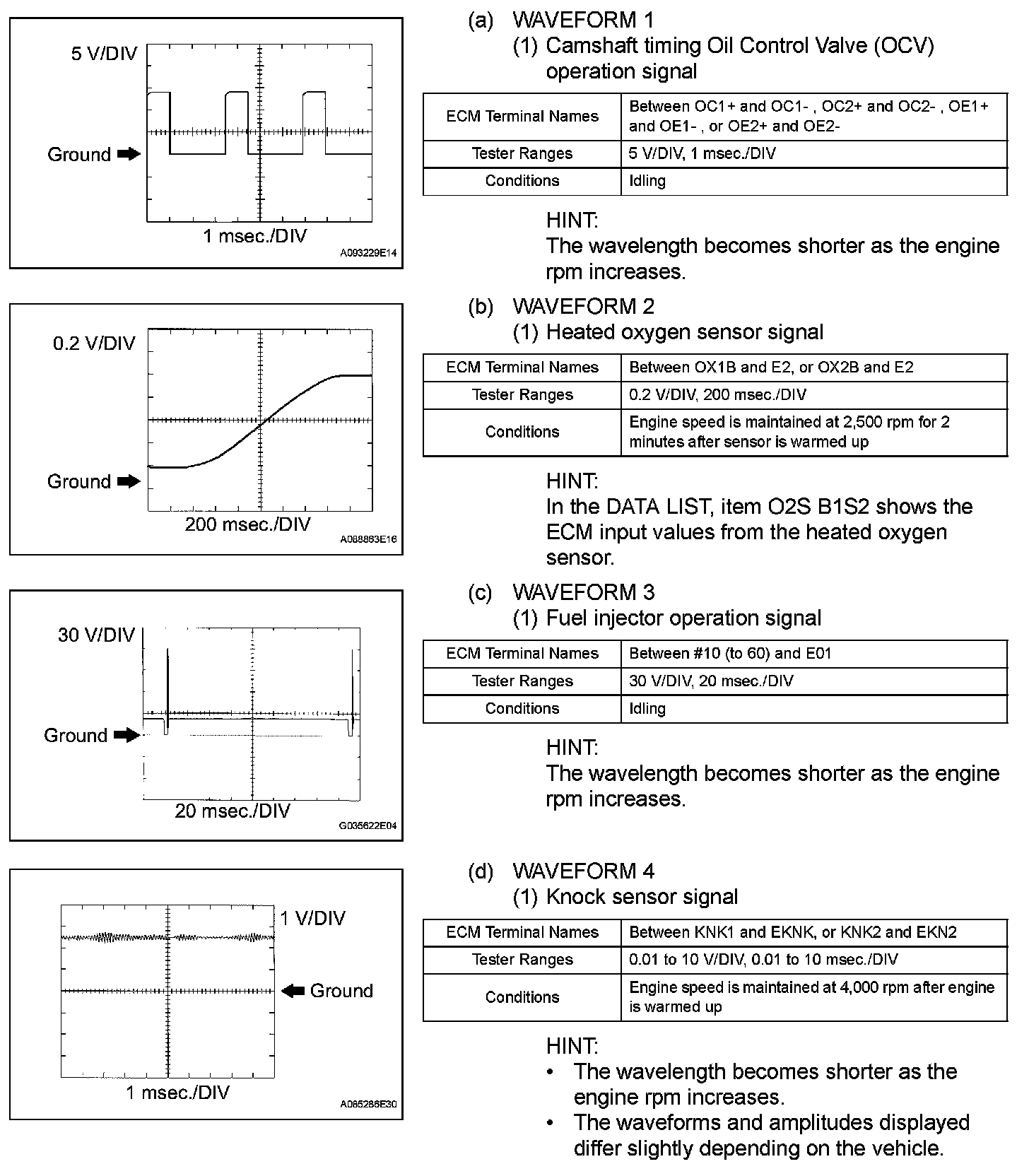

Oscilloscope Waveforms (Part 1):

Oscilloscope Waveforms (Part 2):

Oscilloscope Waveforms (Part 3):
