Automatic Transmission/Transaxle

AUTOMATIC TRANSAXLE ASSEMBLY

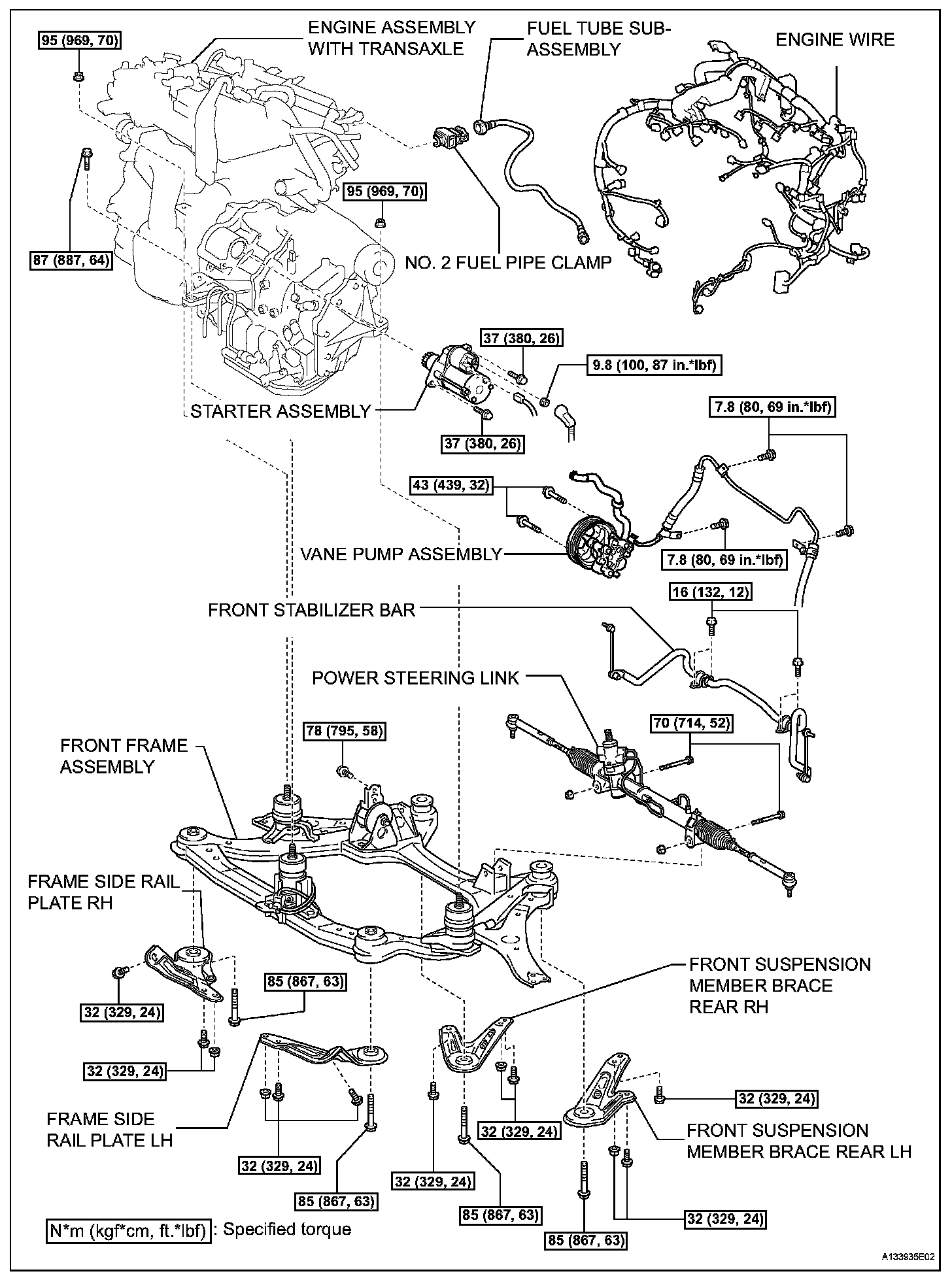

COMPONENTS (Part 1):

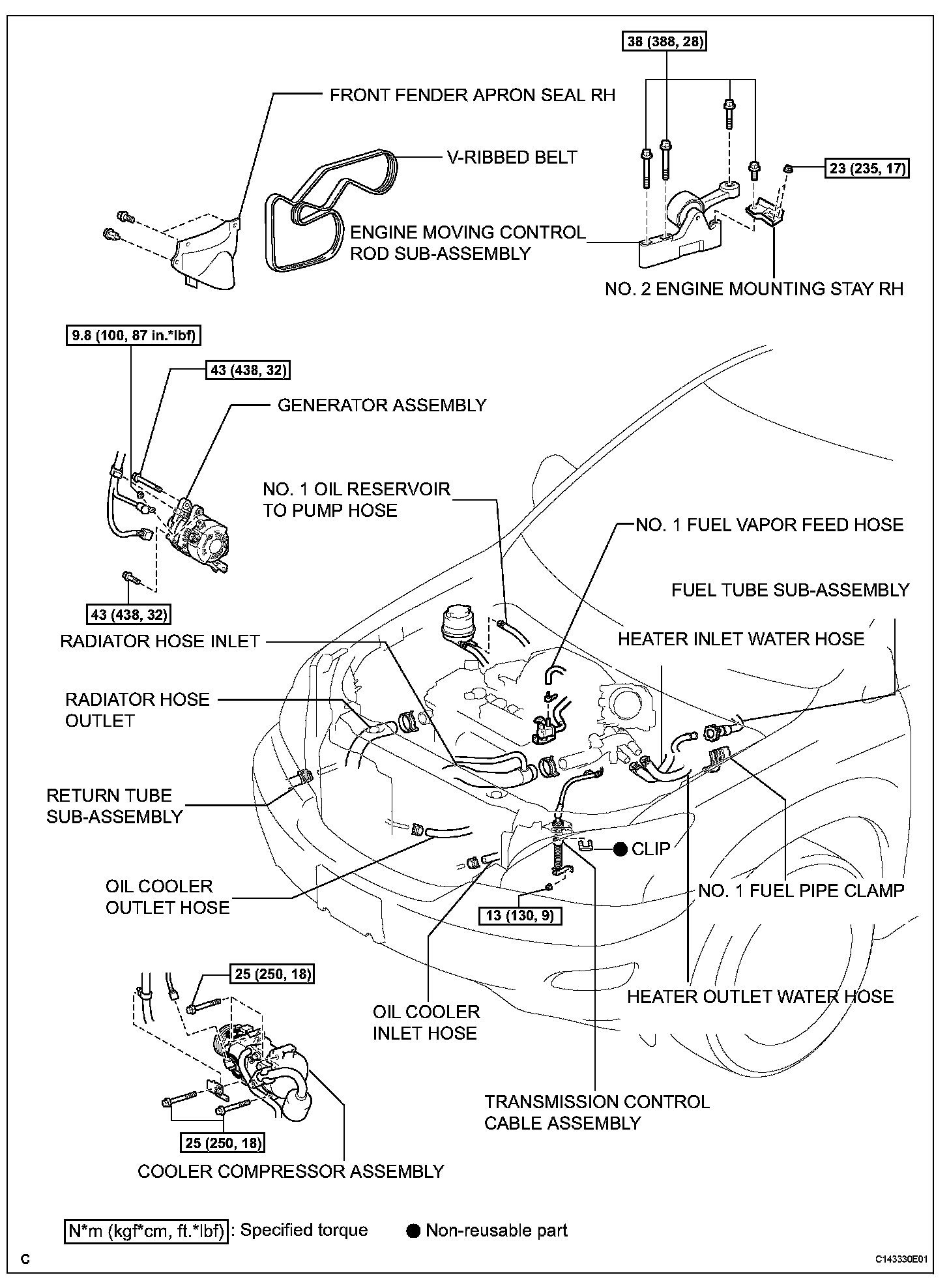

COMPONENTS (Part 2):

COMPONENTS (Part 3):

COMPONENTS (Part 4):

COMPONENTS (Part 5):

COMPONENTS (Part 6):

COMPONENTS (Part 7):

COMPONENTS (Part 8):
