Blower Motor: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT COOLING UNIT MOTOR SUB-ASSEMBLY W/FAN
a. Remove the cooling unit motor sub-assembly w/fan.

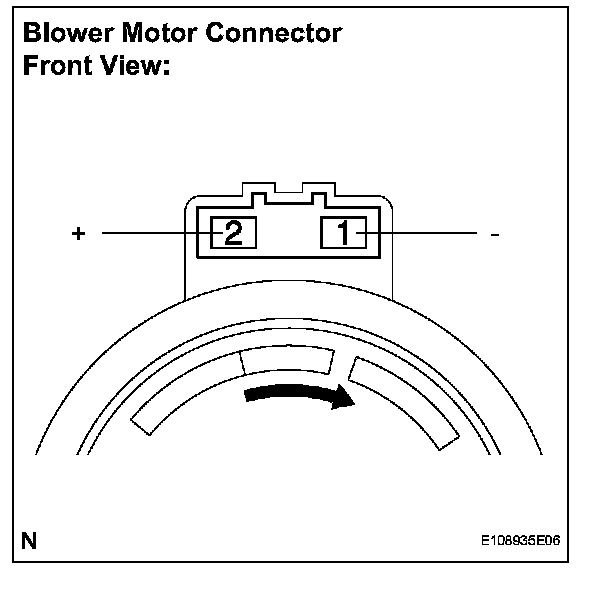

b. Connect the negative (-) lead connected to terminal 1 of the blower motor connector, the positive (+) lead to terminal 2.

OK: Blower motor operates smoothly.
