Cabin Air Filter / Purifier: Service and Repair

Cabin Air Filter

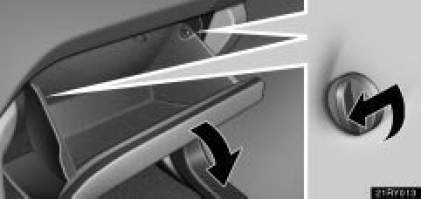

1. Open the glove box and remove the 2 pins installed on the upper part of the glove box and lower the glove box.

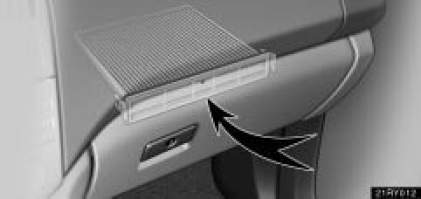

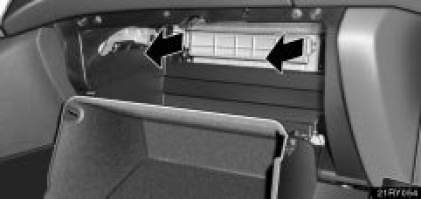

2. Remove the filter case from the filter outleat as shown.
3. Remove the filter from the filter case.

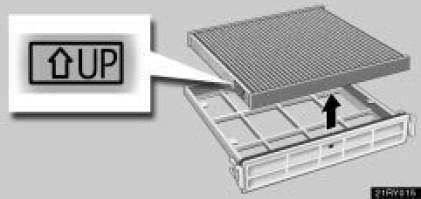

4. Install new filter, be sure to keep the arrow up.


NOTICE: The filter should be installed properly in position. The use of the air conditioning with the filter removed may cause the malfunction of the air conditioning system.
