Electrical Diagrams

NOTE: Lexus uses a magnetic clutch type compressor as well as a flow control valve type. Both are contained within the diagram. Follow the portion of the digram applicable to the vehicle.

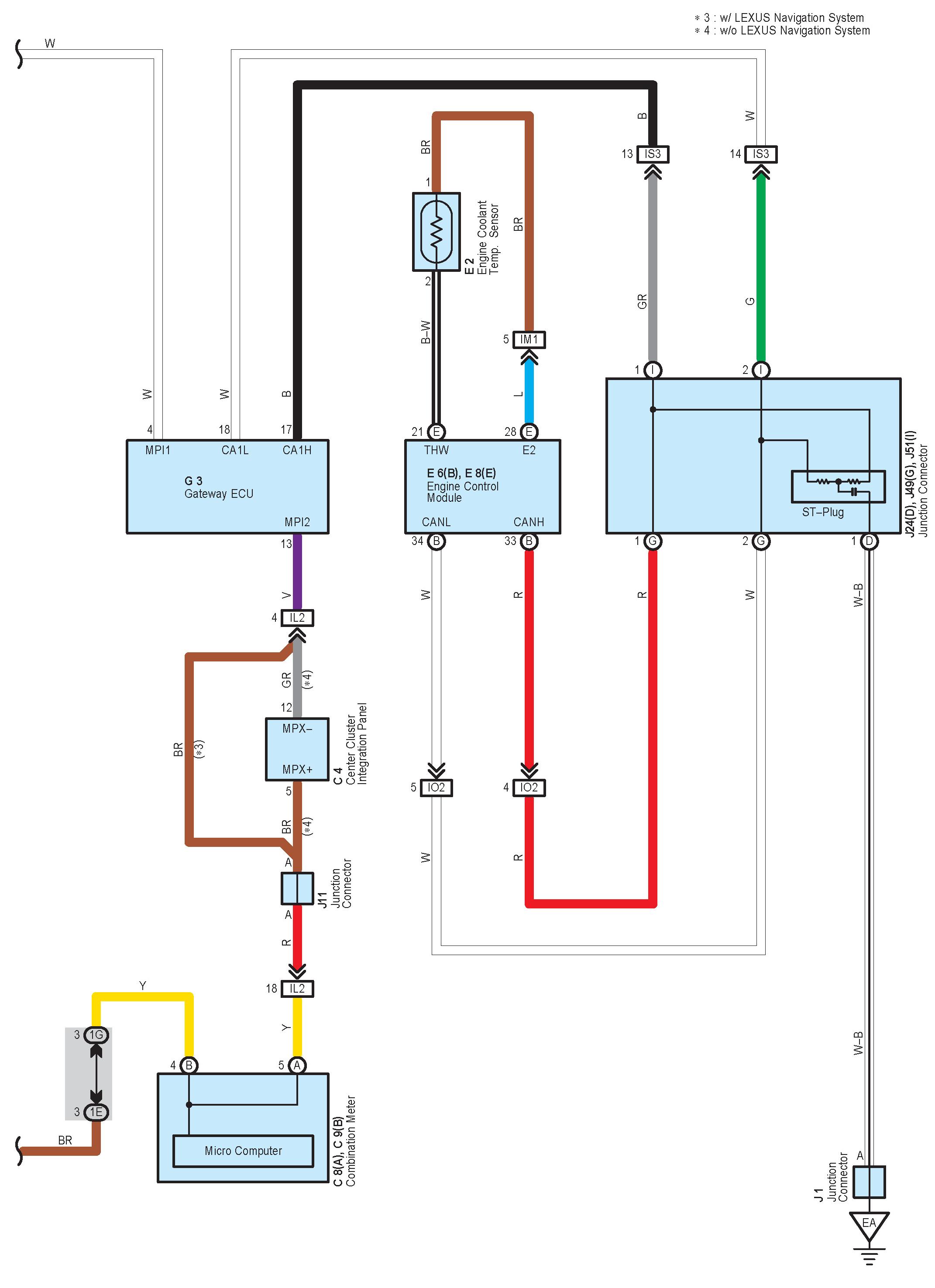

Automatic Air Conditioning Part 1:

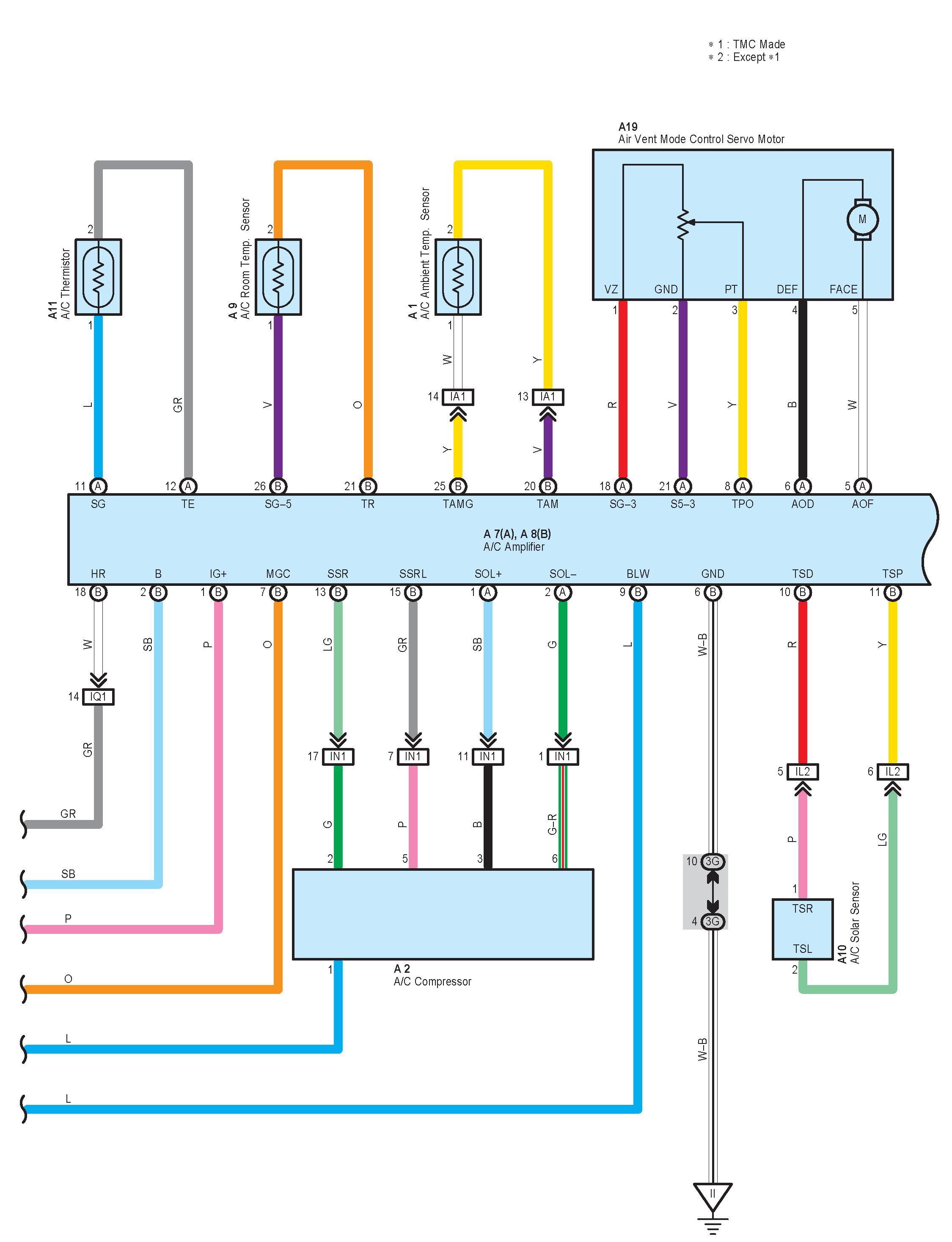

Automatic Air Conditioning Part 2:

Automatic Air Conditioning Part 3:

Automatic Air Conditioning Part 4:

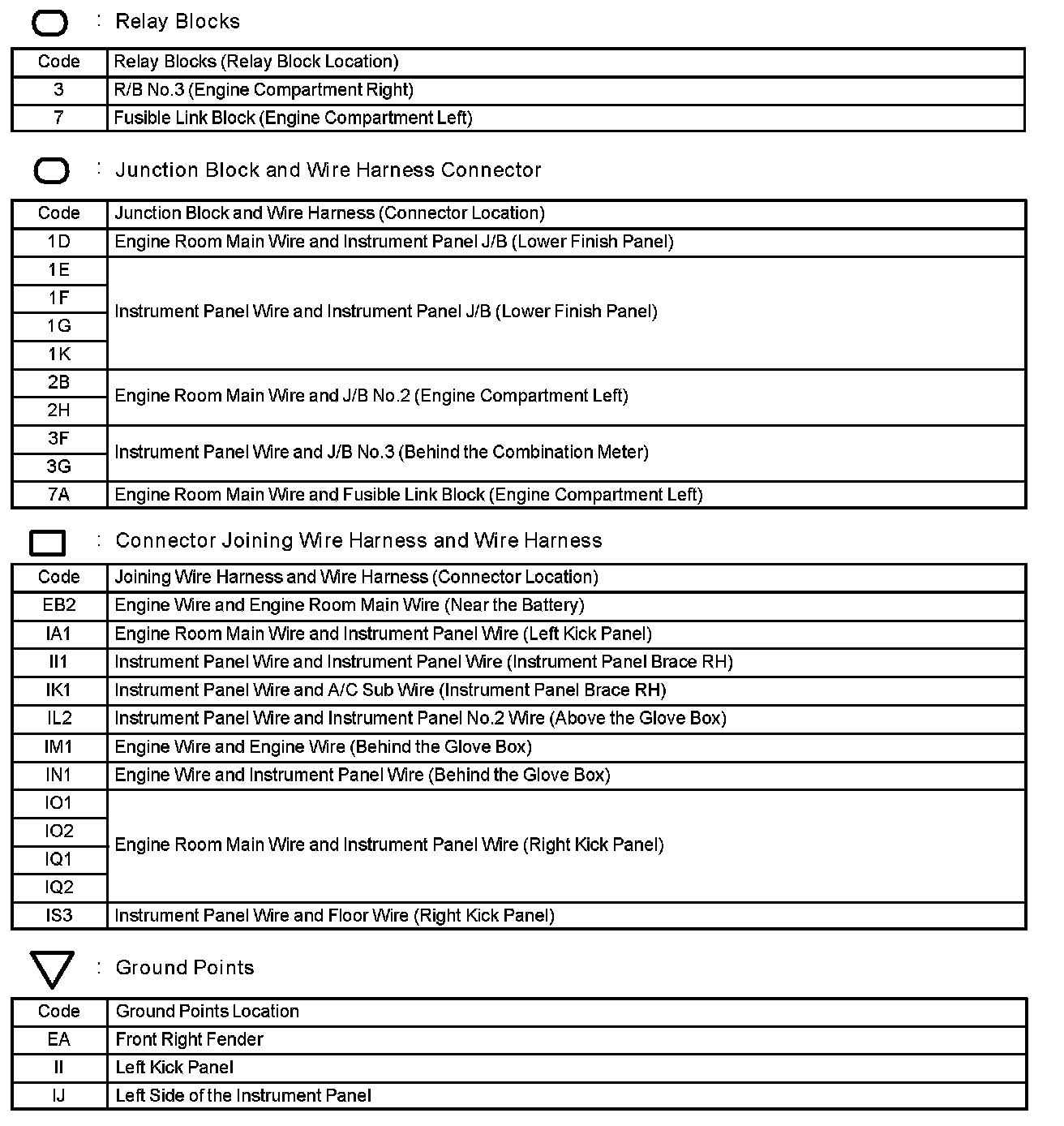

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
