Refrigerant: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT REFRIGERANT VOLUME

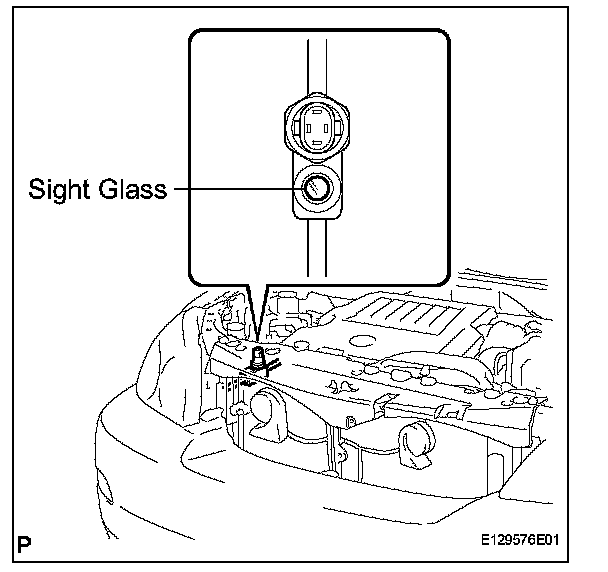

a. Check the sight glass on the air conditioning tube & accessory assembly.

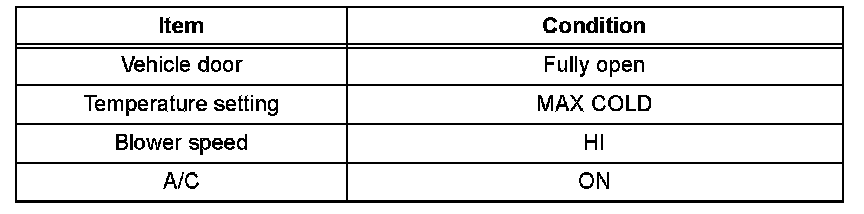

1. Prepare the vehicle according the chart.




2. Compare the sight glass to the following chart.

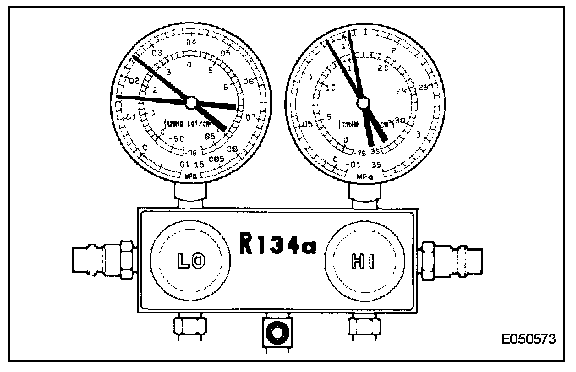

2. INSPECT REFRIGERANT PRESSURE WITH MANIFOLD GAUGE SET

HINT: This is a method where a manifold gauge set is used to help locate the problem.

a. Read the manifold gauge pressure when these conditions are established. Test conditions:
- Temperature at the air inlet with the switch set at RECIRC is 30 to 35 °C (86 to 95 °F)
- Engine is running at 1,500 rpm
- Blower speed control switch is at "HI"
- Temperature control dial is at "COOL"
- A/C switch is ON
- Doors are fully open
- Ignition switch in a position that enables the AC compressor to run.




1. Normally functioning refrigeration system
Gauge reading:
Low pressure side: 0.15 to 0.25 MPa (1.5 to 2.5 kgf/sq.cm, 21.3 to 35.5 psi)
High pressure side: 1.37 to 1.57 MPa (14 to 16 kgf/sq.cm, 199.1 to 227.5 psi)




2. Moisture is present in refrigeration system.

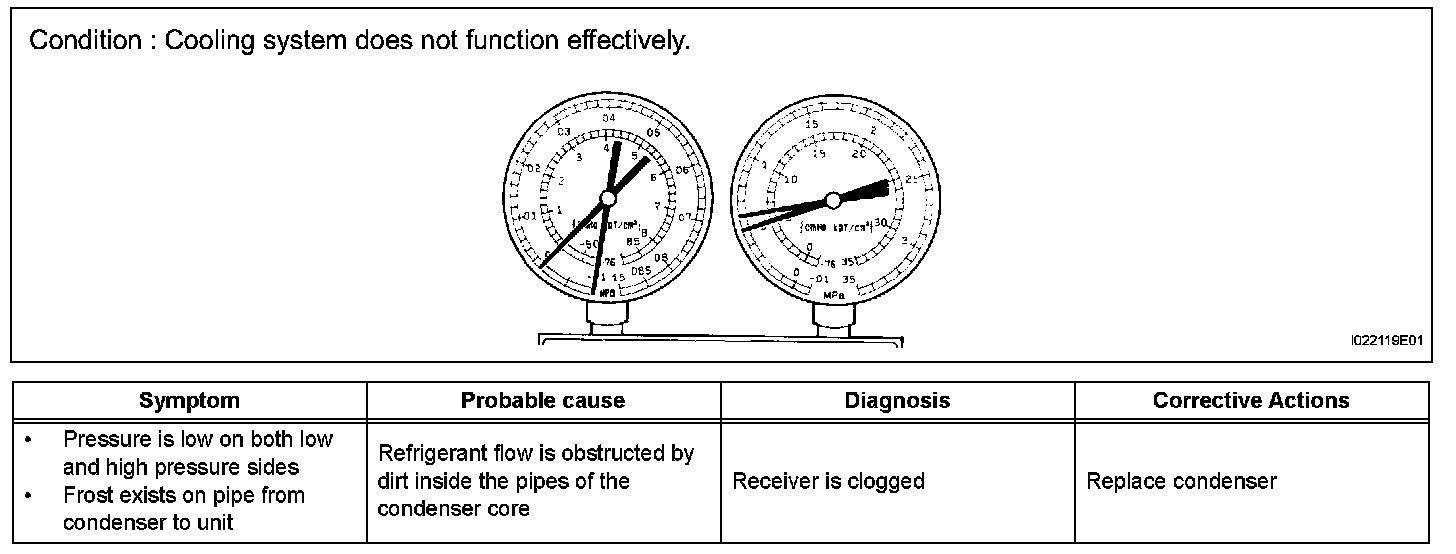

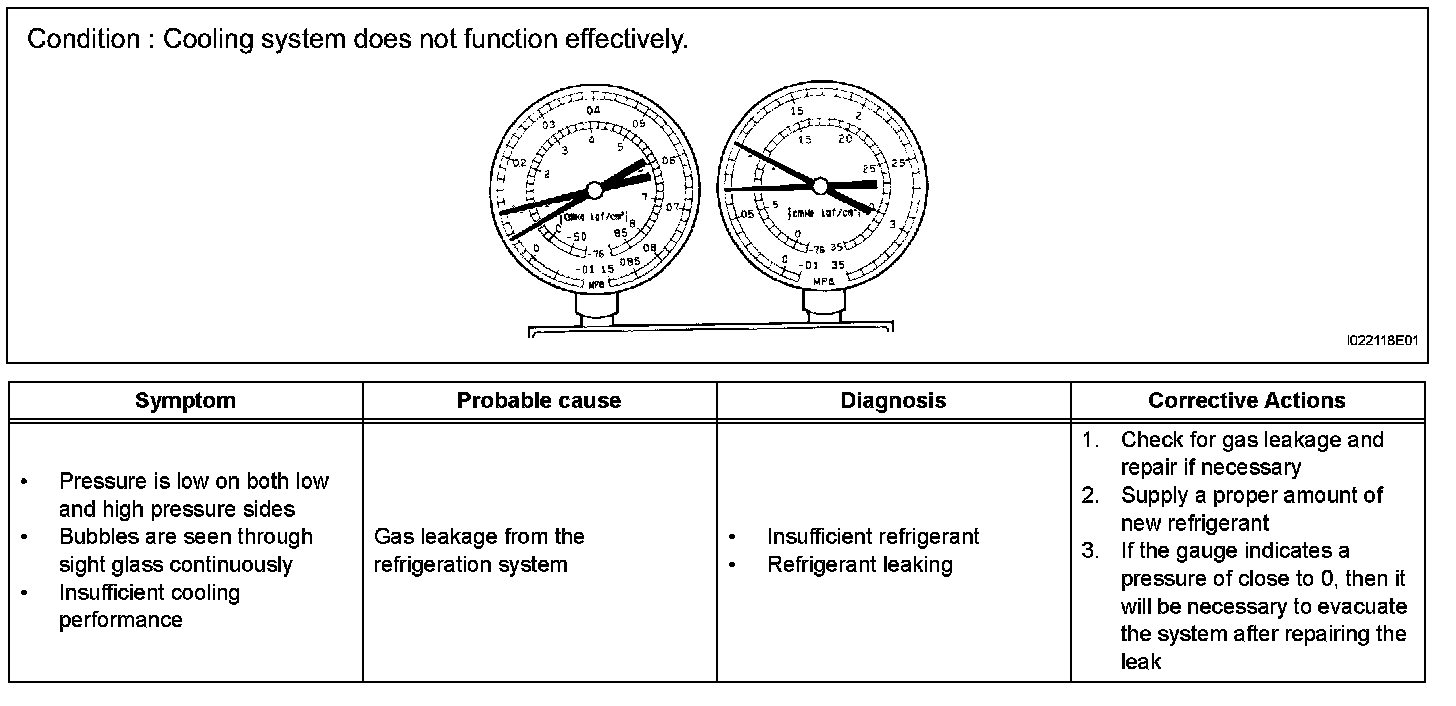

3. Insufficient cooling




4. Poor circulation of refrigerant

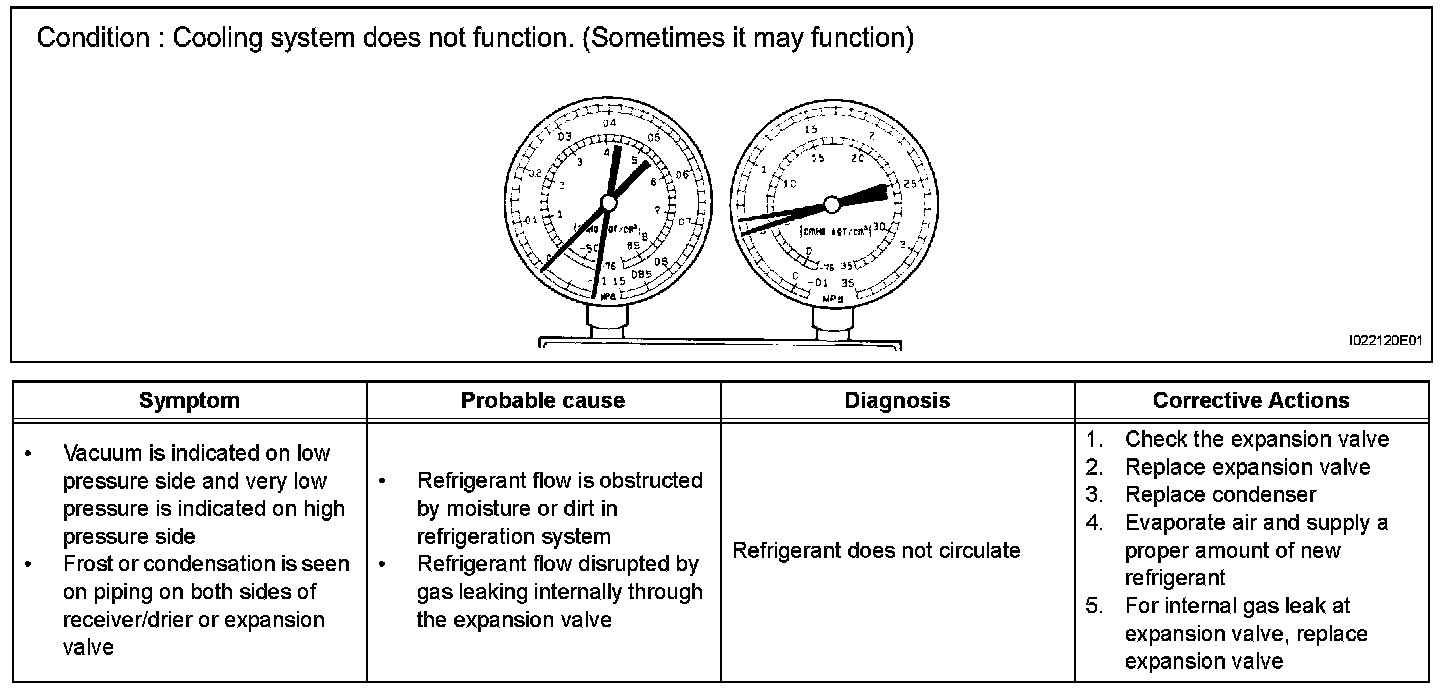

5. Refrigerant does not circulate.

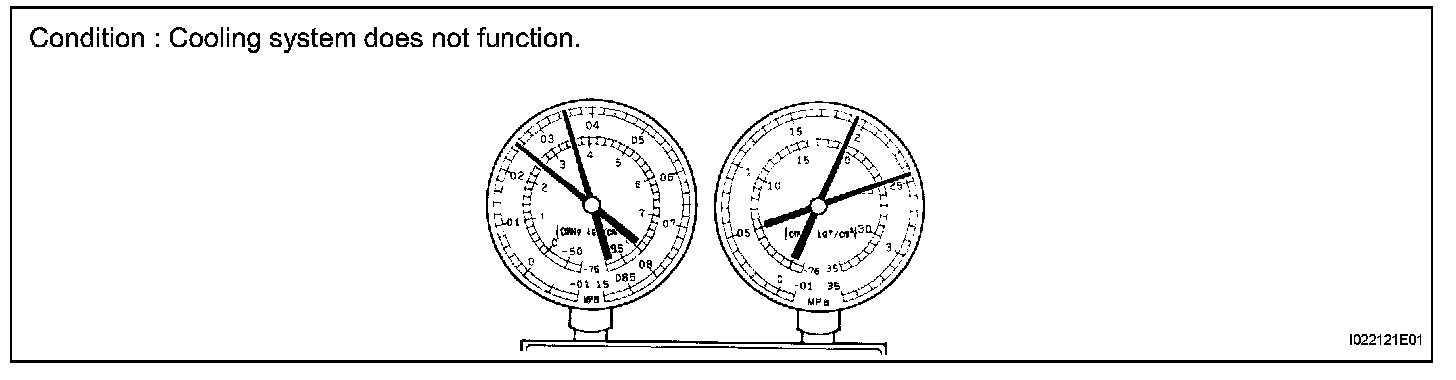

Part 1:




Part 2:

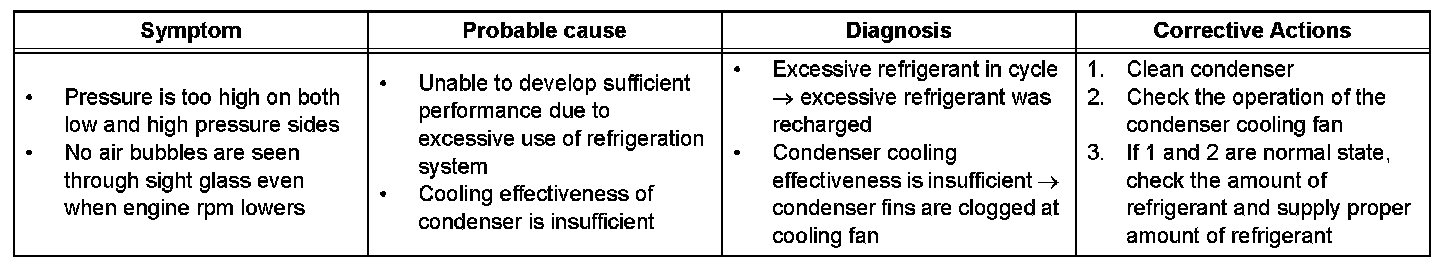

6. Refrigerant is overcharged or cooling effectiveness of condenser is insufficient.

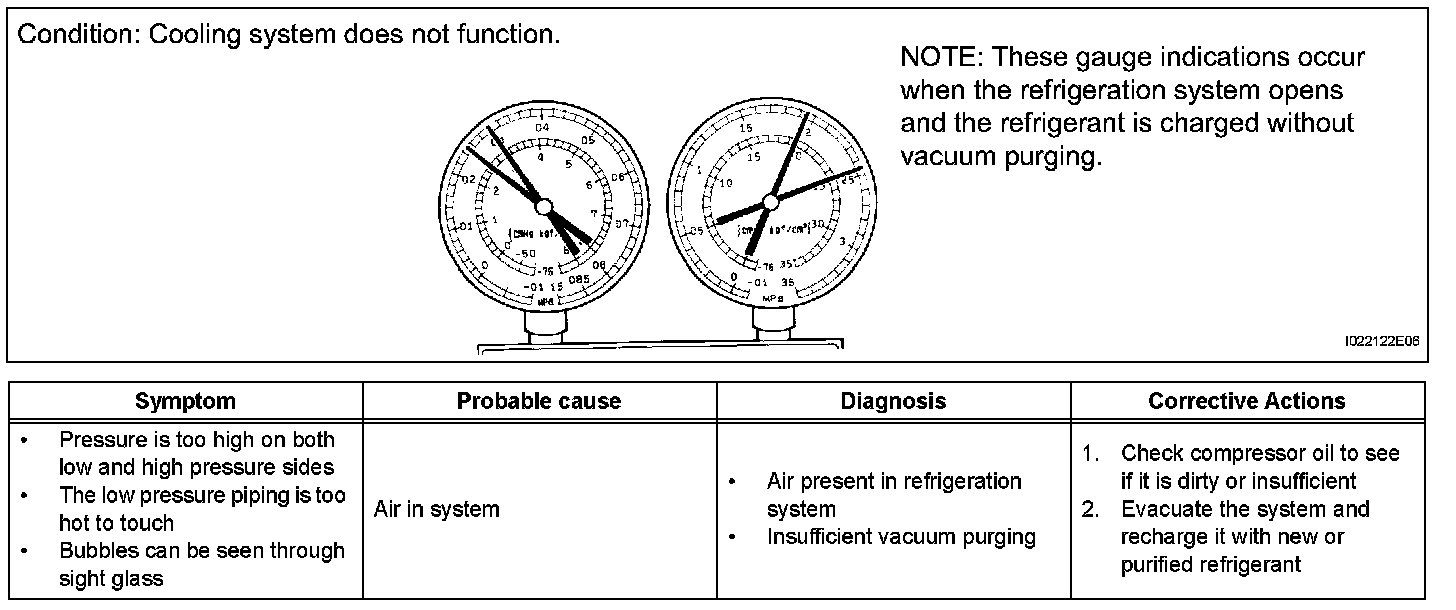

7. Air is present in refrigeration system.




8. Expansion valve malfunction




9. Insufficient compressor compression




Gauge readings (Reference)
