Clock: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT INTEGRATION CONTROL & PANEL ASSEMBLY

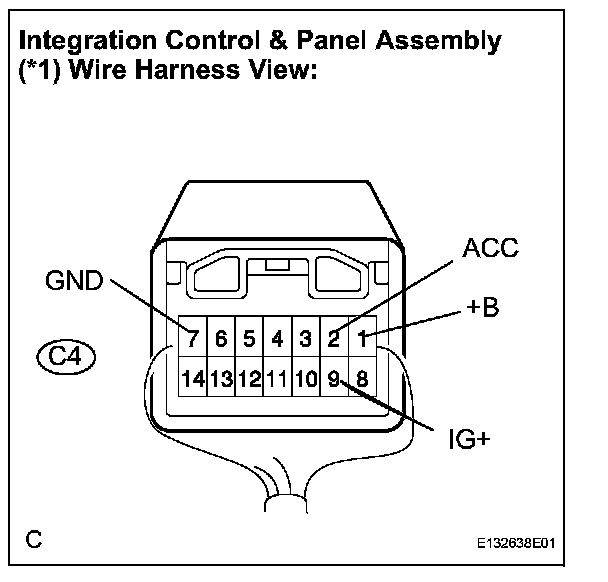

a. Disconnect the C4 connector.

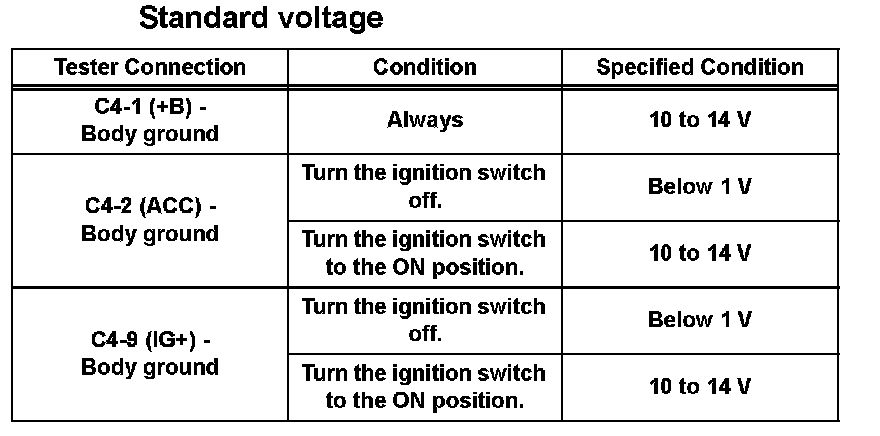

b. Measure the voltage according to the value(s) in the table.

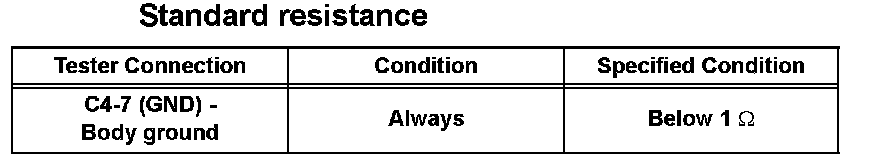

c. Measure the resistance according to the value(s) in the table.

HINT: If the value is not as specified, repair or replace the harness or connector.

2. INSPECT MULTI-DISPLAY

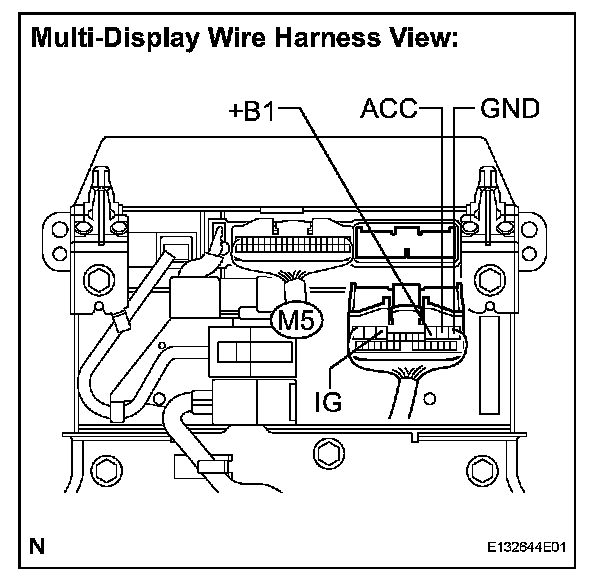

a. Disconnect the M5 connector.

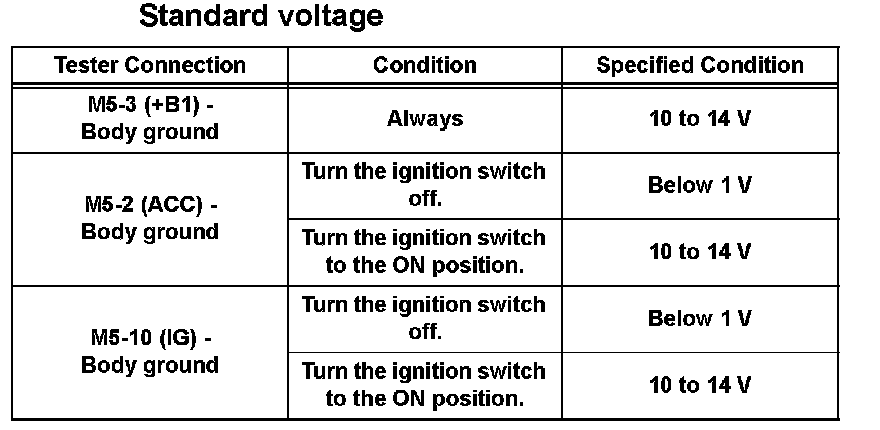

b. Measure the voltage according to the value(s) in the table.




c. Measure the resistance according to the value(s) in the table.

HINT: If the value is not as specified, repair or replace the harness or connector.
