Odometer: Testing and Inspection

ODO / Trip Switch Malfunction

DESCRIPTION

The meter CPU receives signals for changing the ODO/TRIP meter from this circuit.

HINT: The whole light control rheostat should be replaced if the ODO/TRIP switch has a malfunction because the ODO/TRIP switch is not available separately.

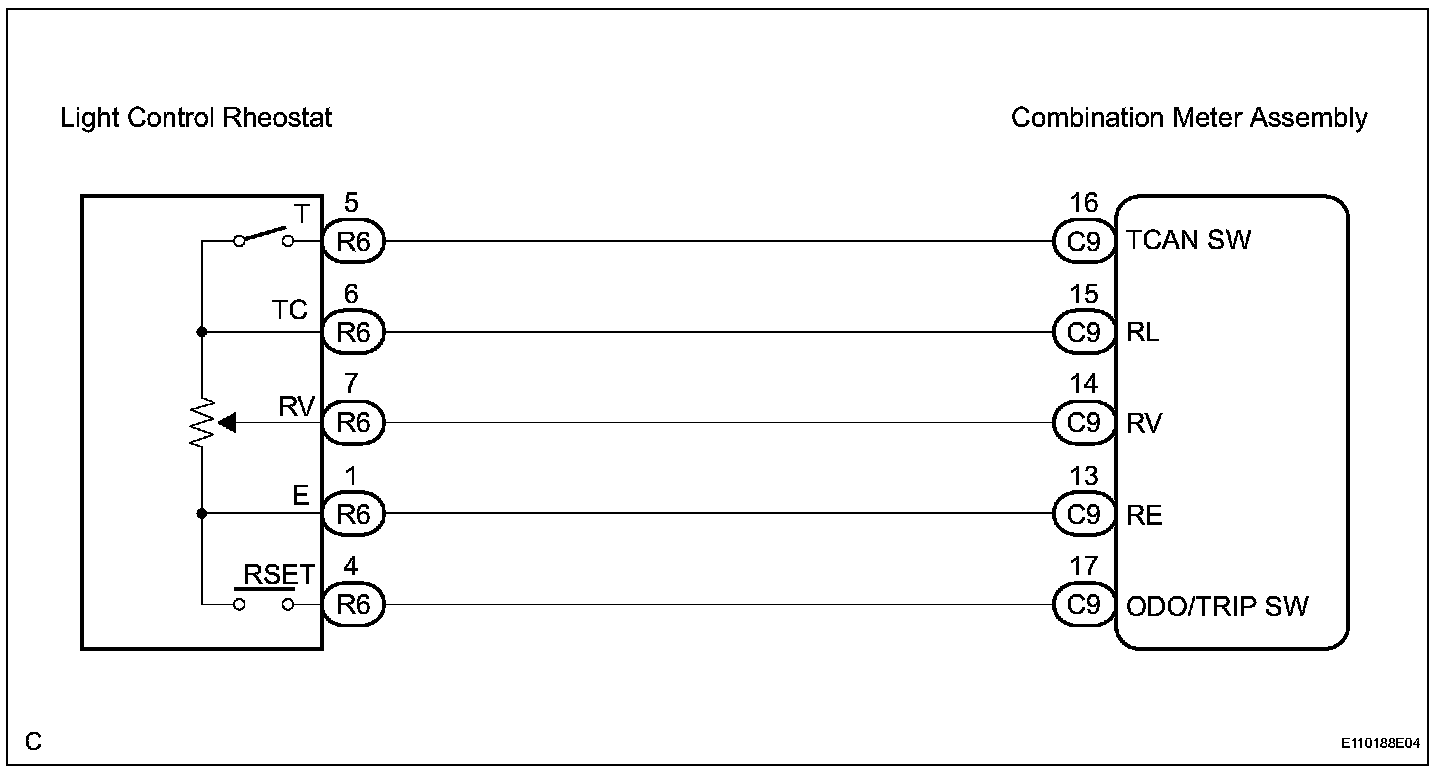

Wiring Diagram:

Step 1:

Step 1 (Continued)-2:

Step 3:

INSPECTION PROCEDURE

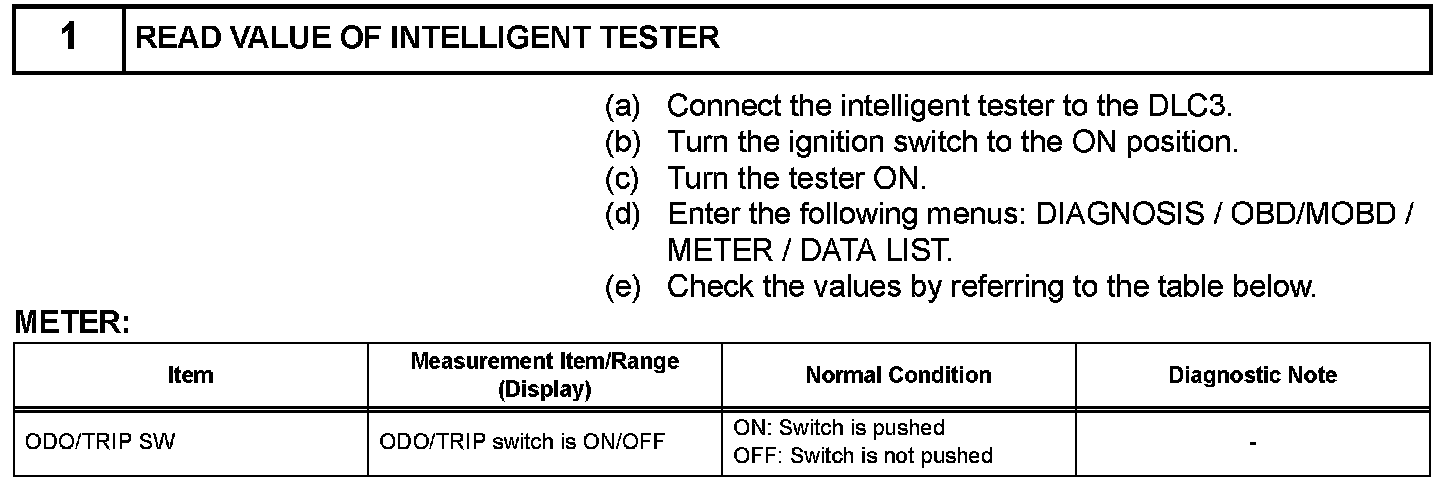

HINT: Start the inspection from step 1 when using the intelligent tester and start from step 2 when not using the intelligent tester.
