Pinout Values and Diagnostic Parameters

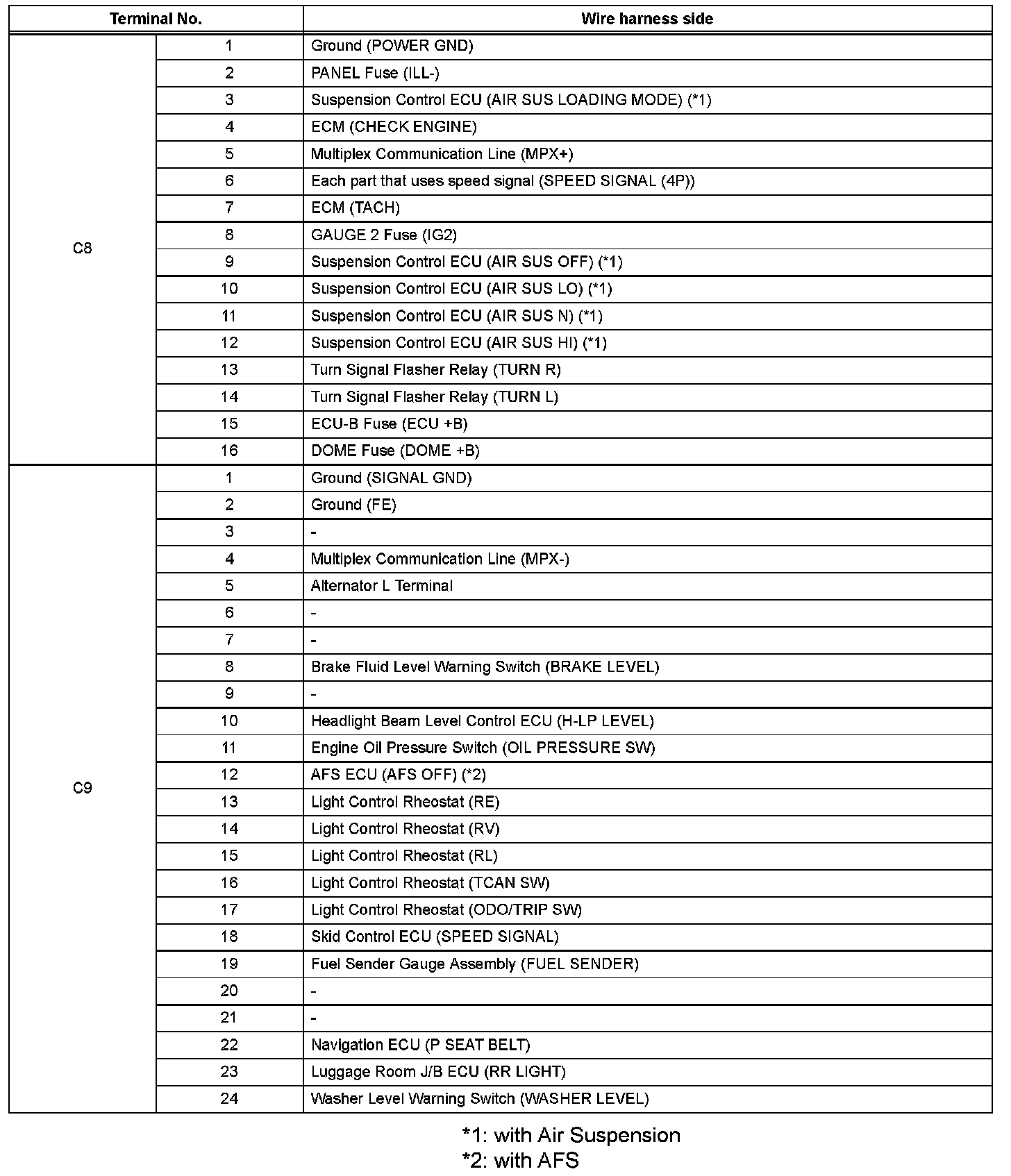

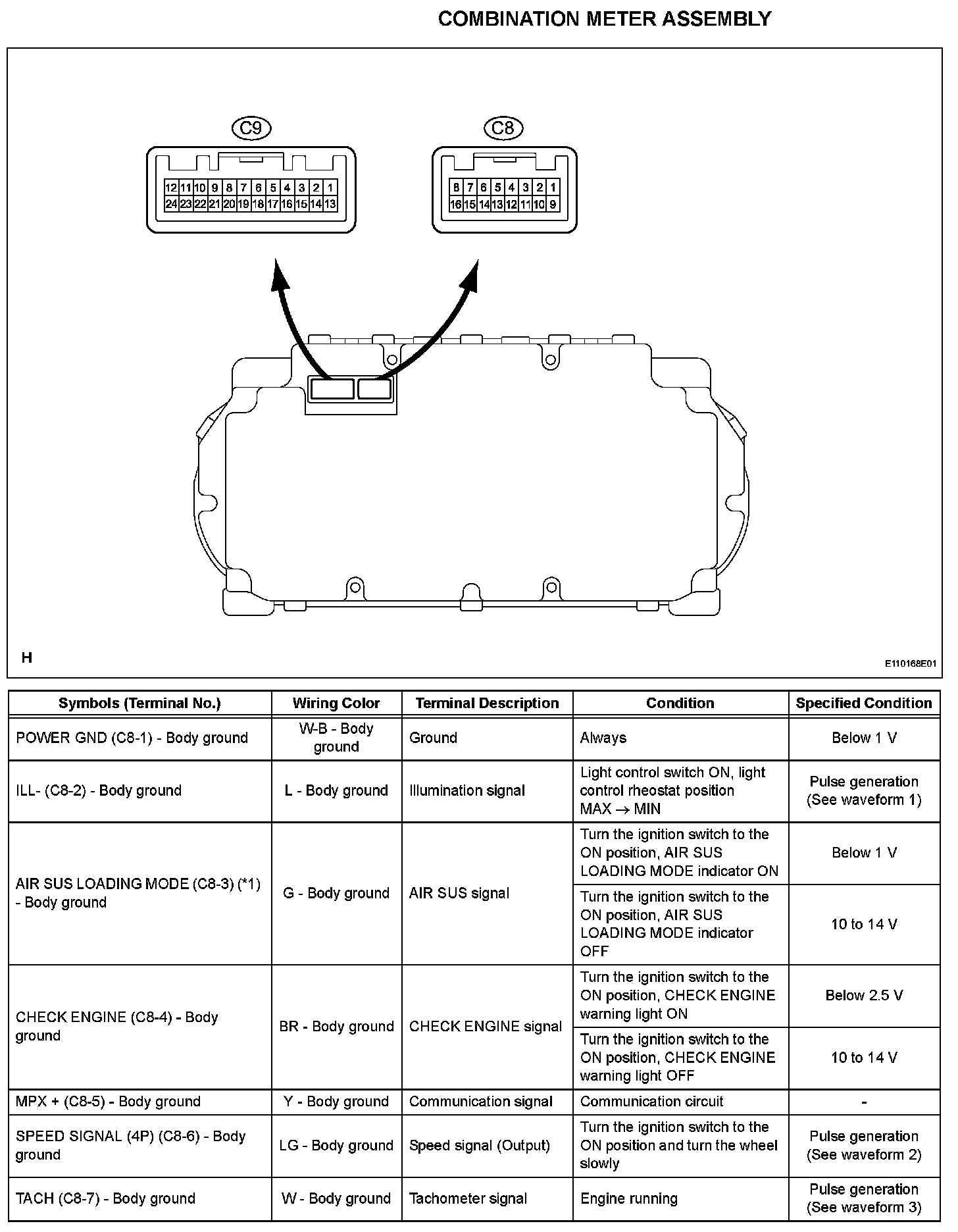

Terminals Of Control Module/Pinouts (Combination Meter Assembly) (Part 1):

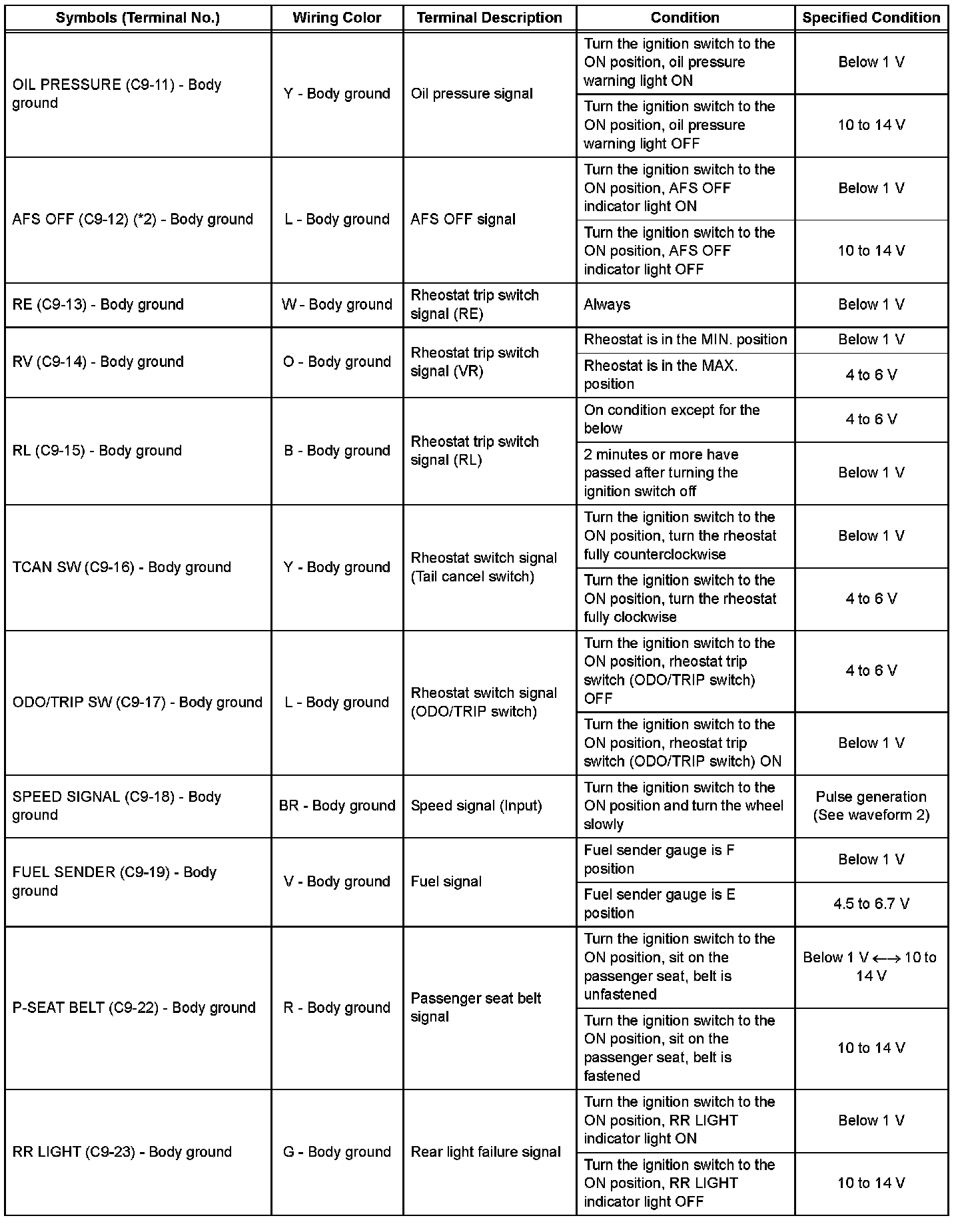

Terminals Of Control Module/Pinouts (Combination Meter Assembly) (Part 2):

Terminals Of Control Module/Pinouts (Combination Meter Assembly) (Part 3):

Terminals Of Control Module/Pinouts (Combination Meter Assembly) (Part 4):

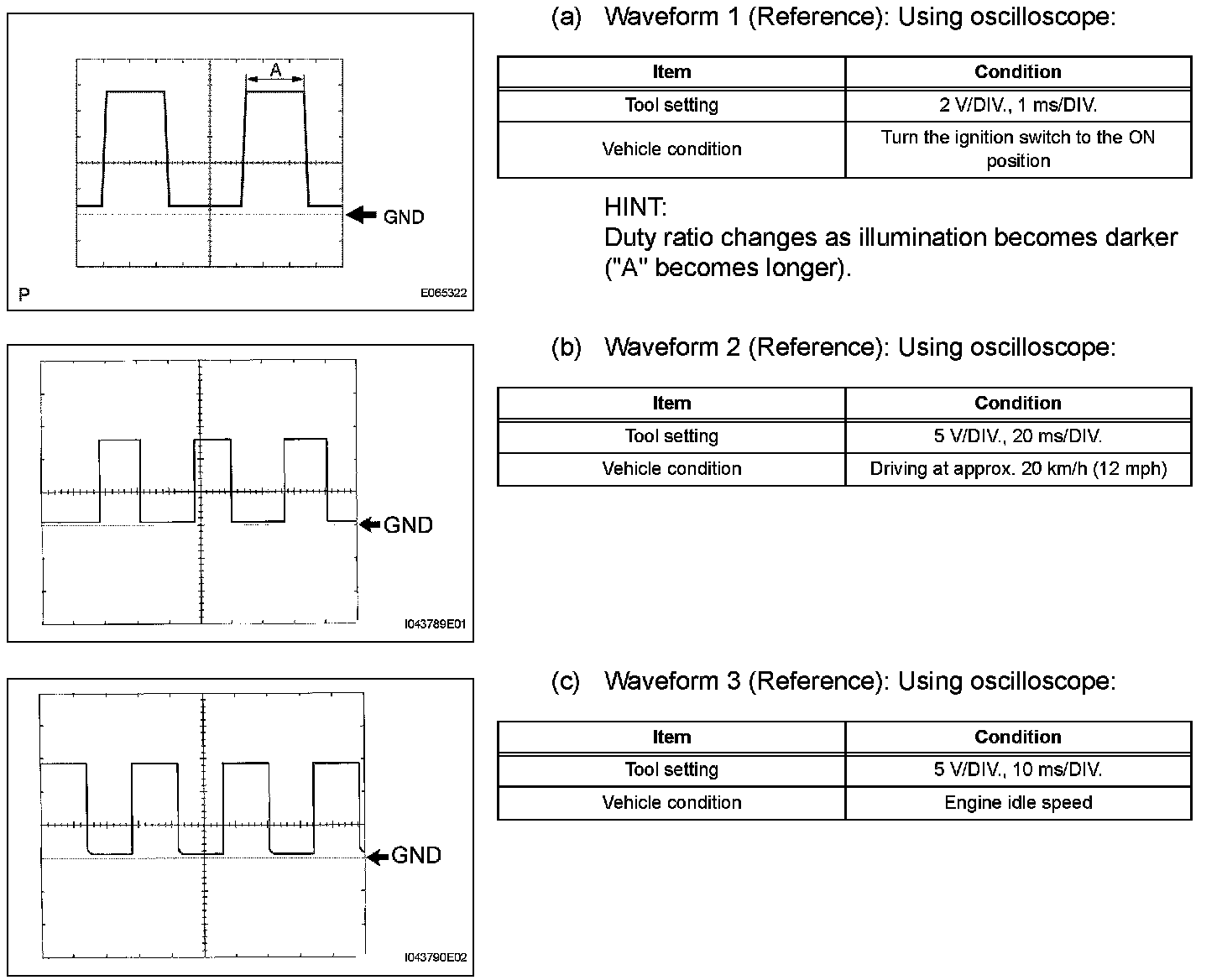

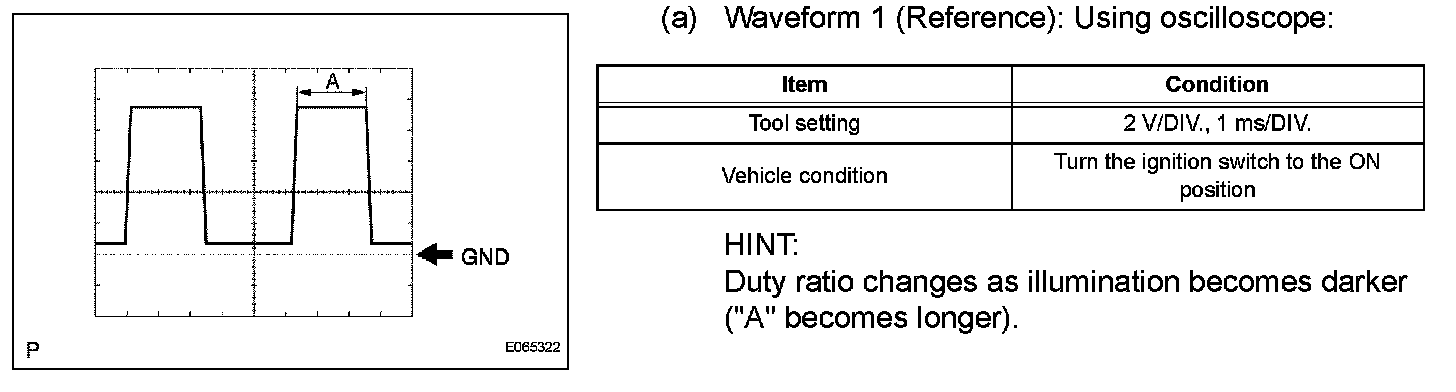

Oscilloscope Waveforms:

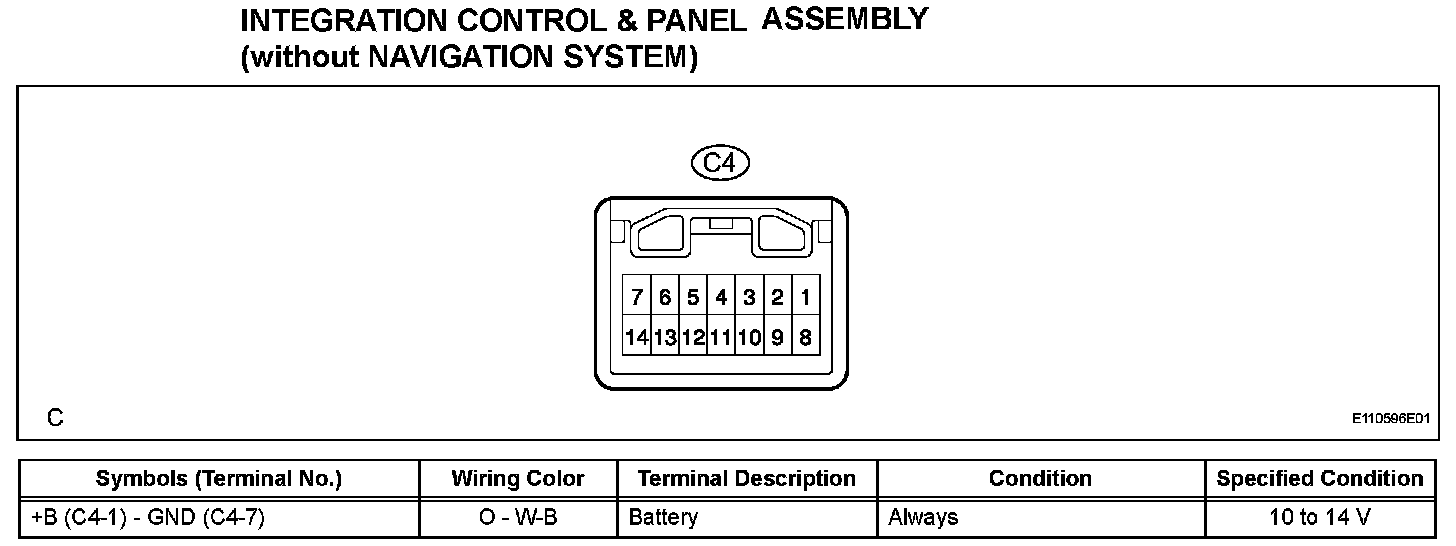

Terminals Of Control Module/Pinouts (Integration Control & Panel Assembly [without Navigation System]) (Part 1):

Terminals Of Control Module/Pinouts (Integration Control & Panel Assembly [without Navigation System]) (Part 2):

Oscilloscope Waveform:

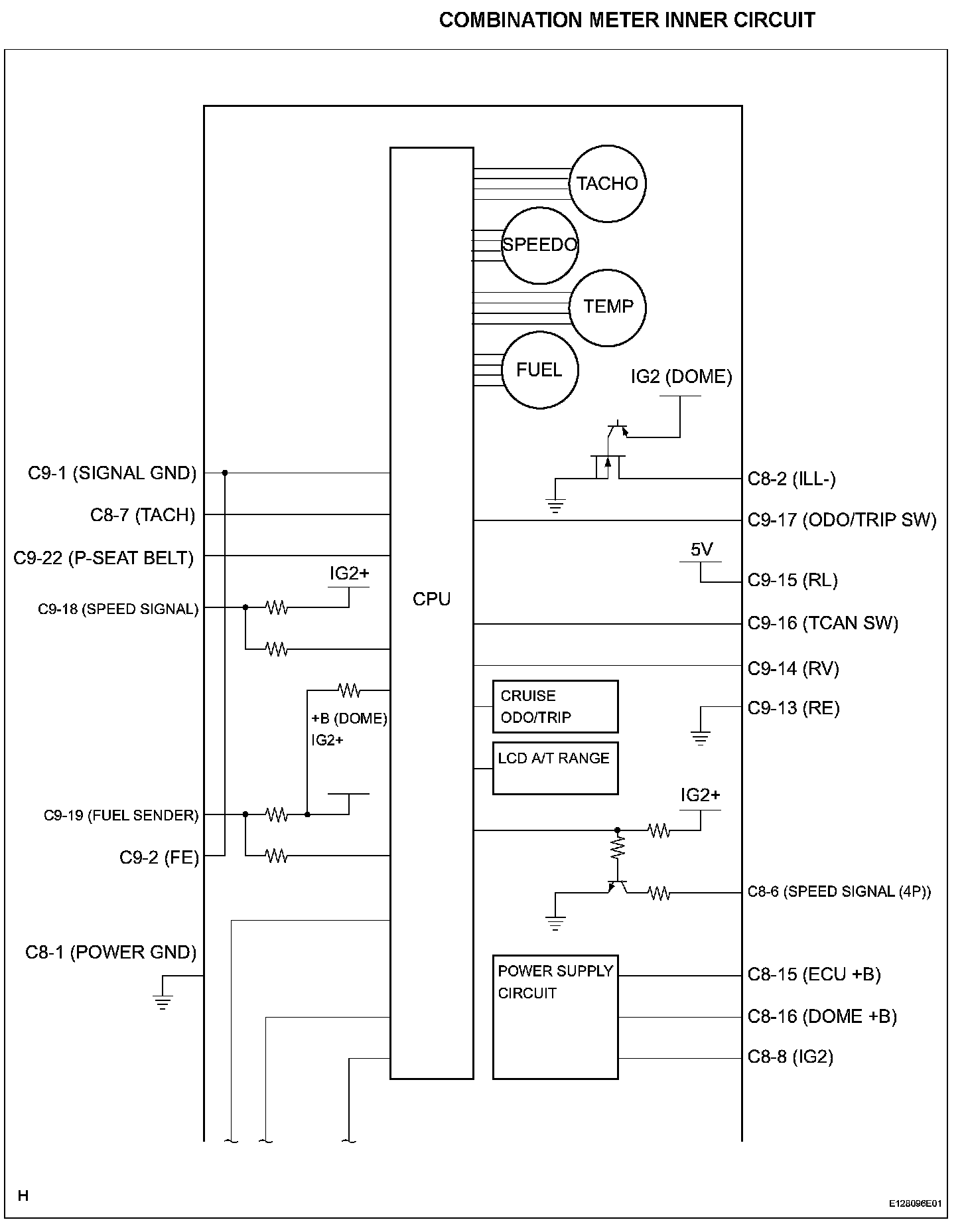

Terminals Of Control Module/Pinouts (Combination Meter Inner Circuit) (Part 1):

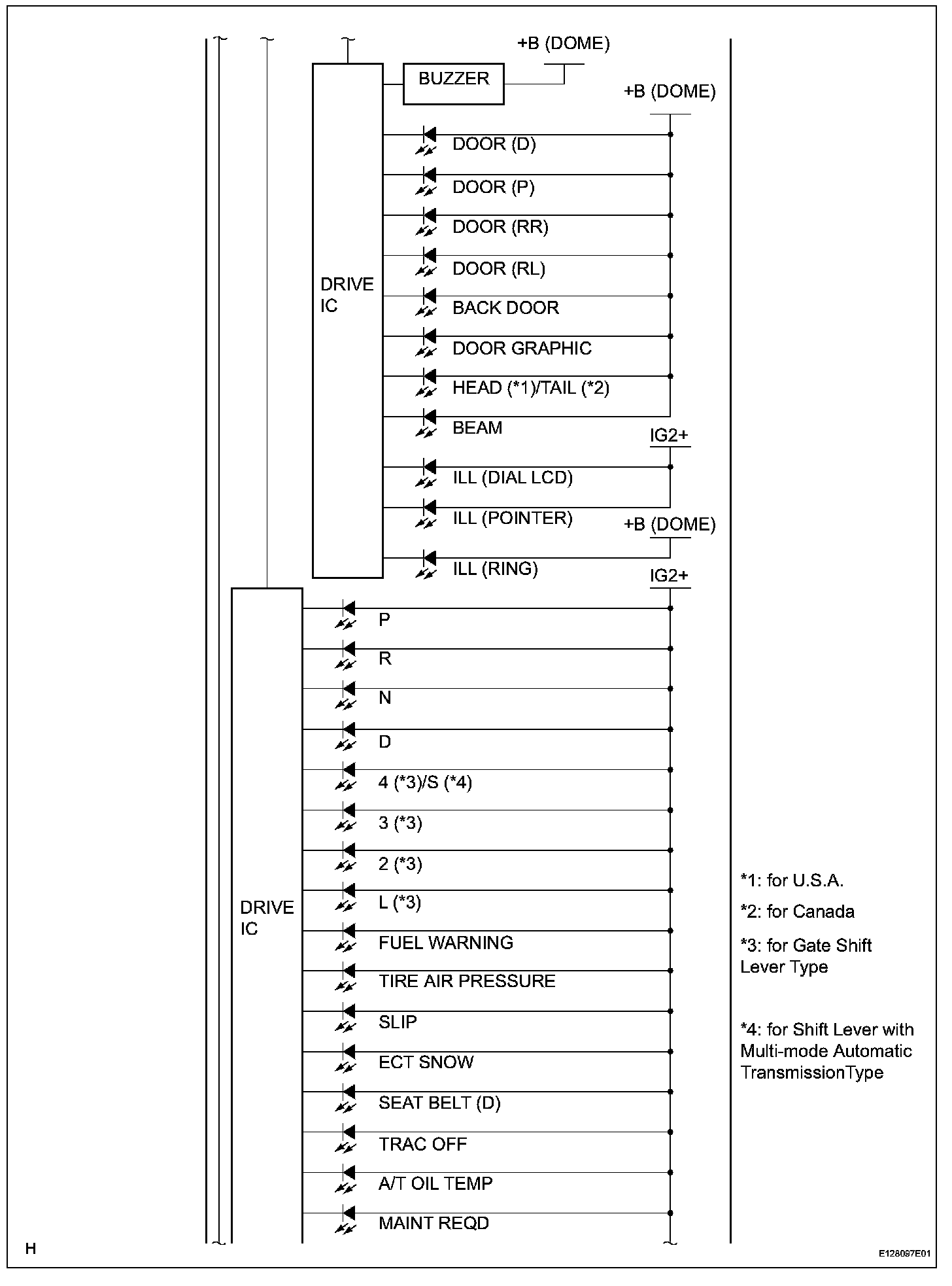

Terminals Of Control Module/Pinouts (Combination Meter Inner Circuit) (Part 2):

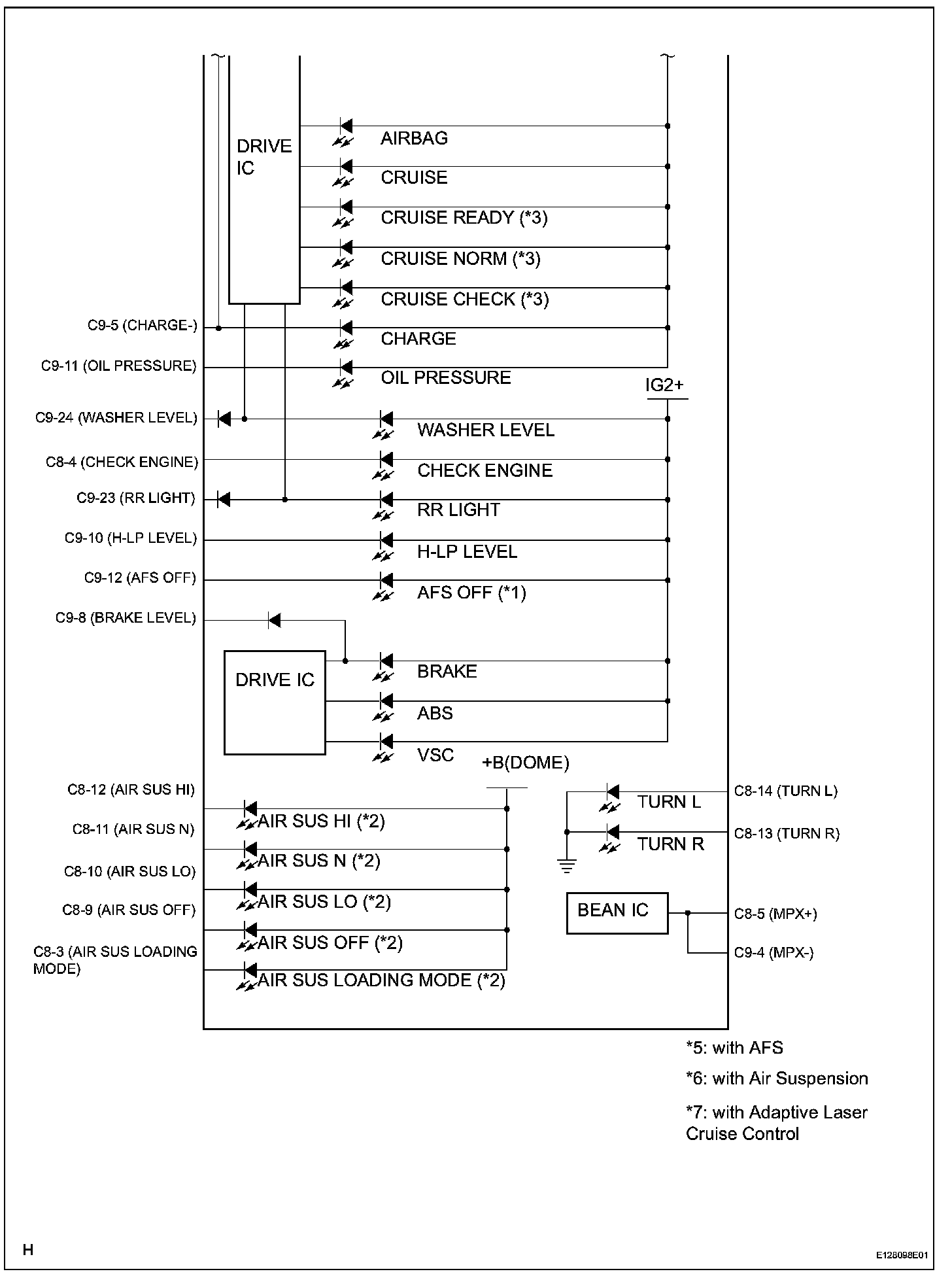

Terminals Of Control Module/Pinouts (Combination Meter Inner Circuit) (Part 3):

Terminals Of Control Module/Pinouts (Combination Meter Inner Circuit) (Part 4):
